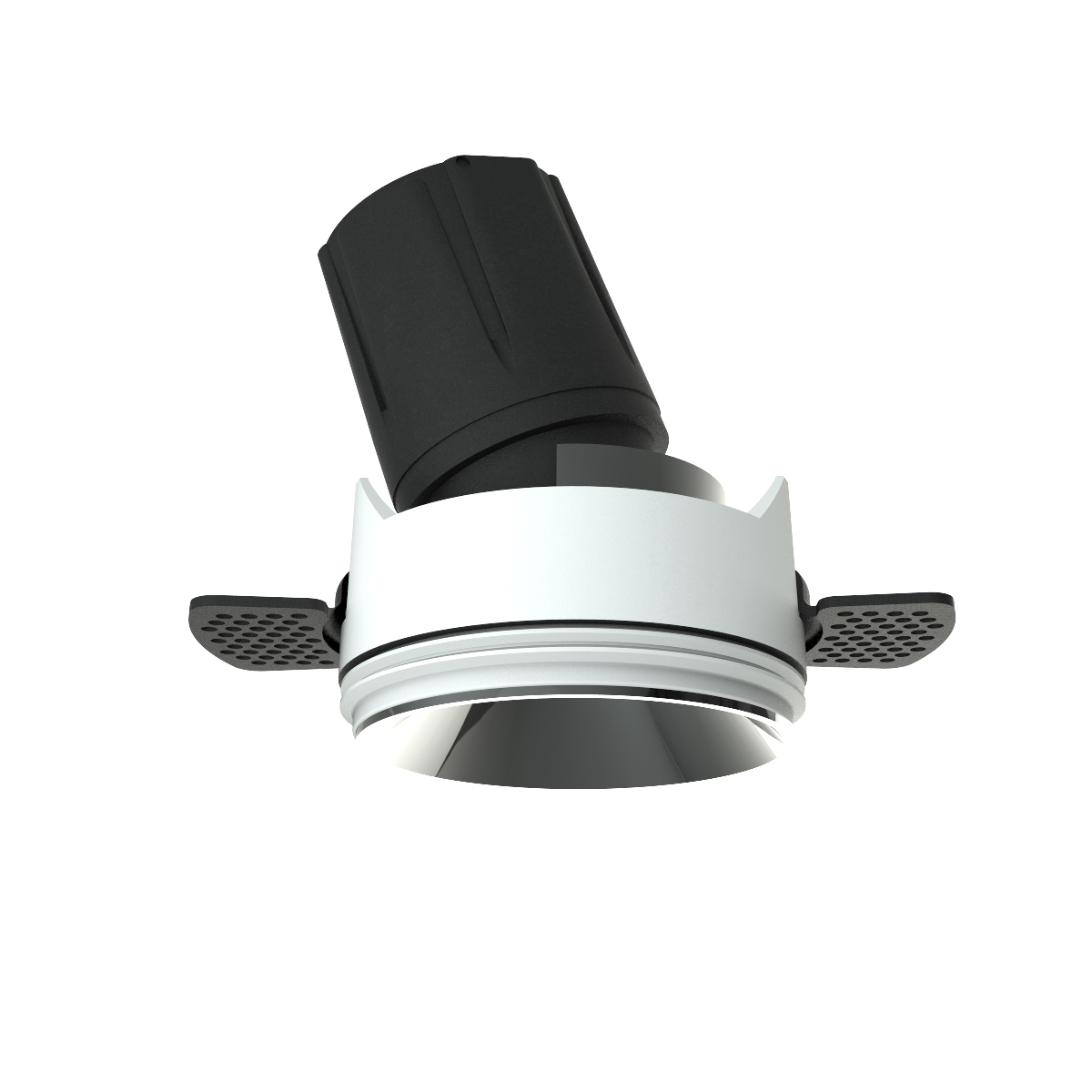

D88/AL105-3M927DB-LW
Product Info
Item code
AXEL D88 / D88/AL105-3M927DB-LW
Category
Downlight
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
ceiling recessed
Body
Reflector in technopolymer. Heat sink and frame in die-cast aluminium.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005
Dimensions
Total device height (mm)
140
D: Total diameter device (mm)
110
Optical System
Beam
diffuse
Emission
direct
Adjustable
Yes
Tilt
0°-30°
Horizontal rotation
0°-360°
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross19
UGR longitudinal19
CBCP1297cd
Sources
MacAdam
Step 2
Output Flux
1850 lm
Source type
LED
System power
20W
Temperature Colour
2700K CRI>90
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC10008
Driver ON-OFF IP20 20W. Setting 36V 500mA
MEC10010
Driver DALI-2 IP20 20W. Setting 36V 500mA
Optical
D88/DA-105/110-AGR
ADJ Ø105mm/110mm REFLECTOR-SAND GOLD
D88/DA-105/110-ASR
ADJ Ø105mm/110mm REFLECTOR-MATT SILVER
D88/DA-105/110-ABR
ADJ Ø105mm/110mm REFLECTOR-BLACK
D88/DA-105/110-AWR
ADJ Ø105mm/110mm REFLECTOR-WHITE
