D88/FT80-3M927WW-LW
Product Info
Item code
AXEL D88 / D88/FT80-3M927WW-LW
Category
Downlight
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
ceiling recessed
Body
Reflector in technopolymer. Heat sink and frame in die-cast aluminium.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005
Dimensions
Total device height (mm)
86
D: Total diameter device (mm)
90
Optical System

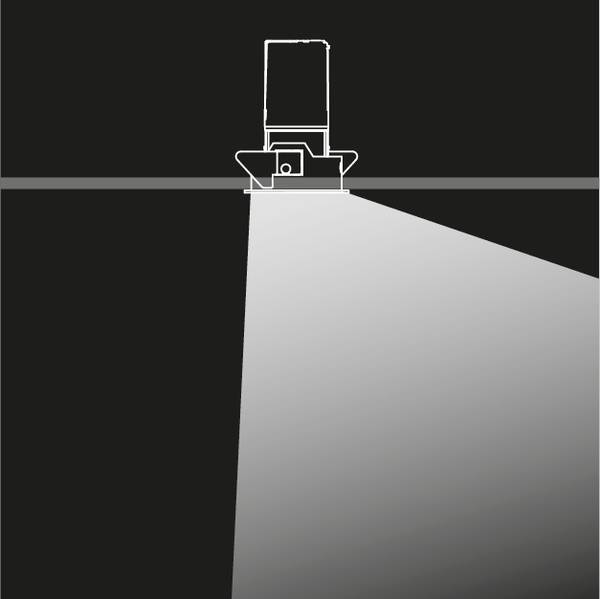

Beam
wall washer
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross25
UGR longitudinal35
CBCP788cd
Sources
MacAdam
Step 2
Output Flux
640 lm
Source type
LED
System power
12W
Temperature Colour
2700K CRI>90
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC10006
Driver ON-OFF IP20 12W. Setting 36V 300mA
MEC10004
Driver DALI-2 IP20 12W. Setting 36V 300mA
MEC10050
Driver PHASE-CUT IP20 12W. Setting 36V 300mA
Optical
D88/DA-80/85-FGR
FIXED Ø80mm/85mm REFLECTOR-SAND GOLD
D88/DA-80/85-FSR
FIXED Ø80mm/85mm REFLECTOR-MATT SILVER
D88/DA-80/85-FBR
FIXED Ø80mm/85mm REFLECTOR-BLACK
D88/DA-80/85-FWR
FIXED Ø80mm/85mm REFLECTOR-WHITE
