AXEL LINE

  • Request Information
AXEL L is the linear evolution of SLED (patented modular LED system by Castaldi Lighting) for individual recessed ceiling fitting. Its compact dimensions (SLED L only 3 cm wide) and high performance make it the ideal solution for discreet lighting. Thanks to various emissions and above all the UGR-controlled DARK optic (<19), it can light all kinds of spaces, including offices with video terminals. Also available with louvre that completely conceals the light source. In trimless or frame versions, installation is extremely simple, with a separate and interchangeable light fixture.

products (6)

20

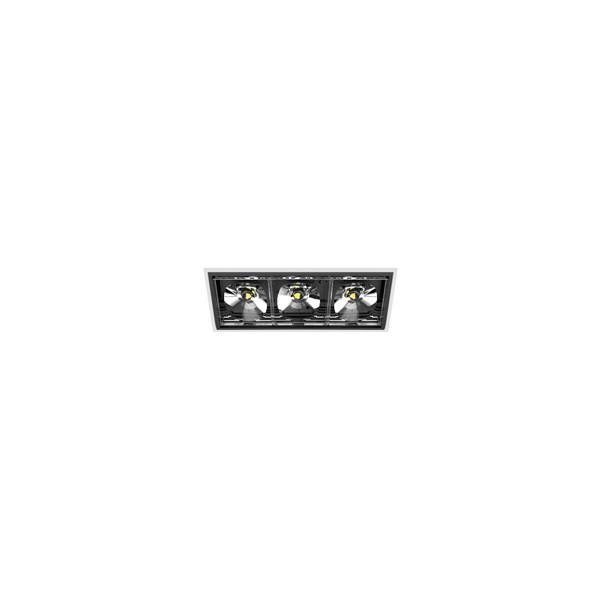

AXEL LINE 3 LED TRIMLESS
AXEL LINE 3 LED TRIMLESS ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TREL3DK93-DNSLED LINE7W670 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3DKL93-DNSLED LINE7W503 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3WS93-DNSLED LINE7W435 lm3000K CRI>90wall washerON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3SBL94-DNSLED LINE7W517 lm4000K CRI>90medium + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3DK94-DNSLED LINE7W766 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3DKL94-DNSLED LINE7W575 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3WS94-DNSLED LINE7W544 lm4000K CRI>90wall washerON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3NBL93-DNSLED LINE7W453 lm3000K CRI>90narrow + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3NBL94-DNSLED LINE7W517 lm4000K CRI>90narrow + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
3100-TREL3SBL93-DNSLED LINE7W453 lm3000K CRI>90medium + louverON-OFF.L: 113mm, A: 47mm, H: 67mm
AXEL LINE 3 LED TRIMLESS DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TRDD3DK93-DNSLED LINE7W670 lm3000K CRI>90diffuse UGR<19DALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3DKL93-DNSLED LINE7W503 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3WS93-DNSLED LINE7W435 lm3000K CRI>90wall washerDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3SBL94-DNSLED LINE7W517 lm4000K CRI>90medium + louverDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3DK94-DNSLED LINE7W766 lm4000K CRI>90diffuse UGR<19DALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3DKL94-DNSLED LINE7W575 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3WS94-DNSLED LINE7W544 lm4000K CRI>90wall washerDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3NBL93-DNSLED LINE7W453 lm3000K CRI>90narrow + louverDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3NBL94-DNSLED LINE7W517 lm4000K CRI>90narrow + louverDALI.L: 113mm, A: 47mm, H: 67mm
3100-TRDD3SBL93-DNSLED LINE7W453 lm3000K CRI>90medium + louverDALI.L: 113mm, A: 47mm, H: 67mm
20

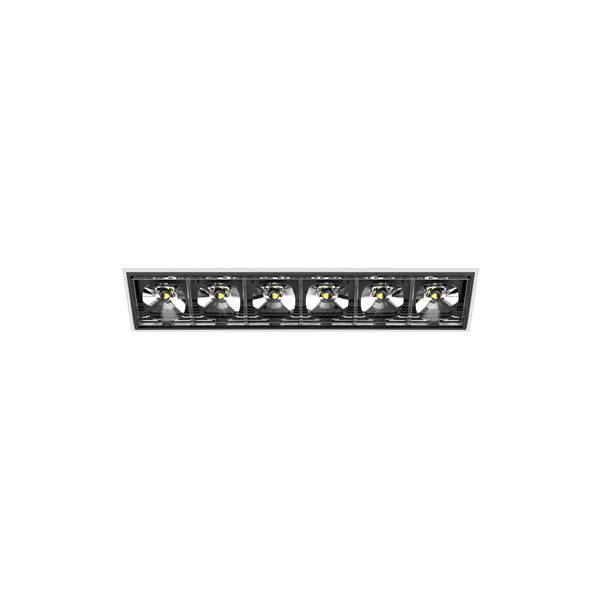

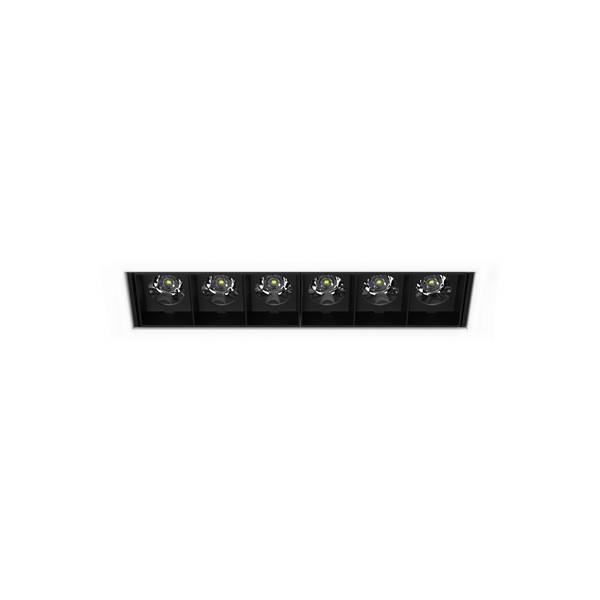

AXEL LINE 6 LED TRIMLESS
AXEL LINE 6 LED TRIMLESS ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TREL6DK93-DNSLED LINE14W1340 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6DKL93-DNSLED LINE14W1005 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6WS93-DNSLED LINE14W870 lm3000K CRI>90wall washerON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6SBL94-DNSLED LINE14W1035 lm4000K CRI>90medium + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6DK94-DNSLED LINE14W1532 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6DKL94-DNSLED LINE14W1149 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6WS94-DNSLED LINE14W1088 lm4000K CRI>90wall washerON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6NBL93-DNSLED LINE14W905 lm3000K CRI>90narrow + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6NBL94-DNSLED LINE14W1035 lm4000K CRI>90narrow + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
3100-TREL6SBL93-DNSLED LINE14W905 lm3000K CRI>90medium + louverON-OFF.L: 206mm, A: 47mm, H: 67mm
AXEL LINE 6 LED TRIMLESS DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TRDD6DK93-DNSLED LINE14W1340 lm3000K CRI>90diffuse UGR<19DALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6DKL93-DNSLED LINE14W1005 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6WS93-DNSLED LINE14W870 lm3000K CRI>90wall washerDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6SBL94-DNSLED LINE14W1035 lm4000K CRI>90medium + louverDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6DK94-DNSLED LINE14W1532 lm4000K CRI>90diffuse UGR<19DALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6DKL94-DNSLED LINE14W1149 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6WS94-DNSLED LINE14W1088 lm4000K CRI>90wall washerDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6NBL93-DNSLED LINE14W905 lm3000K CRI>90narrow + louverDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6NBL94-DNSLED LINE14W1035 lm4000K CRI>90narrow + louverDALI.L: 206mm, A: 47mm, H: 67mm
3100-TRDD6SBL93-DNSLED LINE14W905 lm3000K CRI>90medium + louverDALI.L: 206mm, A: 47mm, H: 67mm
20

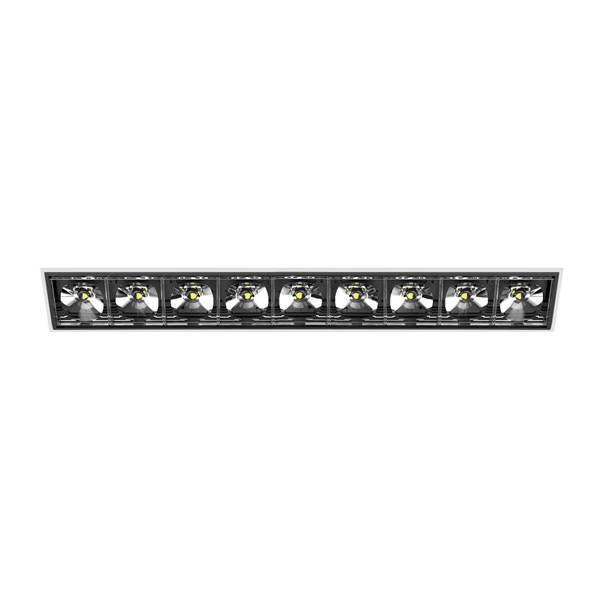

AXEL LINE 9 LED TRIMLESS
AXEL LINE 9 LED TRIMLESS ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TREL9DK93-DNSLED LINE21W2009 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9DKL93-DNSLED LINE21W1507 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9WS93-DNSLED LINE21W1305 lm3000K CRI>90wall washerON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9SBL94-DNSLED LINE21W1551 lm4000K CRI>90medium + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9DK94-DNSLED LINE21W2297 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9DKL94-DNSLED LINE21W1723 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9WS94-DNSLED LINE21W1632 lm4000K CRI>90wall washerON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9NBL93-DNSLED LINE21W1358 lm3000K CRI>90narrow + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9NBL94-DNSLED LINE21W1551 lm4000K CRI>90narrow + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
3100-TREL9SBL93-DNSLED LINE21W1358 lm3000K CRI>90medium + louverON-OFF.L: 300mm, A: 47mm, H: 67mm
AXEL LINE 9 LED TRIMLESS DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-TRDD9DK93-DNSLED LINE21W2009 lm3000K CRI>90diffuse UGR<19DALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9DKL93-DNSLED LINE21W1507 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9WS93-DNSLED LINE21W1305 lm3000K CRI>90wall washerDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9SBL94-DNSLED LINE21W1551 lm4000K CRI>90medium + louverDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9DK94-DNSLED LINE21W2297 lm4000K CRI>90diffuse UGR<19DALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9DKL94-DNSLED LINE21W1723 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9WS94-DNSLED LINE21W1632 lm4000K CRI>90wall washerDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9NBL93-DNSLED LINE21W1358 lm3000K CRI>90narrow + louverDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9NBL94-DNSLED LINE21W1551 lm4000K CRI>90narrow + louverDALI.L: 300mm, A: 47mm, H: 67mm
3100-TRDD9SBL93-DNSLED LINE21W1358 lm3000K CRI>90medium + louverDALI.L: 300mm, A: 47mm, H: 67mm
20

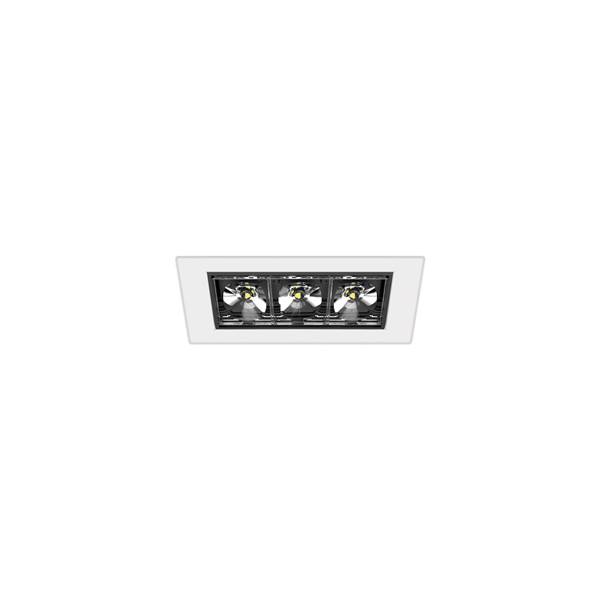

AXEL LINE 3 LED FRAME
AXEL LINE 3 LED FRAME ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FREL3DK93-DNSLED LINE7W670 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3DKL93-DNSLED LINE7W503 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3WS93-DNSLED LINE7W435 lm3000K CRI>90wall washerON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3SBL94-DNSLED LINE7W517 lm4000K CRI>90medium + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3DK94-DNSLED LINE7W766 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3DKL94-DNSLED LINE7W575 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3WS94-DNSLED LINE7W544 lm4000K CRI>90wall washerON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3NBL93-DNSLED LINE7W453 lm3000K CRI>90narrow + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3NBL94-DNSLED LINE7W517 lm4000K CRI>90narrow + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
3100-FREL3SBL93-DNSLED LINE7W453 lm3000K CRI>90medium + louverON-OFF.L: 134mm, A: 58mm, H: 65mm
AXEL LINE 3 LED FRAME DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FRDD3DK93-DNSLED LINE7W670 lm3000K CRI>90diffuse UGR<19DALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3DKL93-DNSLED LINE7W503 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3WS93-DNSLED LINE7W435 lm3000K CRI>90wall washerDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3SBL94-DNSLED LINE7W517 lm4000K CRI>90medium + louverDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3DK94-DNSLED LINE7W766 lm4000K CRI>90diffuse UGR<19DALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3DKL94-DNSLED LINE7W575 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3WS94-DNSLED LINE7W544 lm4000K CRI>90wall washerDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3NBL93-DNSLED LINE7W453 lm3000K CRI>90narrow + louverDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3NBL94-DNSLED LINE7W517 lm4000K CRI>90narrow + louverDALI.L: 134mm, A: 58mm, H: 65mm
3100-FRDD3SBL93-DNSLED LINE7W453 lm3000K CRI>90medium + louverDALI.L: 134mm, A: 58mm, H: 65mm
20

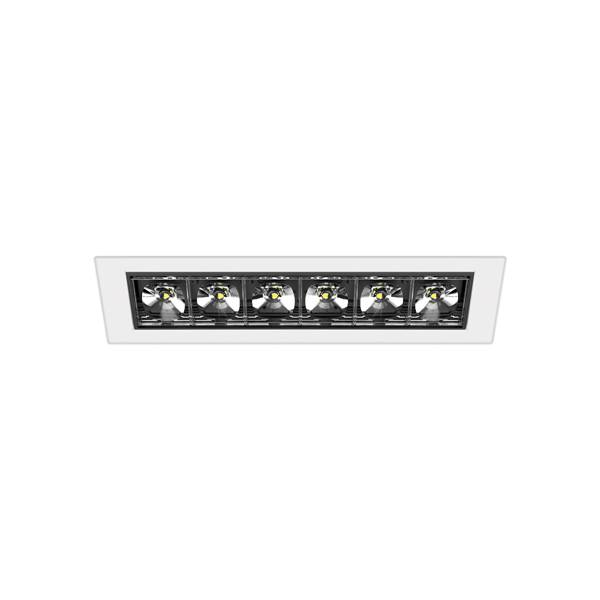

AXEL LINE 6 LED FRAME
AXEL LINE 6 LED FRAME ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FREL6DK93-DNSLED LINE14W1340 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6DKL93-DNSLED LINE14W1005 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6WS93-DNSLED LINE14W870 lm3000K CRI>90wall washerON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6SBL94-DNSLED LINE14W1035 lm4000K CRI>90medium + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6DK94-DNSLED LINE14W1532 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6DKL94-DNSLED LINE14W1149 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6WS94-DNSLED LINE14W1088 lm4000K CRI>90wall washerON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6NBL93-DNSLED LINE14W905 lm3000K CRI>90narrow + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6NBL94-DNSLED LINE14W1035 lm4000K CRI>90narrow + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
3100-FREL6SBL93-DNSLED LINE14W905 lm3000K CRI>90medium + louverON-OFF.L: 227mm, A: 58mm, H: 65mm
AXEL LINE 6 LED FRAME DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FRDD6DK93-DNSLED LINE14W1340 lm3000K CRI>90diffuse UGR<19DALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6DKL93-DNSLED LINE14W1005 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6WS93-DNSLED LINE14W870 lm3000K CRI>90wall washerDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6SBL94-DNSLED LINE14W1035 lm4000K CRI>90medium + louverDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6DK94-DNSLED LINE14W1532 lm4000K CRI>90diffuse UGR<19DALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6DKL94-DNSLED LINE14W1149 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6WS94-DNSLED LINE14W1088 lm4000K CRI>90wall washerDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6NBL93-DNSLED LINE14W905 lm3000K CRI>90narrow + louverDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6NBL94-DNSLED LINE14W1035 lm4000K CRI>90narrow + louverDALI.L: 227mm, A: 58mm, H: 65mm
3100-FRDD6SBL93-DNSLED LINE14W905 lm3000K CRI>90medium + louverDALI.L: 227mm, A: 58mm, H: 65mm
20

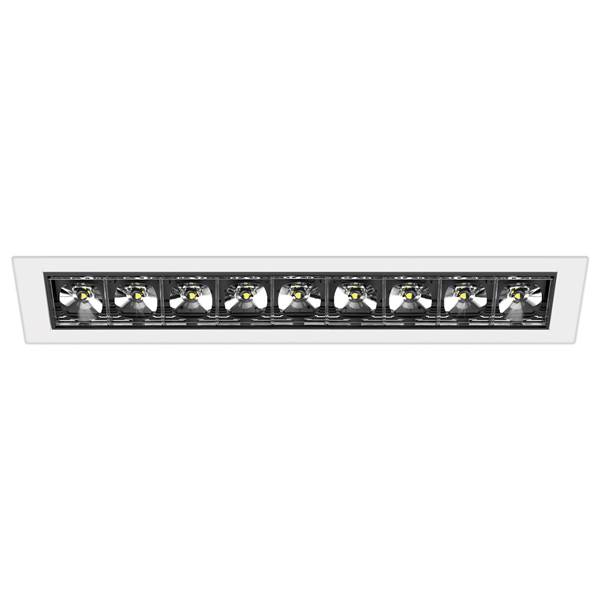

AXEL LINE 9 LED FRAME
AXEL LINE 9 LED FRAME ON-OFF
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FREL9DK93-DNSLED LINE21W2009 lm3000K CRI>90diffuse UGR<19ON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9DKL93-DNSLED LINE21W1507 lm3000K CRI>90diffuse UGR<19 + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9WS93-DNSLED LINE21W1305 lm3000K CRI>90wall washerON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9SBL94-DNSLED LINE21W1551 lm4000K CRI>90medium + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9DK94-DNSLED LINE21W2297 lm4000K CRI>90diffuse UGR<19ON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9DKL94-DNSLED LINE21W1723 lm4000K CRI>90diffuse UGR<19 + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9WS94-DNSLED LINE21W1632 lm4000K CRI>90wall washerON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9NBL93-DNSLED LINE21W1358 lm3000K CRI>90narrow + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9NBL94-DNSLED LINE21W1551 lm4000K CRI>90narrow + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
3100-FREL9SBL93-DNSLED LINE21W1358 lm3000K CRI>90medium + louverON-OFF.L: 320mm, A: 58mm, H: 65mm
AXEL LINE 9 LED FRAME DALI
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
3100-FRDD9DK93-DNSLED LINE21W2009 lm3000K CRI>90diffuse UGR<19DALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9DKL93-DNSLED LINE21W1507 lm3000K CRI>90diffuse UGR<19 + louverDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9WS93-DNSLED LINE21W1305 lm3000K CRI>90wall washerDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9SBL94-DNSLED LINE21W1551 lm4000K CRI>90medium + louverDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9DK94-DNSLED LINE21W2297 lm4000K CRI>90diffuse UGR<19DALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9DKL94-DNSLED LINE21W1723 lm4000K CRI>90diffuse UGR<19 + louverDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9WS94-DNSLED LINE21W1632 lm4000K CRI>90wall washerDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9NBL93-DNSLED LINE21W1358 lm3000K CRI>90narrow + louverDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9NBL94-DNSLED LINE21W1551 lm4000K CRI>90narrow + louverDALI.L: 320mm, A: 58mm, H: 65mm
3100-FRDD9SBL93-DNSLED LINE21W1358 lm3000K CRI>90medium + louverDALI.L: 320mm, A: 58mm, H: 65mm
