4100-DD6SBL94-DN
Product Info
Item code

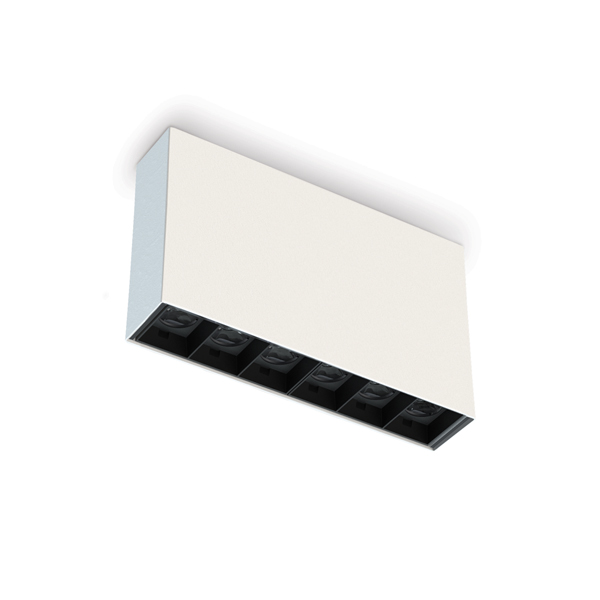

AXEL LINE CEILING / 4100-DD6SBL94-DN
Category
Ceiling, Ceiling
Environments
wellness, hallway, conference hall, art and culture, office, leisure areas, retail areas, study areas
Mounting type
ceiling surface
Body
Composite structure made of extruded aluminium and laser-shaped matching steel parts, powder-coated.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. 1.5mm² LN terminal block. DALI dimmable electronic ballast.
Option colors
DN | embossed white, BE | embossed black

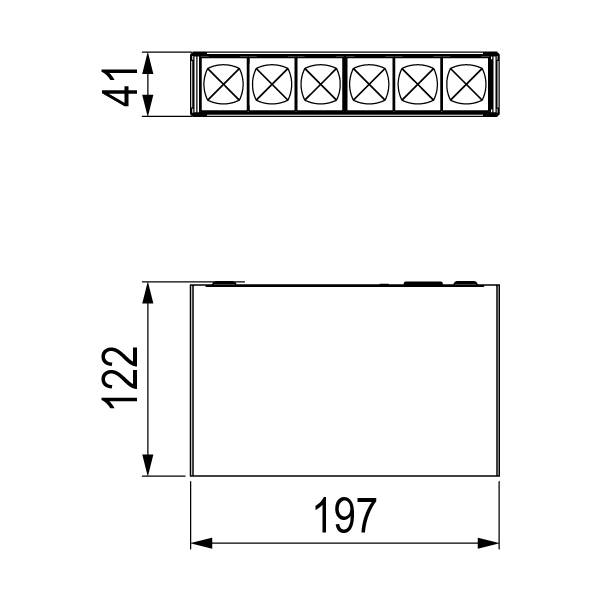

Dimensions
Total device height (mm)
122
Total device width (mm)
41
Total device length (mm)
197
Optical System
Optical System
SLED LINE optical system with UV resistant PC lenses and louver.
Beam
medium + louver
Emission
direct
Adjustable
No
Photometrics
Sources
MacAdam
Step 3
Output Flux
1035 lm
Source
6 LED
Source type
SLED LINE
System power
14W
Temperature Colour
4000K CRI>90
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
50.000h L90B10 (Ta=25°C)
Mounting ballast type
Independent
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
