D58/W2-LWWB-AL
Product Info
Item code
BOX D58 / D58/W2-LWWB-AL
Category
Projectors, Ceiling, Street light, Wall mounted
Environments
urban landscape, street lighting, façades and architectural works, wellness, hallway, industrial areas, places of worship
Mounting type
surface
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish

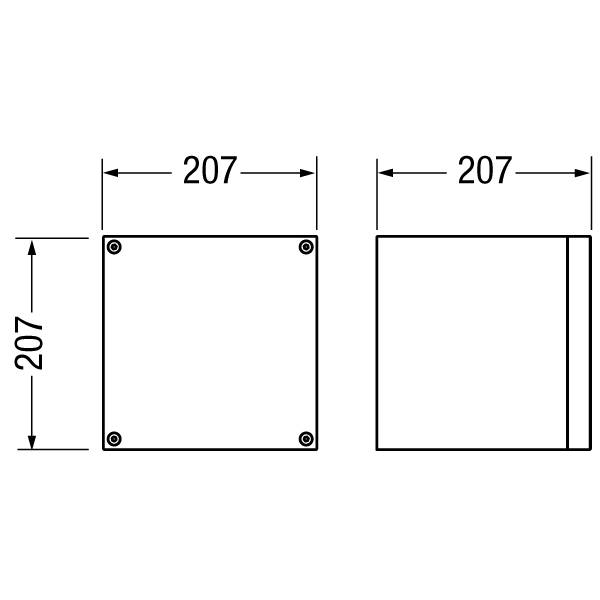

Dimensions
Total device width (mm)
207
Total device length (mm)
207
Weight (kg)
2.7
Volume piece packed (m³)
0.014
Optical System
Optical System
Safety tempered glass.
Beam
diffuse
Emission
double emission
Adjustable
No

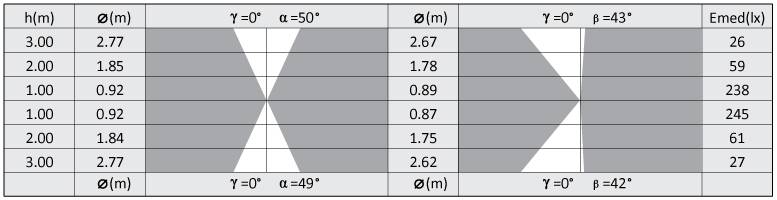

Photometrics
Sources
MacAdam
Step 3
Output Flux
467 lm
Source type
LED
System power
28,3W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
50.000h L80B20 (Ta=25°C)
Line input
Use only (EN 60598-1) cable type H07RN-F with diameter between 7 and 10mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
