3400-DICCDW-DN
Product Info
Item code
DAY / 3400-DICCDW-DN
Category
Downlight, Modular ceiling recessed, Downlight, Modular ceiling recessed
Environments
office, retail areas, study areas
Mounting type
on structure
Body
Housing made of brake-formed electrically welded steel plate, powder-coated.
Painting
Powder painting after passivation.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. 2.5mm² LTN terminal block. Dimmable electronic ballast compatible with CASAMBI bluetooth system.
Standard Colour
DN | embossed white

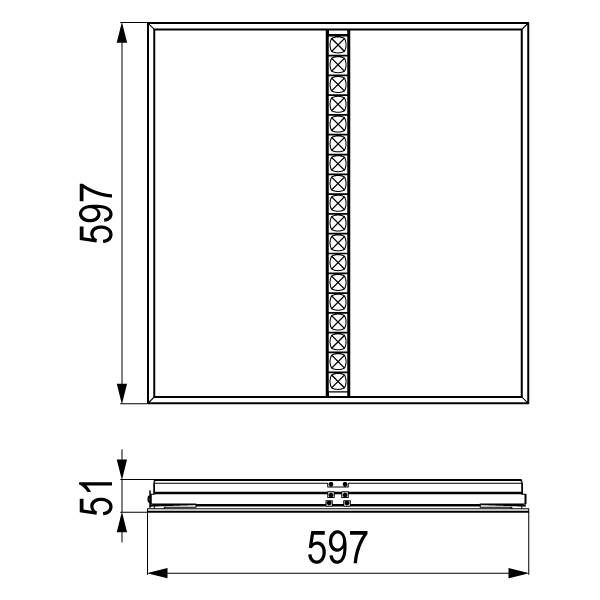

Dimensions
Total device height (mm)
51
Total device width (mm)
597
Total device length (mm)
597
Weight (kg)
8
Optical System
Optical System
SLED optical system with UV resistant PC lenses.
Beam
diffuse
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross18.3
UGR longitudinal18.3
Sources
MacAdam
Step 3
Output Flux
3938 lm
Source type
SLED LINE
System power
44W
Temperature Colour
2700K-6500K
Electrical
Ballast type
CASAMBI Bluetooth.
Frequency
50-60Hz
Lifetime
50.000h L90B10 (Ta=25°C)
Mounting ballast type
Independent
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
3400-K001
DAY - Remote box with backup battery for CASAMBI.
