3402-DIDDDW-DN
Product Info
Item code
DAY / 3402-DIDDDW-DN
Category
Downlight, Modular ceiling recessed, Downlight, Modular ceiling recessed
Environments
office, retail areas, study areas
Mounting type
on structure
Body
Housing made of brake-formed electrically welded steel plate, powder-coated.
Painting
Powder painting after passivation.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. 2.5mm² LTN terminal block. DALI dimmable electronic ballast.
Standard Colour
DN | embossed white

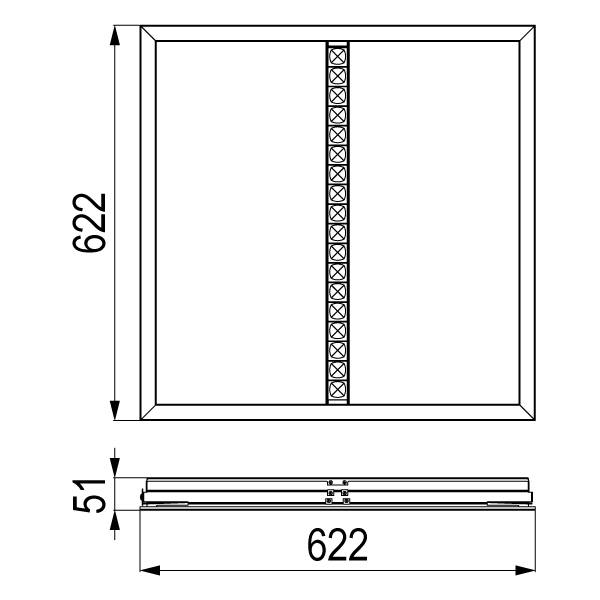

Dimensions
Total device height (mm)
51
Total device width (mm)
622
Total device length (mm)
622
Weight (kg)
8

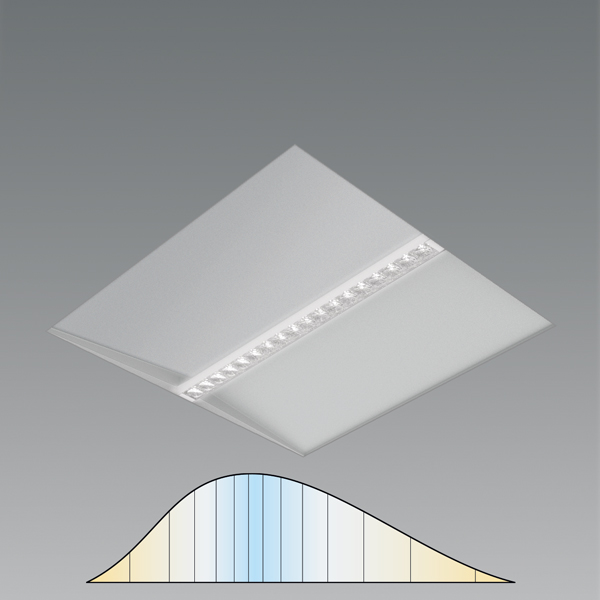

Optical System
Optical System
SLED LINE optical system with UV resistant PC lenses for direct emission. Opal polycarbonate diffuser for reflected emission.
Beam
diffuse
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross18.3
UGR longitudinal18.3
Sources
MacAdam
Step 3
Output Flux
3938 lm
Source type
SLED LINE
System power
44W
Temperature Colour
2700K-6500K
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
50.000h L90B10 (Ta=25°C)
Mounting ballast type
Independent
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
