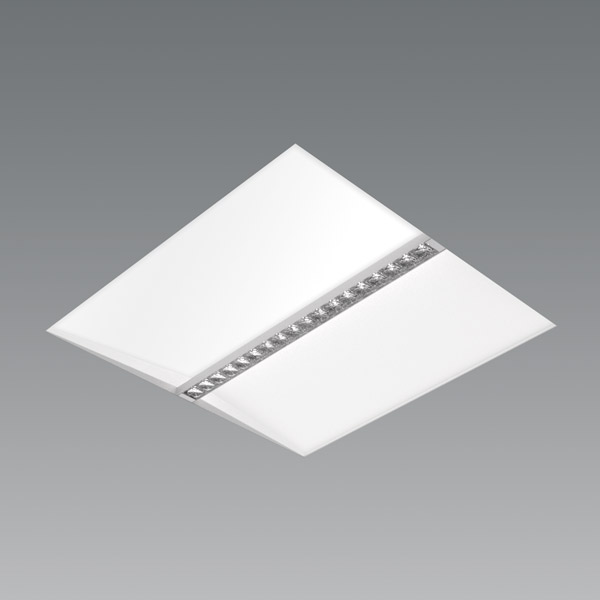

3402-DREL93-DN
Product Info
Item code
DAY / 3402-DREL93-DN
Category
Downlight, Modular ceiling recessed, Downlight, Modular ceiling recessed
Environments
office, retail areas, study areas
Mounting type
on structure
Body
Housing made of brake-formed electrically welded steel plate, powder-coated.
Painting
Powder painting after passivation.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. 2.5mm² LTN terminal block. Electronic ballast. Single switch.
Standard Colour
DN | embossed white
Dimensions
Total device height (mm)
51
Total device width (mm)
622
Total device length (mm)
622
Weight (kg)
8
Optical System
Optical System
SLED LINE optical system with UV resistant PC lenses for direct emission. Opal polycarbonate diffuser for reflected emission.
Beam
diffuse
Emission
direct reflected
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross16
UGR longitudinal16
Sources
MacAdam
Step 3
Output Flux
3744 lm
Source type
SLED LINE + LED
System power
55W
Temperature Colour
3000K CRI>90
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
50.000h L90B10 (Ta=25°C)
Mounting ballast type
Independent
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
