D20/T1-2LWW-AL
Product Info
Item code
DUETTO D20 / D20/T1-2LWW-AL
Category
Wall mounted
Environments
urban landscape, street lighting, façades and architectural works, places of worship
Mounting type
surface
Body
Control gear box in die-cast, corrosion resistant, aluminium. Extruded aluminium cylinder.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish

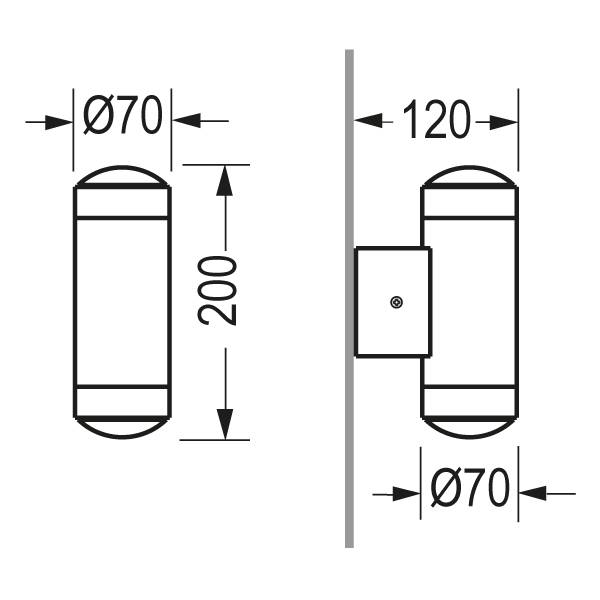

Dimensions
Total device height (mm)
200
Weight (kg)
1.3
D: Total diameter device (mm)
70
Volume piece packed (m³)
0.005
Optical System
Optical System
Optical system with plane convex lenses.
Beam
decorative
Emission
double emission
Adjustable
Yes
Sources
MacAdam
Step 2
Output Flux
256 lm
Source type
LED
System power
6W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cable.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
