D20C/T2-83-MB-AL
Product Info
Item code
DUETTO D20 / D20C/T2-83-MB-AL
Category
Ceiling
Environments
façades and architectural works, hallway, conference hall, art and culture, leisure areas, places of worship
Mounting type
surface
Body
Extruded aluminium cylinder.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish
Dimensions
Total device height (mm)
235
Weight (kg)
2.9
D: Total diameter device (mm)
140
Volume piece packed (m³)
0.008
Included Accessories
Electrical
- Fast IP68 connector 1bar (10m-1h) for cable Ø7-12mm - 3x1.5mm (Cod. ACS/CR1).
Optical System
Diffuser
Tempered safety glass - 6 mm thickness, mechanical and thermal shock resistant.
Optical System
PC with aluminium coating reflector.
Beam
wide
Emission
direct
Adjustable
No

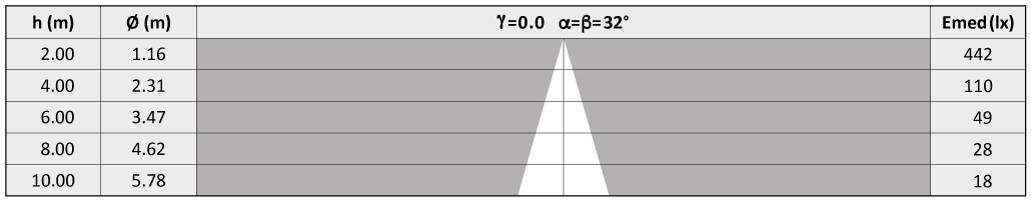

Photometrics
Sources
MacAdam
Step 2
Output Flux
1300 lm
Source type
LED COB
System power
14W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cable.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Optical
D20/LD
For models D20 duetto/T2. Diffused beam lens.
D20/LE
For models D20 duetto/T2. Elliptical beam lens.
D20C/T2-HL
Honeycomb anti-glare louver for DUETTO C/T2.
