D91/C65-3H927ZB-LW
Product Info
Item code
EIDOS CEILING D91/C / D91/C65-3H927ZB-LW
Category
Projectors
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
ceiling surface
Body
Body and base in aluminium. Heat sink, joint and frame in die-cast aluminium.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005

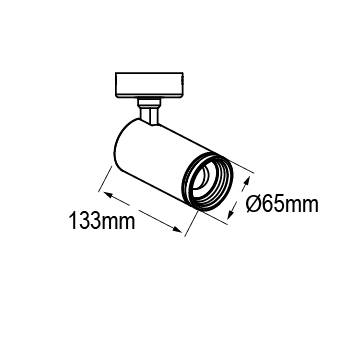

Dimensions
Total device height (mm)
133
D: Total diameter device (mm)
65

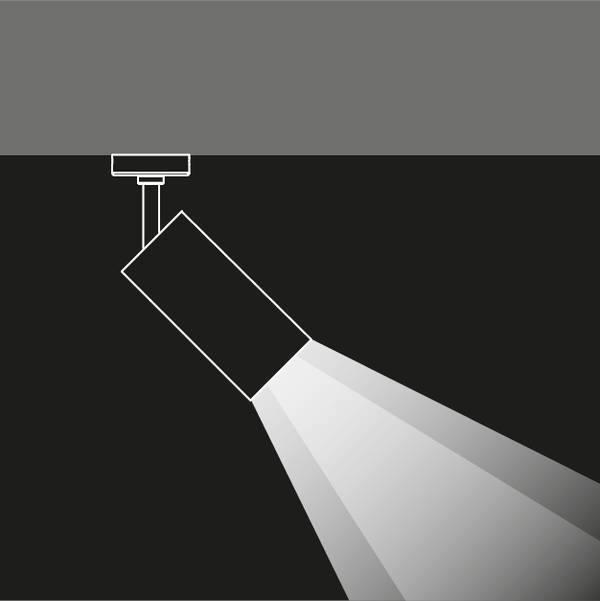

Optical System
Beam
adjustable zoom
Emission
direct
Adjustable
Yes
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross10
UGR longitudinal10
CBCP8321cd
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross21
UGR longitudinal21
CBCP1297cd
Sources
MacAdam
Step 3
Output Flux
900 - 1125 lm
Source type
LED
System power
15W
Temperature Colour
2700K CRI>90
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC10007
Driver ON-OFF IP20 15W. Setting 36V 350mA
MEC10005
Driver DALI-2 IP20 15W. Setting 36V 350mA
