D91/C85-3ML930MB-LW
Product Info
Item code

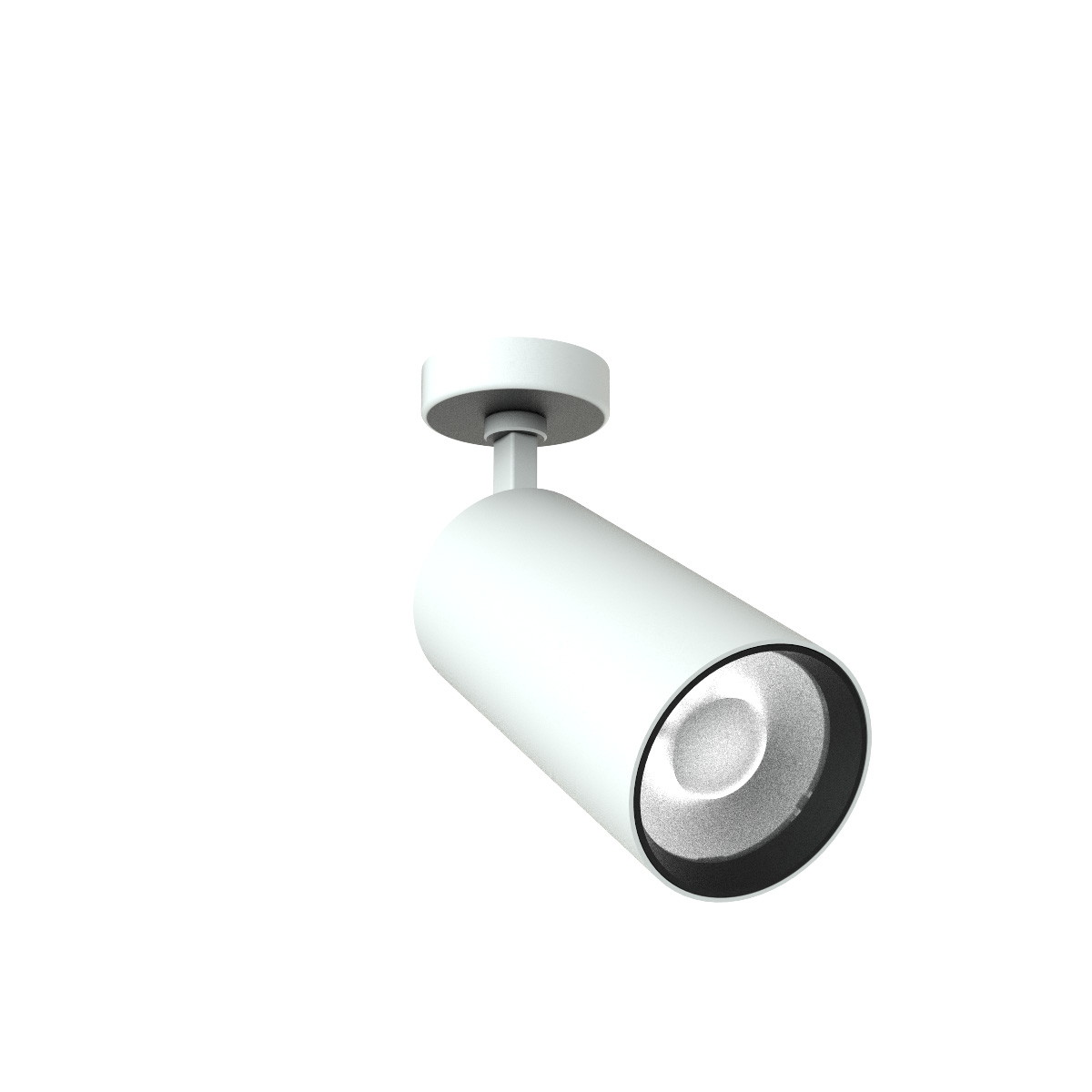

EIDOS CEILING D91/C / D91/C85-3ML930MB-LW
Category
Projectors
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
ceiling surface
Body
Body and base in aluminium. Heat sink, joint and frame in die-cast aluminium.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005
Dimensions
Total device height (mm)
175
D: Total diameter device (mm)
85
Optical System
Beam
medium
Emission
direct
Adjustable
Yes

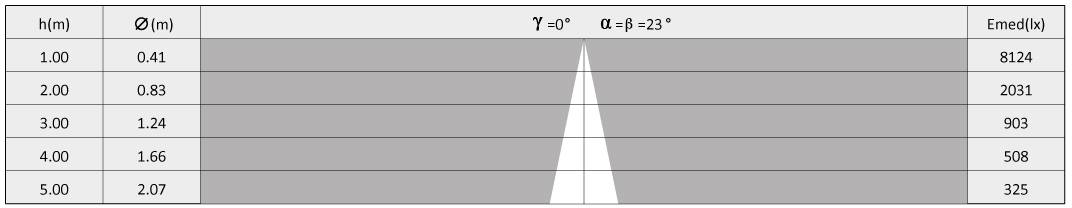

Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross25
UGR longitudinal25
CBCP3973cd
Sources
MacAdam
Step 3
Output Flux
3325 lm
Source type
LED
System power
35W
Temperature Colour
3000K CRI>90
Electrical
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Remote, not included
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC10015
Driver ON-OFF IP20 35W. Setting 36V 900mA
MEC10012
Driver DALI-2 IP20 35W. Setting 36V 900mA
