D89/45-2EL940MB-LW
Product Info
Item code

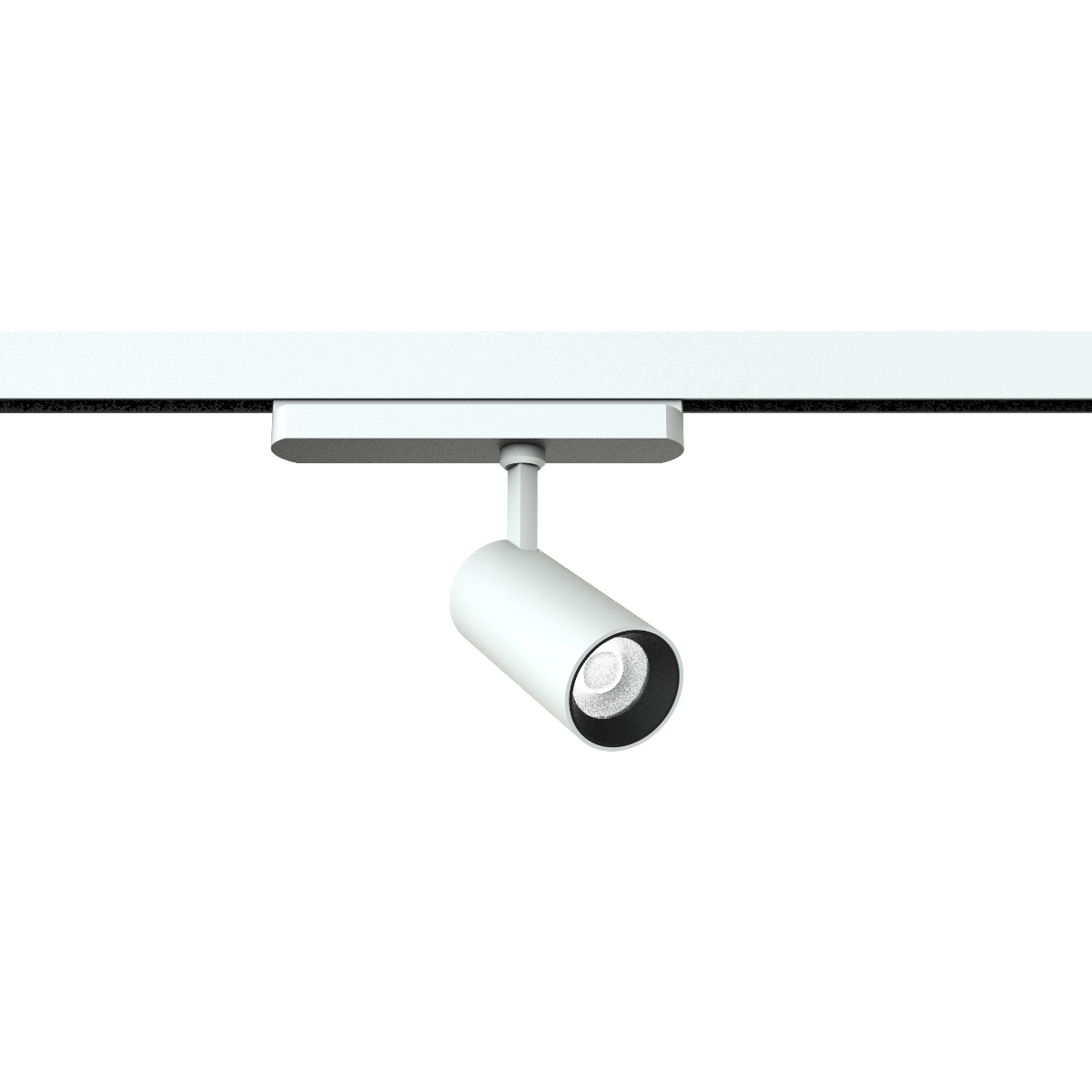

EIDOS TRACK 220V D89 / D89/45-2EL940MB-LW
Category
Projectors, Track
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
track
Mounting note
Compatible with A.A.G. Stucchi Onetrack
Body
Aluminium body, heat sink, joint and frame in die-cast aluminium. Polycarbonate adapter.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005
Dimensions
Total device height (mm)
105
D: Total diameter device (mm)
45
Optical System
Beam
medium
Emission
direct
Adjustable
Yes
Horizontal rotation
0°-356°
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross25
UGR longitudinal25
CBCP3973cd
Sources
MacAdam
Step 3
Output Flux
850 lm
Source type
LED
System power
10W
Temperature Colour
4000K CRI>90
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Mounting
2700-DN-S001
6 conductors track 3-circuit + DALI 16A L=1000mm -DN WHITE.
2700-DN-S002
6 conductors track 3-circuit + DALI 16A L=2000mm -DN WHITE.
2700-DN-S005
Recessed 6 conductors track 3-circuit + DALI 16A L=1000mm -DN WHITE.
2700-DN-S006
Recessed 6 conductors track 3-circuit + DALI 16A L=2000mm -DN WHITE.
2700-DN-K001
Power supply end cap (Earth conductor on the left) -DN WHITE.
2700-DN-K002
Power supply end cap (Earth conductor on the right) -DN WHITE.
2700-DN-K003
Recessed jointing connector -DN WHITE.
2700-DN-K004
Linear joint -DN WHITE.
2700-DN-K016
End cap with locking screw -DN WHITE.
2700-DN-K017
End cap for recessed track with locking screw -DN WHITE.
2700-K018
Ceiling clamp.
2700-K021
Complete Suspension Kit L=5000mm.
AE/1102
Recessed cover for end-feed -AE WHITE.
