D90/75-3HLDA940NB-LW
Product Info
Item code

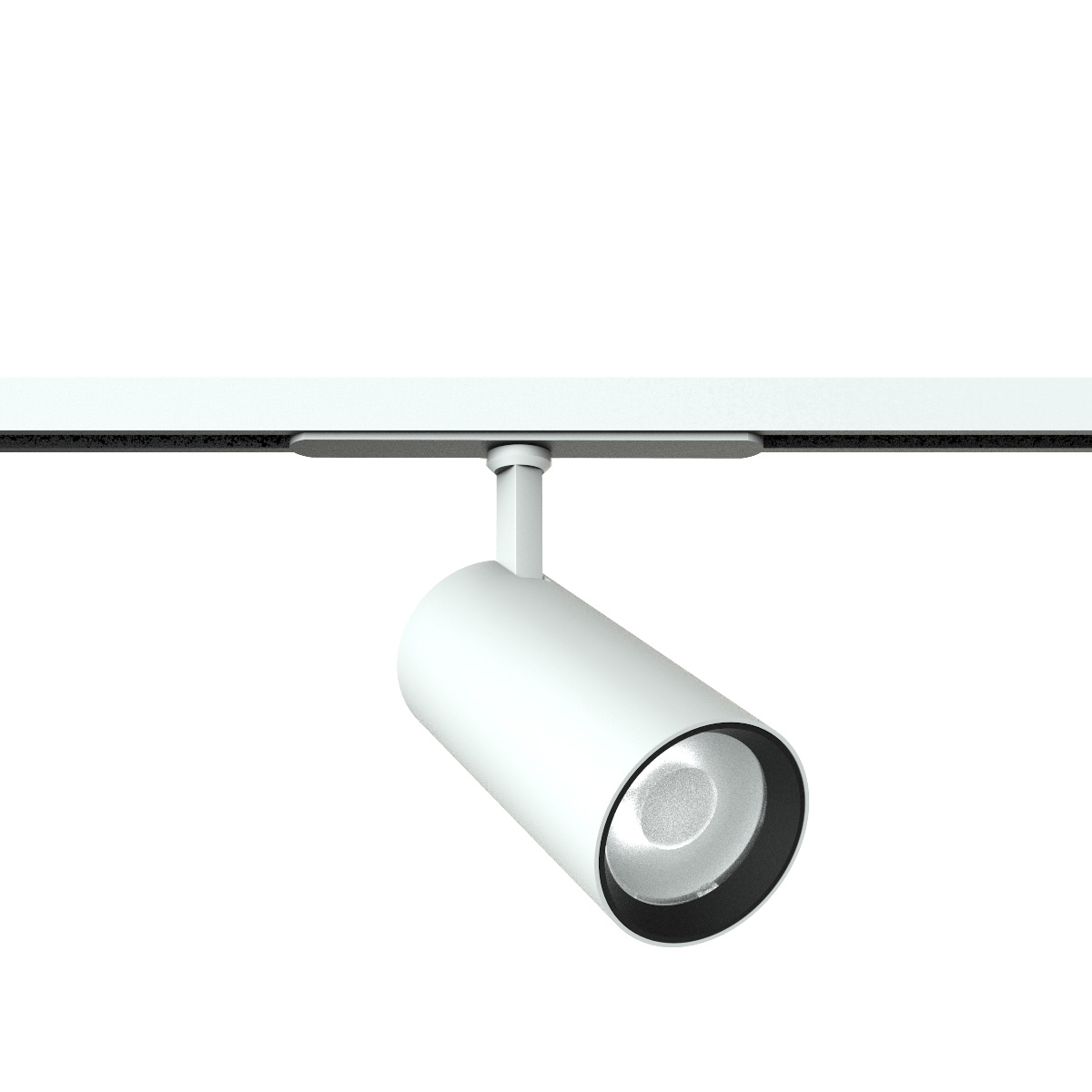

EIDOS TRACK 48V D90 / D90/75-3HLDA940NB-LW
Category
Track, Projectors
Environments
hallway, art and culture, retail areas, residential lighting
Mounting type
track
Mounting note
Compatible with A.A.G. Stucchi Multisystem Evo low voltage
Body
Aluminium body, heat sink, joint and frame in die-cast aluminium. Polycarbonate adapter.
Painting
Powder painting.
Standard Colour
LW | Embossed white RAL9010
Option colors
LB | Embossed black RAL9005
Dimensions
Total device height (mm)
165
D: Total diameter device (mm)
75
Optical System
Beam
narrow
Emission
direct
Adjustable
Yes
Horizontal rotation
0°-356°
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross12
UGR longitudinal12
CBCP8321cd
Sources
MacAdam
Step 3
Output Flux
2700 lm
Source type
LED
System power
30W
Temperature Colour
4000K CRI>90
Electrical
Ballast type
DALI.
Lifetime
50.000h L80B20 (Ta=25°C)
Mounting ballast type
Integral
Voltage
48V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
