105DA401X

  • Download
  • Request Information

Product Info

Item code

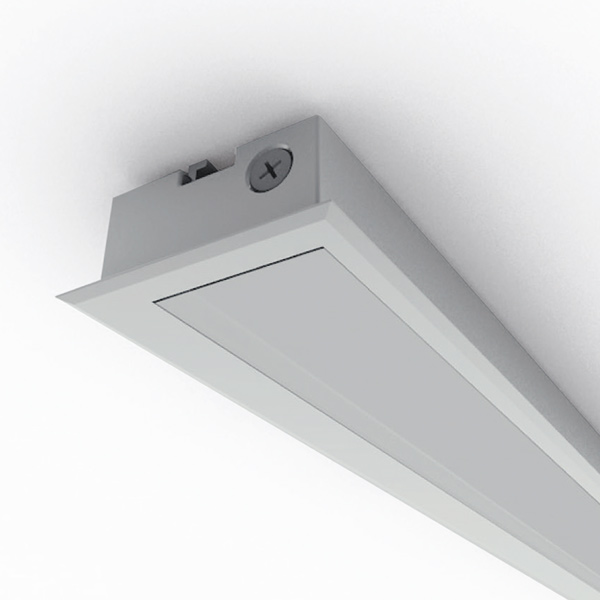

FILO RECESSED / 105DA401X
Category
Profiles, Profiles
Environments
wellness, hallway, conference hall, art and culture, leisure areas, retail areas, places of worship
Mounting type
frame
Body
Natural anodised extruded aluminium structure. Die-cast aluminium end caps. Installation kit with harmonic steel springs.
Wiring
Electrical harness wired for 24V-DC. Double silicone output cables 2x0.5mm². Remote power supply units 220-240V-AC 50-60Hz output 24V-DC (order separately).
Standard Colour
X | anodized aluminium

Dimensions

Total device height (mm)
19
Total device width (mm)
37
Total device length (mm)
532
Weight (kg)
0.2

Included Accessories

Electrical
  • LED sources 4000K
  • 2 cavi in uscita 2x0,5mm² L=500mm
Mounting
  • End caps
Optical
  • PC diffuser

Optical System

Optical System
Transparent extruded PC diffuser.
Beam
asymmetrical
Emission
direct
Adjustable
No

Photometrics

Total return LOR (%)100%

Sources

MacAdam
Step 3
Output Flux
259 lm
Source type
LED
Source power
7,2W
Temperature Colour
4000K CRI>80

Electrical

Lifetime
50.000h L70B50 (Ta=25°C)
Mounting ballast type
Independent
Voltage
24V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Mounting

MEC6009

FILO 4 - Linear joint for continuous row (with screws).

Electrical

MEC6269

35W IP20 Independent ON-OFF Remote Driver.

MEC6270

96W IP20 Independent ON-OFF Remote Driver.

MEC6271

20W Independent DALI Dimmable Driver.

MEC6272

100W Independent DALI Dimmable Driver.

MEC6278

2 poles connector (0.5 - 2.5mm²).

MEC6283

2 poles disposable connector IP67 (0.35 - 0.5mm²).
