T113SE102DN
Product Info
Item code
MISS / T113SE102DN
Category
Linear effects, Suspension
Environments
hallway, conference hall, art and culture, office, leisure areas, retail areas, study areas
Mounting type
surface
Mounting note
To be combined with suspension kit and remote driver.
Body
Housing consisting of powder-coated extruded aluminium and laser cut aluminium end caps.
Painting
Powder painting after passivation.
Wiring
Electrical harness 24V power supply. Remote driver. 1 driver every 6.5m.
Standard Colour
DN | embossed white

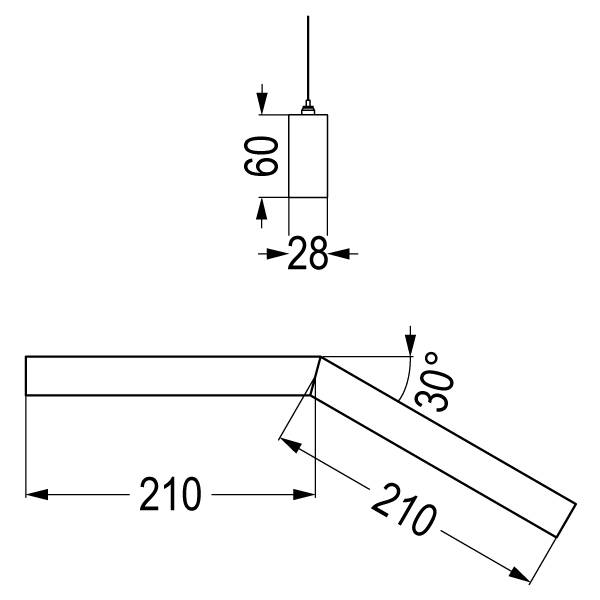

Dimensions
Total device height (mm)
60
Total device width (mm)
130
Total device length (mm)
420
Weight (kg)
0.5
Included Accessories
Optical
- Satin finish PMMA diffuser
Optical System
Optical System
Satin-finish extruded PMMA diffuser.
Beam
diffuse
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross14.7
UGR longitudinal19.4
Sources
MacAdam
Step 3
Output Flux
490 lm
Source type
LED
System power
5W
Temperature Colour
4000K CRI>80
Electrical
Lifetime
50.000h L90B50 (Ta=25°C)
Mounting ballast type
Independent
Voltage
24V-DC
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
MEC6272
100W Independent DALI Dimmable Driver.
MEC6806
Additional transparent cable 2x0.5mm² (L=2000mm).
Mounting
MEC6363
Suspension kit with a rope (L=2000mm), fine millimetric adjuster, ceiling plate and two transparent cables 2x0,5mm² - Embossed White. -DN WHITE.
MEC6364
Suspension kit including a L=2000mm steel cable, spring adjuster and ceiling rose with nickel ogive.
MEC6365
End caps DN (2 pcs. with hardware).
