D53/T165-83-DD-AL
Product Info
Item code
POLO D53 / D53/T165-83-DD-AL
Category
Low pole/bollard, Low pole/bollard
Environments
residential lighting, hallway, urban landscape
Mounting type
ground surface
Mounting note
Supplied complete with a kit of bolts for ground anchoring.
Body
Corrosion resistant extruded aluminium post. Corrosion resistant die-cast aluminium body. Corrosion resistant aluminium ground fixing base.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
EPDM and Silicone Rubber Gaskets.
Standard Colour
AL | aluminium grey
Option colors
GR | graphite satin finish
Dimensions
Total device height (mm)
650
D: Total diameter device (mm)
100
Optical System
Optical System
Unbreakable anti UV polycarbonate diffusers.
Beam
diffuse
Emission
radial
Adjustable
No

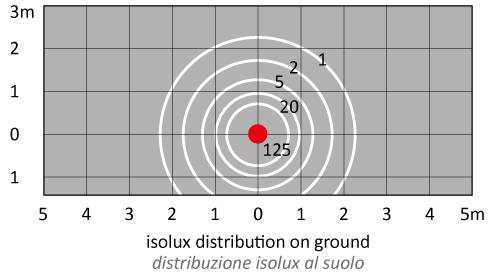

Photometrics
Sources
MacAdam
Step 3
Output Flux
466 lm
Source type
LED COB
Source power
10W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
50.000h L80B20 (Ta=25°C)
Line input
Line entry: prewired with (EN 60598-1) a five core H07RN-F rubber cable with diameter between 7,5 and 12mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Mounting
D53/1-TF
For models: D53 polo/T1, D58 box/B0/B1 and PLANO bollard. Counter plate with stay bolts.
Optical
D53/T1-SO
Darkening sector -180° wide.
