SL.EVO

  • Request Information
SL.EVO threads its linear form around angles and surfaces within a space creating a web of light, turning the visitor into an explorer. The minimal design affords a total-light effect providing outstanding visual comfort with reductions in luminance levels in upper emission corners and efficiency levels of over 73%. The numerous installation types meet the needs of the most demanding lighting designers and make SL.EVO the perfect solution for spaces of every shape.

products (2)

120
SL.EVO LED SINGLE

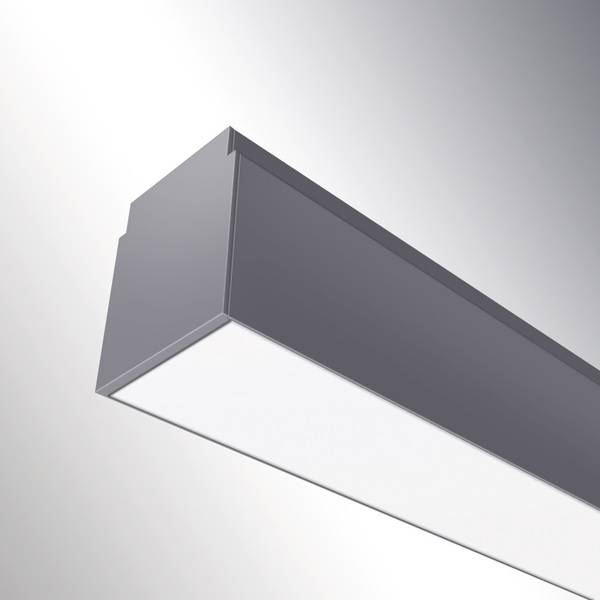

SL.EVO LED single - satin finish PMMA diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL056DNLED37W3713 lm3000K CRI>80diffuseON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90LL058DNLED52W5304 lm3000K CRI>80diffuseON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90LL060DNLED73W7426 lm3000K CRI>80diffuseON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90LL055DNLED32W3182 lm3000K CRI>80diffuseON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90LL052DNLED16W1591 lm3000K CRI>80diffuseDALI.L: 864mm, A: 76mm, H: 93mm
DD90LL054DNLED26W2654 lm3000K CRI>80diffuseDALI.L: 1432mm, A: 76mm, H: 93mm
T90LL057DNLED42W4243 lm3000K CRI>80diffuseON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90LL056DNLED37W3713 lm3000K CRI>80diffuseDALI.L: 2000mm, A: 76mm, H: 93mm
DD90LL058DNLED52W5304 lm3000K CRI>80diffuseDALI.L: 2852mm, A: 76mm, H: 93mm
DD90LL060DNLED73W7426 lm3000K CRI>80diffuseDALI.L: 3988mm, A: 76mm, H: 93mm
T90LL059DNLED63W6365 lm3000K CRI>80diffuseON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90LL051DNLED11W1061 lm3000K CRI>80diffuseON-OFF.L: 580mm, A: 76mm, H: 93mm
T90LL052DNLED16W1591 lm3000K CRI>80diffuseON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90LL051DNLED11W1061 lm3000K CRI>80diffuseDALI.L: 580mm, A: 76mm, H: 93mm
DD90LL053DNLED21W2122 lm3000K CRI>80diffuseDALI.L: 1148mm, A: 76mm, H: 93mm
DD90LL055DNLED32W3182 lm3000K CRI>80diffuseDALI.L: 1716mm, A: 76mm, H: 93mm
DD90LL057DNLED42W4243 lm3000K CRI>80diffuseDALI.L: 2284mm, A: 76mm, H: 93mm
DD90LL059DNLED63W6365 lm3000K CRI>80diffuseDALI.L: 3420mm, A: 76mm, H: 93mm
T90LL053DNLED21W2122 lm3000K CRI>80diffuseON-OFF.L: 1148mm, A: 76mm, H: 93mm
T90LL054DNLED26W2654 lm3000K CRI>80diffuseON-OFF.L: 1432mm, A: 76mm, H: 93mm
SL.EVO LED single - satin finish PMMA diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL006DNLED37W4122 lm4000K CRI>80diffuseON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90LL008DNLED52W5889 lm4000K CRI>80diffuseON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90LL010DNLED73W8245 lm4000K CRI>80diffuseON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90LL005DNLED32W3533 lm4000K CRI>80diffuseON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90LL002DNLED16W1767 lm4000K CRI>80diffuseDALI.L: 864mm, A: 76mm, H: 93mm
DD90LL004DNLED26W2945 lm4000K CRI>80diffuseDALI.L: 1432mm, A: 76mm, H: 93mm
T90LL007DNLED42W4711 lm4000K CRI>80diffuseON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90LL006DNLED37W4122 lm4000K CRI>80diffuseDALI.L: 2000mm, A: 76mm, H: 93mm
DD90LL008DNLED52W5889 lm4000K CRI>80diffuseDALI.L: 2852mm, A: 76mm, H: 93mm
DD90LL010DNLED73W8245 lm4000K CRI>80diffuseDALI.L: 3988mm, A: 76mm, H: 93mm
T90LL009DNLED63W7067 lm4000K CRI>80diffuseON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90LL001DNLED11W1178 lm4000K CRI>80diffuseON-OFF.L: 580mm, A: 76mm, H: 93mm
T90LL002DNLED16W1767 lm4000K CRI>80diffuseON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90LL001DNLED11W1178 lm4000K CRI>80diffuseDALI.L: 580mm, A: 76mm, H: 93mm
DD90LL003DNLED21W2356 lm4000K CRI>80diffuseDALI.L: 1148mm, A: 76mm, H: 93mm
DD90LL005DNLED32W3533 lm4000K CRI>80diffuseDALI.L: 1716mm, A: 76mm, H: 93mm
DD90LL007DNLED42W4711 lm4000K CRI>80diffuseDALI.L: 2284mm, A: 76mm, H: 93mm
DD90LL009DNLED63W7067 lm4000K CRI>80diffuseDALI.L: 3420mm, A: 76mm, H: 93mm
T90LL003DNLED21W2356 lm4000K CRI>80diffuseON-OFF.L: 1148mm, A: 76mm, H: 93mm
T90LL004DNLED26W2945 lm4000K CRI>80diffuseON-OFF.L: 1432mm, A: 76mm, H: 93mm

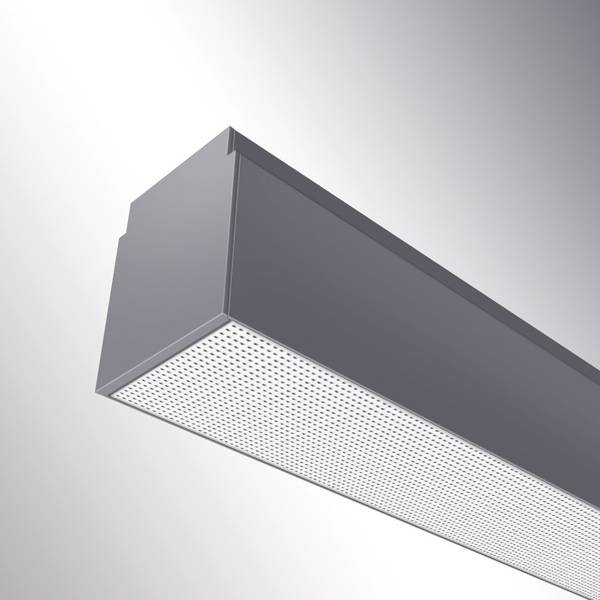

SL.EVO LED single - TXT diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL054DNLED26W2720 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1432mm, A: 76mm, H: 93mm
T90XL056DNLED37W3808 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90XL058DNLED52W5440 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90XL060DNLED73W7616 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90XL055DNLED32W3264 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90XL052DNLED16W1632 lm3000K CRI>80diffuse + antiglareDALI.L: 864mm, A: 76mm, H: 93mm
DD90XL054DNLED26W2720 lm3000K CRI>80diffuse + antiglareDALI.L: 1432mm, A: 76mm, H: 93mm
T90XL057DNLED42W4352 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90XL056DNLED37W3808 lm3000K CRI>80diffuse + antiglareDALI.L: 2000mm, A: 76mm, H: 93mm
DD90XL058DNLED52W5440 lm3000K CRI>80diffuse + antiglareDALI.L: 2852mm, A: 76mm, H: 93mm
DD90XL060DNLED73W7616 lm3000K CRI>80diffuse + antiglareDALI.L: 3988mm, A: 76mm, H: 93mm
T90XL059DNLED63W6528 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90XL051DNLED11W1088 lm3000K CRI>80diffuse + antiglareON-OFF.L: 580mm, A: 76mm, H: 93mm
T90XL052DNLED16W1632 lm3000K CRI>80diffuse + antiglareON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90XL051DNLED11W1088 lm3000K CRI>80diffuse + antiglareDALI.L: 580mm, A: 76mm, H: 93mm
DD90XL053DNLED21W2176 lm3000K CRI>80diffuse + antiglareDALI.L: 1148mm, A: 76mm, H: 93mm
DD90XL055DNLED32W3264 lm3000K CRI>80diffuse + antiglareDALI.L: 1716mm, A: 76mm, H: 93mm
DD90XL057DNLED42W4352 lm3000K CRI>80diffuse + antiglareDALI.L: 2284mm, A: 76mm, H: 93mm
DD90XL059DNLED63W6528 lm3000K CRI>80diffuse + antiglareDALI.L: 3420mm, A: 76mm, H: 93mm
T90XL053DNLED21W2176 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1148mm, A: 76mm, H: 93mm
SL.EVO LED single - TXT diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL004DNLED26W3020 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1432mm, A: 76mm, H: 93mm
T90XL006DNLED37W4228 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90XL008DNLED52W6040 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90XL010DNLED73W8456 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90XL005DNLED32W3624 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90XL002DNLED16W1812 lm4000K CRI>80diffuse + antiglareDALI.L: 864mm, A: 76mm, H: 93mm
DD90XL004DNLED26W3020 lm4000K CRI>80diffuse + antiglareDALI.L: 1432mm, A: 76mm, H: 93mm
T90XL007DNLED42W4832 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90XL006DNLED37W4228 lm4000K CRI>80diffuse + antiglareDALI.L: 2000mm, A: 76mm, H: 93mm
DD90XL008DNLED52W6040 lm4000K CRI>80diffuse + antiglareDALI.L: 2852mm, A: 76mm, H: 93mm
DD90XL010DNLED73W8456 lm4000K CRI>80diffuse + antiglareDALI.L: 3988mm, A: 76mm, H: 93mm
T90XL009DNLED63W7248 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90XL001DNLED11W1208 lm4000K CRI>80diffuse + antiglareON-OFF.L: 580mm, A: 76mm, H: 93mm
T90XL002DNLED16W1812 lm4000K CRI>80diffuse + antiglareON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90XL001DNLED11W1208 lm4000K CRI>80diffuse + antiglareDALI.L: 580mm, A: 76mm, H: 93mm
DD90XL003DNLED21W2416 lm4000K CRI>80diffuse + antiglareDALI.L: 1148mm, A: 76mm, H: 93mm
DD90XL005DNLED32W3624 lm4000K CRI>80diffuse + antiglareDALI.L: 1716mm, A: 76mm, H: 93mm
DD90XL007DNLED42W4832 lm4000K CRI>80diffuse + antiglareDALI.L: 2284mm, A: 76mm, H: 93mm
DD90XL009DNLED63W7248 lm4000K CRI>80diffuse + antiglareDALI.L: 3420mm, A: 76mm, H: 93mm
T90XL003DNLED21W2416 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1148mm, A: 76mm, H: 93mm
SL.EVO LED single - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL054DNLED26W1802 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1432mm, A: 76mm, H: 93mm
T90WL056DNLED37W2523 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90WL058DNLED52W3604 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90WL060DNLED73W5046 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90WL055DNLED32W2163 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90WL052DNLED16W1082 lm3000K CRI>80diffuse UGR<19DALI.L: 864mm, A: 76mm, H: 93mm
DD90WL054DNLED26W1802 lm3000K CRI>80diffuse UGR<19DALI.L: 1432mm, A: 76mm, H: 93mm
T90WL057DNLED42W2884 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90WL056DNLED37W2523 lm3000K CRI>80diffuse UGR<19DALI.L: 2000mm, A: 76mm, H: 93mm
DD90WL058DNLED52W3604 lm3000K CRI>80diffuse UGR<19DALI.L: 2852mm, A: 76mm, H: 93mm
DD90WL060DNLED73W5046 lm3000K CRI>80diffuse UGR<19DALI.L: 3988mm, A: 76mm, H: 93mm
T90WL059DNLED63W4325 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90WL051DNLED11W721 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 580mm, A: 76mm, H: 93mm
T90WL052DNLED16W1082 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90WL051DNLED11W721 lm3000K CRI>80diffuse UGR<19DALI.L: 580mm, A: 76mm, H: 93mm
DD90WL053DNLED21W1442 lm3000K CRI>80diffuse UGR<19DALI.L: 1148mm, A: 76mm, H: 93mm
DD90WL055DNLED32W2163 lm3000K CRI>80diffuse UGR<19DALI.L: 1716mm, A: 76mm, H: 93mm
DD90WL057DNLED42W2884 lm3000K CRI>80diffuse UGR<19DALI.L: 2284mm, A: 76mm, H: 93mm
DD90WL059DNLED63W4325 lm3000K CRI>80diffuse UGR<19DALI.L: 3420mm, A: 76mm, H: 93mm
T90WL053DNLED21W1442 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1148mm, A: 76mm, H: 93mm
SL.EVO LED single - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL006DNLED37W2802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2000mm, A: 76mm, H: 93mm
T90WL008DNLED52W4002 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2852mm, A: 76mm, H: 93mm
T90WL010DNLED73W5603 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3988mm, A: 76mm, H: 93mm
T90WL005DNLED32W2401 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1716mm, A: 76mm, H: 93mm
DD90WL002DNLED16W1201 lm4000K CRI>80diffuse UGR<19DALI.L: 864mm, A: 76mm, H: 93mm
DD90WL004DNLED26W2001 lm4000K CRI>80diffuse UGR<19DALI.L: 1432mm, A: 76mm, H: 93mm
T90WL007DNLED42W3202 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2284mm, A: 76mm, H: 93mm
DD90WL006DNLED37W2802 lm4000K CRI>80diffuse UGR<19DALI.L: 2000mm, A: 76mm, H: 93mm
DD90WL008DNLED52W4002 lm4000K CRI>80diffuse UGR<19DALI.L: 2852mm, A: 76mm, H: 93mm
DD90WL010DNLED73W5603 lm4000K CRI>80diffuse UGR<19DALI.L: 3988mm, A: 76mm, H: 93mm
T90WL009DNLED63W4802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3420mm, A: 76mm, H: 93mm
T90WL001DNLED11W801 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 580mm, A: 76mm, H: 93mm
T90WL002DNLED16W1201 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 864mm, A: 76mm, H: 93mm
DD90WL001DNLED11W801 lm4000K CRI>80diffuse UGR<19DALI.L: 580mm, A: 76mm, H: 93mm
DD90WL003DNLED21W1601 lm4000K CRI>80diffuse UGR<19DALI.L: 1148mm, A: 76mm, H: 93mm
DD90WL005DNLED32W2401 lm4000K CRI>80diffuse UGR<19DALI.L: 1716mm, A: 76mm, H: 93mm
DD90WL007DNLED42W3202 lm4000K CRI>80diffuse UGR<19DALI.L: 2284mm, A: 76mm, H: 93mm
DD90WL009DNLED63W4802 lm4000K CRI>80diffuse UGR<19DALI.L: 3420mm, A: 76mm, H: 93mm
T90WL003DNLED21W1601 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1148mm, A: 76mm, H: 93mm
T90WL004DNLED26W2001 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1432mm, A: 76mm, H: 93mm
88

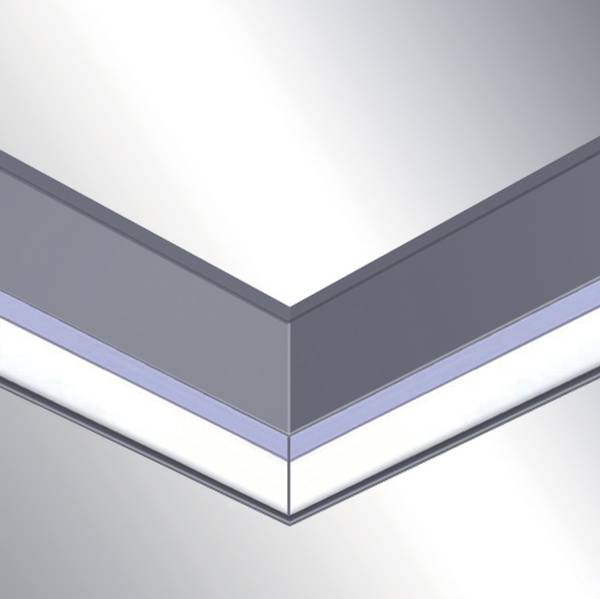

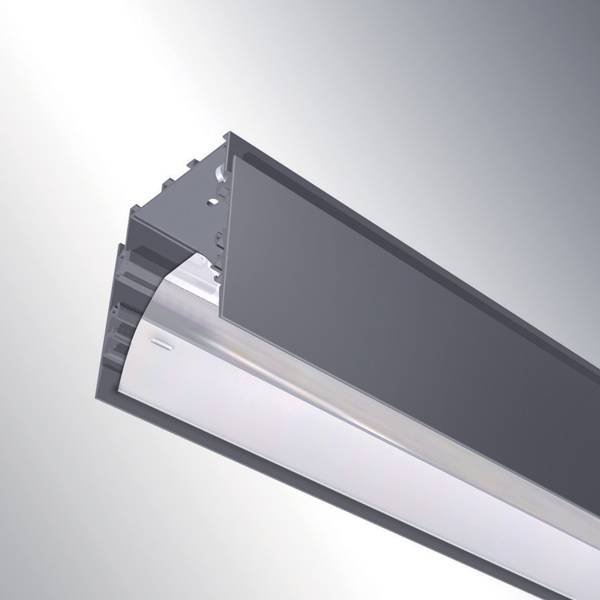

SL.EVO LED CONTINUOUS
SL.EVO LED continuous (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L056DNLED37W3713 lm3000K CRI>80ON-OFF.L: 1994mm, A: 76mm, H: 93mm
T900L058DNLED52W5304 lm3000K CRI>80ON-OFF.L: 2846mm, A: 76mm, H: 93mm
T900L060DNLED73W7426 lm3000K CRI>80ON-OFF.L: 3982mm, A: 76mm, H: 93mm
T900L055DNLED32W3182 lm3000K CRI>80ON-OFF.L: 1710mm, A: 76mm, H: 93mm
DD900L052DNLED16W1591 lm3000K CRI>80DALI.L: 858mm, A: 76mm, H: 93mm
DD900L054DNLED26W2652 lm3000K CRI>80DALI.L: 1426mm, A: 76mm, H: 93mm
T900L057DNLED42W4243 lm3000K CRI>80ON-OFF.L: 2278mm, A: 76mm, H: 93mm
DD900L056DNLED37W3713 lm3000K CRI>80DALI.L: 1994mm, A: 76mm, H: 93mm
DD900L058DNLED52W5304 lm3000K CRI>80DALI.L: 2846mm, A: 76mm, H: 93mm
DD900L060DNLED73W7426 lm3000K CRI>80DALI.L: 3982mm, A: 76mm, H: 93mm
T900L059DNLED63W6365 lm3000K CRI>80ON-OFF.L: 3414mm, A: 76mm, H: 93mm
T900L051DNLED11W1061 lm3000K CRI>80ON-OFF.L: 574mm, A: 76mm, H: 93mm
T900L052DNLED16W1591 lm3000K CRI>80ON-OFF.L: 858mm, A: 76mm, H: 93mm
DD900L051DNLED11W1061 lm3000K CRI>80DALI.L: 574mm, A: 76mm, H: 93mm
DD900L053DNLED21W2122 lm3000K CRI>80DALI.L: 1142mm, A: 76mm, H: 93mm
DD900L055DNLED32W3182 lm3000K CRI>80DALI.L: 1710mm, A: 76mm, H: 93mm
DD900L057DNLED42W4243 lm3000K CRI>80DALI.L: 2278mm, A: 76mm, H: 93mm
DD900L059DNLED63W6365 lm3000K CRI>80DALI.L: 3414mm, A: 76mm, H: 93mm
T900L053DNLED21W2122 lm3000K CRI>80ON-OFF.L: 1142mm, A: 76mm, H: 93mm
T900L054DNLED26W2652 lm3000K CRI>80ON-OFF.L: 1426mm, A: 76mm, H: 93mm
SL.EVO LED continuous (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L006DNLED37W4122 lm4000K CRI>80ON-OFF.L: 1994mm, A: 76mm, H: 93mm
T900L008DNLED52W5889 lm4000K CRI>80ON-OFF.L: 2846mm, A: 76mm, H: 93mm
T900L010DNLED73W8245 lm4000K CRI>80ON-OFF.L: 3982mm, A: 76mm, H: 93mm
T900L005DNLED32W3533 lm4000K CRI>80ON-OFF.L: 1710mm, A: 76mm, H: 93mm
DD900L002DNLED16W1767 lm4000K CRI>80DALI.L: 858mm, A: 76mm, H: 93mm
DD900L004DNLED26W2945 lm4000K CRI>80DALI.L: 1426mm, A: 76mm, H: 93mm
T900L007DNLED42W4711 lm4000K CRI>80ON-OFF.L: 2278mm, A: 76mm, H: 93mm
DD900L006DNLED37W4122 lm4000K CRI>80DALI.L: 1994mm, A: 76mm, H: 93mm
DD900L008DNLED52W5889 lm4000K CRI>80DALI.L: 2846mm, A: 76mm, H: 93mm
DD900L010DNLED73W8245 lm4000K CRI>80DALI.L: 3982mm, A: 76mm, H: 93mm
T900L009DNLED63W7067 lm4000K CRI>80ON-OFF.L: 3414mm, A: 76mm, H: 93mm
T900L001DNLED11W1178 lm4000K CRI>80ON-OFF.L: 574mm, A: 76mm, H: 93mm
T900L002DNLED16W1767 lm4000K CRI>80ON-OFF.L: 858mm, A: 76mm, H: 93mm
DD900L001DNLED11W1178 lm4000K CRI>80DALI.L: 574mm, A: 76mm, H: 93mm
DD900L003DNLED21W2356 lm4000K CRI>80DALI.L: 1142mm, A: 76mm, H: 93mm
DD900L005DNLED32W3533 lm4000K CRI>80DALI.L: 1710mm, A: 76mm, H: 93mm
DD900L007DNLED42W4711 lm4000K CRI>80DALI.L: 2278mm, A: 76mm, H: 93mm
DD900L009DNLED63W7067 lm4000K CRI>80DALI.L: 3414mm, A: 76mm, H: 93mm
T900L003DNLED21W2356 lm4000K CRI>80ON-OFF.L: 1142mm, A: 76mm, H: 93mm
T900L004DNLED26W2945 lm4000K CRI>80ON-OFF.L: 1426mm, A: 76mm, H: 93mm
SL.EVO LED continuous - angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L061DNLED21W2122 lm3000K CRI>80ON-OFF.L: 612mm, A: 612mm, H: 93mm
DD900L061DNLED21W2122 lm3000K CRI>80DALI.L: 612mm, A: 612mm, H: 93mm
SL.EVO LED continuous - angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L011DNLED21W2356 lm4000K CRI>80ON-OFF.L: 612mm, A: 612mm, H: 93mm
DD900L011DNLED21W2356 lm4000K CRI>80DALI.L: 612mm, A: 612mm, H: 93mm
SL.EVO LED continuous - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL056DNLED37W2523 lm3000K CRI>80ON-OFF.L: 1994mm, A: 76mm, H: 93mm
T90HL058DNLED52W3604 lm3000K CRI>80ON-OFF.L: 2846mm, A: 76mm, H: 93mm
T90HL060DNLED73W5046 lm3000K CRI>80ON-OFF.L: 3982mm, A: 76mm, H: 93mm
T90HL055DNLED32W2162 lm3000K CRI>80ON-OFF.L: 1710mm, A: 76mm, H: 93mm
DD90HL052DNLED16W1081 lm3000K CRI>80DALI.L: 858mm, A: 76mm, H: 93mm
DD90HL054DNLED26W1802 lm3000K CRI>80DALI.L: 1426mm, A: 76mm, H: 93mm
T90HL057DNLED42W2883 lm3000K CRI>80ON-OFF.L: 2278mm, A: 76mm, H: 93mm
DD90HL056DNLED37W2523 lm3000K CRI>80DALI.L: 1994mm, A: 76mm, H: 93mm
DD90HL058DNLED52W3604 lm3000K CRI>80DALI.L: 2846mm, A: 76mm, H: 93mm
DD90HL060DNLED73W5046 lm3000K CRI>80DALI.L: 3982mm, A: 76mm, H: 93mm
T90HL059DNLED63W4325 lm3000K CRI>80ON-OFF.L: 3414mm, A: 76mm, H: 93mm
T90HL051DNLED11W721 lm3000K CRI>80ON-OFF.L: 574mm, A: 76mm, H: 93mm
T90HL052DNLED16W1081 lm3000K CRI>80ON-OFF.L: 858mm, A: 76mm, H: 93mm
DD90HL051DNLED11W721 lm3000K CRI>80DALI.L: 574mm, A: 76mm, H: 93mm
DD90HL053DNLED21W1442 lm3000K CRI>80DALI.L: 1142mm, A: 76mm, H: 93mm
DD90HL055DNLED32W2162 lm3000K CRI>80DALI.L: 1710mm, A: 76mm, H: 93mm
DD90HL057DNLED42W2883 lm3000K CRI>80DALI.L: 2278mm, A: 76mm, H: 93mm
DD90HL059DNLED63W4325 lm3000K CRI>80DALI.L: 3414mm, A: 76mm, H: 93mm
T90HL053DNLED21W1442 lm3000K CRI>80ON-OFF.L: 1142mm, A: 76mm, H: 93mm
T90HL054DNLED26W1802 lm3000K CRI>80ON-OFF.L: 1426mm, A: 76mm, H: 93mm
SL.EVO LED continuous - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL006DNLED37W2801 lm4000K CRI>80ON-OFF.L: 1994mm, A: 76mm, H: 93mm
T90HL008DNLED52W4002 lm4000K CRI>80ON-OFF.L: 2846mm, A: 76mm, H: 93mm
T90HL010DNLED73W5602 lm4000K CRI>80ON-OFF.L: 3982mm, A: 76mm, H: 93mm
T90HL005DNLED32W2401 lm4000K CRI>80ON-OFF.L: 1710mm, A: 76mm, H: 93mm
DD90HL002DNLED16W1200 lm4000K CRI>80DALI.L: 858mm, A: 76mm, H: 93mm
DD90HL004DNLED26W2001 lm4000K CRI>80DALI.L: 1426mm, A: 76mm, H: 93mm
T90HL007DNLED42W3201 lm4000K CRI>80ON-OFF.L: 2278mm, A: 76mm, H: 93mm
DD90HL006DNLED37W2801 lm4000K CRI>80DALI.L: 1994mm, A: 76mm, H: 93mm
DD90HL008DNLED52W4002 lm4000K CRI>80DALI.L: 2846mm, A: 76mm, H: 93mm
DD90HL010DNLED73W5602 lm4000K CRI>80DALI.L: 3982mm, A: 76mm, H: 93mm
T90HL009DNLED63W4802 lm4000K CRI>80ON-OFF.L: 3414mm, A: 76mm, H: 93mm
T90HL001DNLED11W800 lm4000K CRI>80ON-OFF.L: 574mm, A: 76mm, H: 93mm
T90HL002DNLED16W1200 lm4000K CRI>80ON-OFF.L: 858mm, A: 76mm, H: 93mm
DD90HL001DNLED11W800 lm4000K CRI>80DALI.L: 574mm, A: 76mm, H: 93mm
DD90HL003DNLED21W1601 lm4000K CRI>80DALI.L: 1142mm, A: 76mm, H: 93mm
DD90HL005DNLED32W2401 lm4000K CRI>80DALI.L: 1710mm, A: 76mm, H: 93mm
DD90HL007DNLED42W3201 lm4000K CRI>80DALI.L: 2278mm, A: 76mm, H: 93mm
DD90HL009DNLED63W4802 lm4000K CRI>80DALI.L: 3414mm, A: 76mm, H: 93mm
T90HL003DNLED21W1601 lm4000K CRI>80ON-OFF.L: 1142mm, A: 76mm, H: 93mm
T90HL004DNLED26W2001 lm4000K CRI>80ON-OFF.L: 1426mm, A: 76mm, H: 93mm
SL.EVO LED continuous - TXT-R diffuser angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL061DNLED21W1442 lm3000K CRI>80ON-OFF.L: 612mm, A: 612mm, H: 93mm
DD90HL061DNLED21W1442 lm3000K CRI>80DALI.L: 612mm, A: 612mm, H: 93mm
SL.EVO LED continuous - TXT-R diffuser angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL011DNLED21W1600 lm4000K CRI>80ON-OFF.L: 612mm, A: 612mm, H: 93mm
DD90HL011DNLED21W1600 lm4000K CRI>80DALI.L: 612mm, A: 612mm, H: 93mm
