SL.EVO RECESSED

  • Request Information
SL.EVO threads its linear form around angles and surfaces within a space creating a web of light, turning the visitor into an explorer. The minimal design affords a total-light effect providing outstanding visual comfort with reductions in luminance levels in upper emission corners and efficiency levels of over 73%. The numerous installation types meet the needs of the most demanding lighting designers and make SL.EVO the perfect solution for spaces of every shape.

products (4)

120
SL.EVO LED FRAME SINGLE
SL.EVO LED FRAME single - satin finish PMMA diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL256DNLED37W3713 lm3000K CRI>80diffuseON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90LL258DNLED52W5304 lm3000K CRI>80diffuseON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90LL260DNLED73W7426 lm3000K CRI>80diffuseON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90LL255DNLED32W3182 lm3000K CRI>80diffuseON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90LL252DNLED16W1591 lm3000K CRI>80diffuseDALI.L: 874mm, A: 88mm, H: 88mm
DD90LL254DNLED26W2654 lm3000K CRI>80diffuseDALI.L: 1442mm, A: 88mm, H: 88mm
T90LL257DNLED42W4243 lm3000K CRI>80diffuseON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90LL256DNLED37W3713 lm3000K CRI>80diffuseDALI.L: 2010mm, A: 88mm, H: 88mm
DD90LL258DNLED52W5304 lm3000K CRI>80diffuseDALI.L: 2862mm, A: 88mm, H: 88mm
DD90LL260DNLED73W7426 lm3000K CRI>80diffuseDALI.L: 3998mm, A: 88mm, H: 88mm
T90LL259DNLED63W6365 lm3000K CRI>80diffuseON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90LL251DNLED11W1061 lm3000K CRI>80diffuseON-OFF.L: 590mm, A: 88mm, H: 88mm
T90LL252DNLED16W1591 lm3000K CRI>80diffuseON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90LL251DNLED11W1061 lm3000K CRI>80diffuseDALI.L: 590mm, A: 88mm, H: 88mm
DD90LL253DNLED21W2122 lm3000K CRI>80diffuseDALI.L: 1158mm, A: 88mm, H: 88mm
DD90LL255DNLED32W3182 lm3000K CRI>80diffuseDALI.L: 1726mm, A: 88mm, H: 88mm
DD90LL257DNLED42W4243 lm3000K CRI>80diffuseDALI.L: 2294mm, A: 88mm, H: 88mm
DD90LL259DNLED63W6365 lm3000K CRI>80diffuseDALI.L: 3430mm, A: 88mm, H: 88mm
T90LL253DNLED21W2122 lm3000K CRI>80diffuseON-OFF.L: 1158mm, A: 88mm, H: 88mm
T90LL254DNLED26W2654 lm3000K CRI>80diffuseON-OFF.L: 1442mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL204DNLED26W2001 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90WL206DNLED37W2802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90WL208DNLED52W4002 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90WL210DNLED73W5603 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90WL205DNLED32W2401 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90WL202DNLED16W1201 lm4000K CRI>80diffuse UGR<19DALI.L: 874mm, A: 88mm, H: 88mm
DD90WL204DNLED26W2001 lm4000K CRI>80diffuse UGR<19DALI.L: 1442mm, A: 88mm, H: 88mm
T90WL207DNLED42W3202 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90WL206DNLED37W2802 lm4000K CRI>80diffuse UGR<19DALI.L: 2010mm, A: 88mm, H: 88mm
DD90WL208DNLED52W4002 lm4000K CRI>80diffuse UGR<19DALI.L: 2862mm, A: 88mm, H: 88mm
DD90WL210DNLED73W5603 lm4000K CRI>80diffuse UGR<19DALI.L: 3998mm, A: 88mm, H: 88mm
T90WL209DNLED63W4802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90WL201DNLED11W801 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 590mm, A: 88mm, H: 88mm
T90WL202DNLED16W1201 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90WL201DNLED11W801 lm4000K CRI>80diffuse UGR<19DALI.L: 590mm, A: 88mm, H: 88mm
DD90WL203DNLED21W1601 lm4000K CRI>80diffuse UGR<19DALI.L: 1158mm, A: 88mm, H: 88mm
DD90WL205DNLED32W2401 lm4000K CRI>80diffuse UGR<19DALI.L: 1726mm, A: 88mm, H: 88mm
DD90WL207DNLED42W3202 lm4000K CRI>80diffuse UGR<19DALI.L: 2294mm, A: 88mm, H: 88mm
DD90WL209DNLED63W4802 lm4000K CRI>80diffuse UGR<19DALI.L: 3430mm, A: 88mm, H: 88mm
T90WL203DNLED21W1601 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL254DNLED26W1802 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90WL256DNLED37W2523 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90WL258DNLED52W3604 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90WL260DNLED73W5046 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90WL255DNLED32W2163 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90WL252DNLED16W1082 lm3000K CRI>80diffuse UGR<19DALI.L: 874mm, A: 88mm, H: 88mm
DD90WL254DNLED26W1802 lm3000K CRI>80diffuse UGR<19DALI.L: 1442mm, A: 88mm, H: 88mm
T90WL257DNLED42W2884 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90WL256DNLED37W2523 lm3000K CRI>80diffuse UGR<19DALI.L: 2010mm, A: 88mm, H: 88mm
DD90WL258DNLED52W3604 lm3000K CRI>80diffuse UGR<19DALI.L: 2862mm, A: 88mm, H: 88mm
DD90WL260DNLED73W5046 lm3000K CRI>80diffuse UGR<19DALI.L: 3998mm, A: 88mm, H: 88mm
T90WL259DNLED63W4325 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90WL251DNLED11W721 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 590mm, A: 88mm, H: 88mm
T90WL252DNLED16W1082 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90WL251DNLED11W721 lm3000K CRI>80diffuse UGR<19DALI.L: 590mm, A: 88mm, H: 88mm
DD90WL253DNLED21W1442 lm3000K CRI>80diffuse UGR<19DALI.L: 1158mm, A: 88mm, H: 88mm
DD90WL255DNLED32W2163 lm3000K CRI>80diffuse UGR<19DALI.L: 1726mm, A: 88mm, H: 88mm
DD90WL257DNLED42W2884 lm3000K CRI>80diffuse UGR<19DALI.L: 2294mm, A: 88mm, H: 88mm
DD90WL259DNLED63W4325 lm3000K CRI>80diffuse UGR<19DALI.L: 3430mm, A: 88mm, H: 88mm
T90WL253DNLED21W1442 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1158mm, A: 88mm, H: 88mm

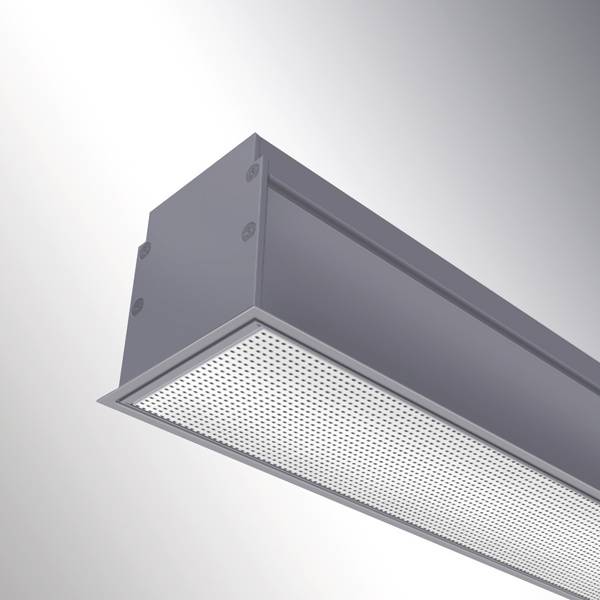

SL.EVO LED FRAME single - TXT diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL204DNLED26W3020 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90XL206DNLED37W4228 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90XL208DNLED52W6040 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90XL210DNLED73W8456 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90XL205DNLED32W3624 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90XL202DNLED16W1812 lm4000K CRI>80diffuse + antiglareDALI.L: 874mm, A: 88mm, H: 88mm
DD90XL204DNLED26W3020 lm4000K CRI>80diffuse + antiglareDALI.L: 1442mm, A: 88mm, H: 88mm
T90XL207DNLED42W4832 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90XL206DNLED37W4228 lm4000K CRI>80diffuse + antiglareDALI.L: 2010mm, A: 88mm, H: 88mm
DD90XL208DNLED52W6040 lm4000K CRI>80diffuse + antiglareDALI.L: 2862mm, A: 88mm, H: 88mm
DD90XL210DNLED73W8456 lm4000K CRI>80diffuse + antiglareDALI.L: 3998mm, A: 88mm, H: 88mm
T90XL209DNLED63W7248 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90XL201DNLED11W1208 lm4000K CRI>80diffuse + antiglareON-OFF.L: 590mm, A: 88mm, H: 88mm
T90XL202DNLED16W1812 lm4000K CRI>80diffuse + antiglareON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90XL201DNLED11W1208 lm4000K CRI>80diffuse + antiglareDALI.L: 590mm, A: 88mm, H: 88mm
DD90XL203DNLED21W2416 lm4000K CRI>80diffuse + antiglareDALI.L: 1158mm, A: 88mm, H: 88mm
DD90XL205DNLED32W3624 lm4000K CRI>80diffuse + antiglareDALI.L: 1726mm, A: 88mm, H: 88mm
DD90XL207DNLED42W4832 lm4000K CRI>80diffuse + antiglareDALI.L: 2294mm, A: 88mm, H: 88mm
DD90XL209DNLED63W7248 lm4000K CRI>80diffuse + antiglareDALI.L: 3430mm, A: 88mm, H: 88mm
T90XL203DNLED21W2416 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL254DNLED26W2720 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90XL256DNLED37W3808 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90XL258DNLED52W5440 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90XL260DNLED73W7616 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90XL255DNLED32W3264 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90XL252DNLED16W1632 lm3000K CRI>80diffuse + antiglareDALI.L: 874mm, A: 88mm, H: 88mm
DD90XL254DNLED26W2720 lm3000K CRI>80diffuse + antiglareDALI.L: 1442mm, A: 88mm, H: 88mm
T90XL257DNLED42W4352 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90XL256DNLED37W3808 lm3000K CRI>80diffuse + antiglareDALI.L: 2010mm, A: 88mm, H: 88mm
DD90XL258DNLED52W5440 lm3000K CRI>80diffuse + antiglareDALI.L: 2862mm, A: 88mm, H: 88mm
DD90XL260DNLED73W7616 lm3000K CRI>80diffuse + antiglareDALI.L: 3998mm, A: 88mm, H: 88mm
T90XL259DNLED63W6528 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90XL251DNLED11W1088 lm3000K CRI>80diffuse + antiglareON-OFF.L: 590mm, A: 88mm, H: 88mm
T90XL252DNLED16W1632 lm3000K CRI>80diffuse + antiglareON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90XL251DNLED11W1088 lm3000K CRI>80diffuse + antiglareDALI.L: 590mm, A: 88mm, H: 88mm
DD90XL253DNLED21W2176 lm3000K CRI>80diffuse + antiglareDALI.L: 1158mm, A: 88mm, H: 88mm
DD90XL255DNLED32W3264 lm3000K CRI>80diffuse + antiglareDALI.L: 1726mm, A: 88mm, H: 88mm
DD90XL257DNLED42W4352 lm3000K CRI>80diffuse + antiglareDALI.L: 2294mm, A: 88mm, H: 88mm
DD90XL259DNLED63W6528 lm3000K CRI>80diffuse + antiglareDALI.L: 3430mm, A: 88mm, H: 88mm
T90XL253DNLED21W2176 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - satin finish PMMA diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL206DNLED37W4122 lm4000K CRI>80diffuseON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90LL208DNLED52W5889 lm4000K CRI>80diffuseON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90LL210DNLED73W8245 lm4000K CRI>80diffuseON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90LL205DNLED32W3533 lm4000K CRI>80diffuseON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90LL202DNLED16W1767 lm4000K CRI>80diffuseDALI.L: 874mm, A: 88mm, H: 88mm
DD90LL204DNLED26W2945 lm4000K CRI>80diffuseDALI.L: 1442mm, A: 88mm, H: 88mm
T90LL207DNLED42W4711 lm4000K CRI>80diffuseON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90LL206DNLED37W4122 lm4000K CRI>80diffuseDALI.L: 2010mm, A: 88mm, H: 88mm
DD90LL208DNLED52W5889 lm4000K CRI>80diffuseDALI.L: 2862mm, A: 88mm, H: 88mm
DD90LL210DNLED73W8245 lm4000K CRI>80diffuseDALI.L: 3998mm, A: 88mm, H: 88mm
T90LL209DNLED63W7067 lm4000K CRI>80diffuseON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90LL201DNLED11W1178 lm4000K CRI>80diffuseON-OFF.L: 590mm, A: 88mm, H: 88mm
T90LL202DNLED16W1767 lm4000K CRI>80diffuseON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90LL201DNLED11W1178 lm4000K CRI>80diffuseDALI.L: 590mm, A: 88mm, H: 88mm
DD90LL203DNLED21W2356 lm4000K CRI>80diffuseDALI.L: 1158mm, A: 88mm, H: 88mm
DD90LL205DNLED32W3533 lm4000K CRI>80diffuseDALI.L: 1726mm, A: 88mm, H: 88mm
DD90LL207DNLED42W4711 lm4000K CRI>80diffuseDALI.L: 2294mm, A: 88mm, H: 88mm
DD90LL209DNLED63W7067 lm4000K CRI>80diffuseDALI.L: 3430mm, A: 88mm, H: 88mm
T90LL203DNLED21W2356 lm4000K CRI>80diffuseON-OFF.L: 1158mm, A: 88mm, H: 88mm
T90LL204DNLED26W2945 lm4000K CRI>80diffuseON-OFF.L: 1442mm, A: 88mm, H: 88mm
120

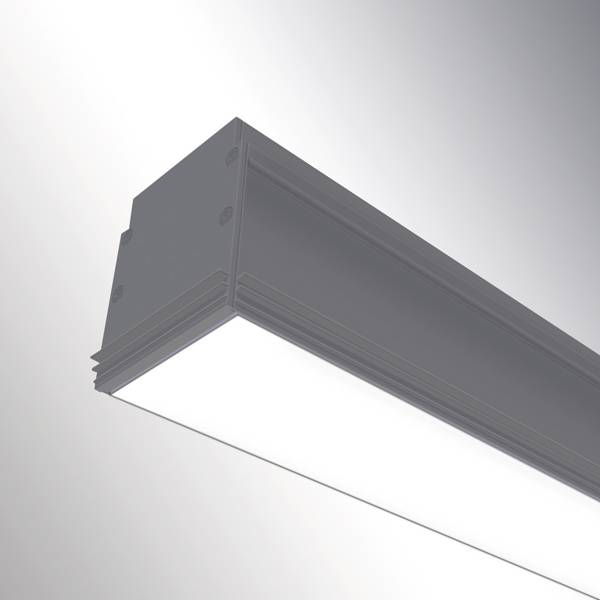

SL.EVO LED TRIMLESS SINGLE

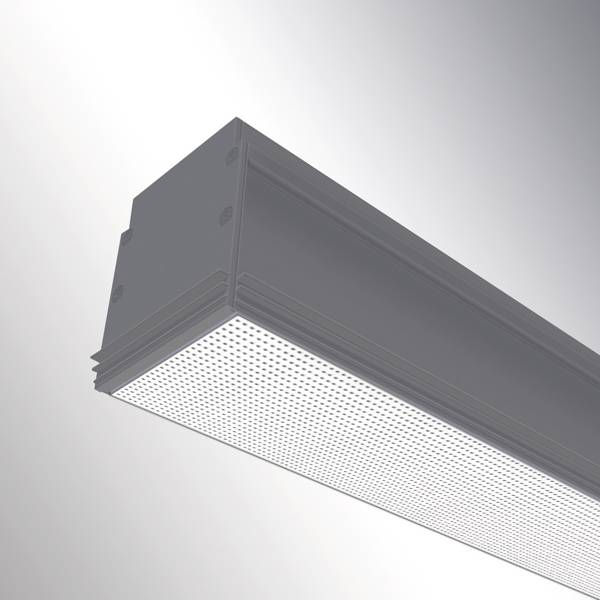

SL.EVO LED TRIMLESS single - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL404DNLED26W2001 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90WL406DNLED37W2802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90WL408DNLED52W4002 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90WL410DNLED73W5603 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90WL405DNLED32W2401 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90WL402DNLED16W1201 lm4000K CRI>80diffuse UGR<19DALI.L: 872mm, A: 85mm, H: 88mm
DD90WL404DNLED26W2001 lm4000K CRI>80diffuse UGR<19DALI.L: 1440mm, A: 85mm, H: 88mm
T90WL407DNLED42W3202 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90WL406DNLED37W2802 lm4000K CRI>80diffuse UGR<19DALI.L: 2008mm, A: 85mm, H: 88mm
DD90WL408DNLED52W4002 lm4000K CRI>80diffuse UGR<19DALI.L: 2860mm, A: 85mm, H: 88mm
DD90WL410DNLED73W5603 lm4000K CRI>80diffuse UGR<19DALI.L: 3996mm, A: 85mm, H: 88mm
T90WL409DNLED63W4802 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90WL401DNLED11W801 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 588mm, A: 85mm, H: 88mm
T90WL402DNLED16W1201 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90WL401DNLED11W801 lm4000K CRI>80diffuse UGR<19DALI.L: 588mm, A: 85mm, H: 88mm
DD90WL403DNLED21W1601 lm4000K CRI>80diffuse UGR<19DALI.L: 1156mm, A: 85mm, H: 88mm
DD90WL405DNLED32W2401 lm4000K CRI>80diffuse UGR<19DALI.L: 1724mm, A: 85mm, H: 88mm
DD90WL407DNLED42W3202 lm4000K CRI>80diffuse UGR<19DALI.L: 2292mm, A: 85mm, H: 88mm
DD90WL409DNLED63W4802 lm4000K CRI>80diffuse UGR<19DALI.L: 3428mm, A: 85mm, H: 88mm
T90WL403DNLED21W1601 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90WL454DNLED26W1802 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90WL456DNLED37W2523 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90WL458DNLED52W3604 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90WL460DNLED73W5046 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90WL455DNLED32W2163 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90WL452DNLED16W1082 lm3000K CRI>80diffuse UGR<19DALI.L: 872mm, A: 85mm, H: 88mm
DD90WL454DNLED26W1802 lm3000K CRI>80diffuse UGR<19DALI.L: 1440mm, A: 85mm, H: 88mm
T90WL457DNLED42W2884 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90WL456DNLED37W2523 lm3000K CRI>80diffuse UGR<19DALI.L: 2008mm, A: 85mm, H: 88mm
DD90WL458DNLED52W3604 lm3000K CRI>80diffuse UGR<19DALI.L: 2860mm, A: 85mm, H: 88mm
DD90WL460DNLED73W5046 lm3000K CRI>80diffuse UGR<19DALI.L: 3996mm, A: 85mm, H: 88mm
T90WL459DNLED63W4325 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90WL451DNLED11W721 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 588mm, A: 85mm, H: 88mm
T90WL452DNLED16W1082 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90WL451DNLED11W721 lm3000K CRI>80diffuse UGR<19DALI.L: 588mm, A: 85mm, H: 88mm
DD90WL453DNLED21W1442 lm3000K CRI>80diffuse UGR<19DALI.L: 1156mm, A: 85mm, H: 88mm
DD90WL455DNLED32W2163 lm3000K CRI>80diffuse UGR<19DALI.L: 1724mm, A: 85mm, H: 88mm
DD90WL457DNLED42W2884 lm3000K CRI>80diffuse UGR<19DALI.L: 2292mm, A: 85mm, H: 88mm
DD90WL459DNLED63W4325 lm3000K CRI>80diffuse UGR<19DALI.L: 3428mm, A: 85mm, H: 88mm
T90WL453DNLED21W1442 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1156mm, A: 85mm, H: 88mm

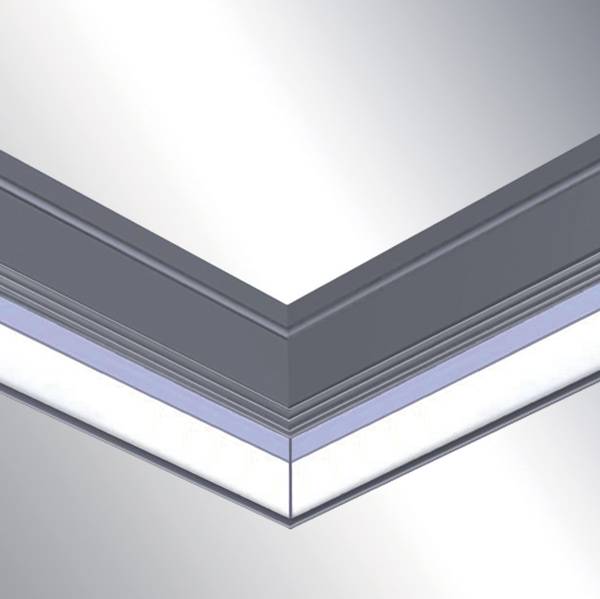

SL.EVO LED TRIMLESS single - TXT diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL404DNLED26W3020 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90XL406DNLED37W4228 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90XL408DNLED52W6040 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90XL410DNLED73W8456 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90XL405DNLED32W3624 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90XL402DNLED16W1812 lm4000K CRI>80diffuse + antiglareDALI.L: 872mm, A: 85mm, H: 88mm
DD90XL404DNLED26W3020 lm4000K CRI>80diffuse + antiglareDALI.L: 1440mm, A: 85mm, H: 88mm
T90XL407DNLED42W4832 lm4000K CRI>80diffuse + antiglareON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90XL406DNLED37W4228 lm4000K CRI>80diffuse + antiglareDALI.L: 2008mm, A: 85mm, H: 88mm
DD90XL408DNLED52W6040 lm4000K CRI>80diffuse + antiglareDALI.L: 2860mm, A: 85mm, H: 88mm
DD90XL410DNLED73W8456 lm4000K CRI>80diffuse + antiglareDALI.L: 3996mm, A: 85mm, H: 88mm
T90XL409DNLED63W7248 lm4000K CRI>80diffuse + antiglareON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90XL401DNLED11W1208 lm4000K CRI>80diffuse + antiglareON-OFF.L: 588mm, A: 85mm, H: 88mm
T90XL402DNLED16W1812 lm4000K CRI>80diffuse + antiglareON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90XL401DNLED11W1208 lm4000K CRI>80diffuse + antiglareDALI.L: 588mm, A: 85mm, H: 88mm
DD90XL403DNLED21W2416 lm4000K CRI>80diffuse + antiglareDALI.L: 1156mm, A: 85mm, H: 88mm
DD90XL405DNLED32W3624 lm4000K CRI>80diffuse + antiglareDALI.L: 1724mm, A: 85mm, H: 88mm
DD90XL407DNLED42W4832 lm4000K CRI>80diffuse + antiglareDALI.L: 2292mm, A: 85mm, H: 88mm
DD90XL409DNLED63W7248 lm4000K CRI>80diffuse + antiglareDALI.L: 3428mm, A: 85mm, H: 88mm
T90XL403DNLED21W2416 lm4000K CRI>80diffuse + antiglareON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - TXT diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90XL454DNLED26W2720 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90XL456DNLED37W3808 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90XL458DNLED52W5440 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90XL460DNLED73W7616 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90XL455DNLED32W3264 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90XL452DNLED16W1632 lm3000K CRI>80diffuse + antiglareDALI.L: 872mm, A: 85mm, H: 88mm
DD90XL454DNLED26W2720 lm3000K CRI>80diffuse + antiglareDALI.L: 1440mm, A: 85mm, H: 88mm
T90XL457DNLED42W4352 lm3000K CRI>80diffuse + antiglareON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90XL456DNLED37W3808 lm3000K CRI>80diffuse + antiglareDALI.L: 2008mm, A: 85mm, H: 88mm
DD90XL458DNLED52W5440 lm3000K CRI>80diffuse + antiglareDALI.L: 2860mm, A: 85mm, H: 88mm
DD90XL460DNLED73W7616 lm3000K CRI>80diffuse + antiglareDALI.L: 3996mm, A: 85mm, H: 88mm
T90XL459DNLED63W6528 lm3000K CRI>80diffuse + antiglareON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90XL451DNLED11W1088 lm3000K CRI>80diffuse + antiglareON-OFF.L: 588mm, A: 85mm, H: 88mm
T90XL452DNLED16W1632 lm3000K CRI>80diffuse + antiglareON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90XL451DNLED11W1088 lm3000K CRI>80diffuse + antiglareDALI.L: 588mm, A: 85mm, H: 88mm
DD90XL453DNLED21W2176 lm3000K CRI>80diffuse + antiglareDALI.L: 1156mm, A: 85mm, H: 88mm
DD90XL455DNLED32W3264 lm3000K CRI>80diffuse + antiglareDALI.L: 1724mm, A: 85mm, H: 88mm
DD90XL457DNLED42W4352 lm3000K CRI>80diffuse + antiglareDALI.L: 2292mm, A: 85mm, H: 88mm
DD90XL459DNLED63W6528 lm3000K CRI>80diffuse + antiglareDALI.L: 3428mm, A: 85mm, H: 88mm
T90XL453DNLED21W2176 lm3000K CRI>80diffuse + antiglareON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - satin finish PMMA diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL406DNLED37W4122 lm4000K CRI>80diffuseON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90LL408DNLED52W5889 lm4000K CRI>80diffuseON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90LL410DNLED73W8245 lm4000K CRI>80diffuseON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90LL405DNLED32W3533 lm4000K CRI>80diffuseON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90LL402DNLED16W1767 lm4000K CRI>80diffuseDALI.L: 872mm, A: 85mm, H: 88mm
DD90LL404DNLED26W2945 lm4000K CRI>80diffuseDALI.L: 1440mm, A: 85mm, H: 88mm
T90LL407DNLED42W4711 lm4000K CRI>80diffuseON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90LL406DNLED37W4122 lm4000K CRI>80diffuseDALI.L: 2008mm, A: 85mm, H: 88mm
DD90LL408DNLED52W5889 lm4000K CRI>80diffuseDALI.L: 2860mm, A: 85mm, H: 88mm
DD90LL410DNLED73W8245 lm4000K CRI>80diffuseDALI.L: 3996mm, A: 85mm, H: 88mm
T90LL409DNLED63W7067 lm4000K CRI>80diffuseON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90LL401DNLED11W1178 lm4000K CRI>80diffuseON-OFF.L: 588mm, A: 85mm, H: 88mm
T90LL402DNLED16W1767 lm4000K CRI>80diffuseON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90LL401DNLED11W1178 lm4000K CRI>80diffuseDALI.L: 588mm, A: 85mm, H: 88mm
DD90LL403DNLED21W2356 lm4000K CRI>80diffuseDALI.L: 1156mm, A: 85mm, H: 88mm
DD90LL405DNLED32W3533 lm4000K CRI>80diffuseDALI.L: 1724mm, A: 85mm, H: 88mm
DD90LL407DNLED42W4711 lm4000K CRI>80diffuseDALI.L: 2292mm, A: 85mm, H: 88mm
DD90LL409DNLED63W7067 lm4000K CRI>80diffuseDALI.L: 3428mm, A: 85mm, H: 88mm
T90LL403DNLED21W2356 lm4000K CRI>80diffuseON-OFF.L: 1156mm, A: 85mm, H: 88mm
T90LL404DNLED26W2945 lm4000K CRI>80diffuseON-OFF.L: 1440mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - satin finish PMMA diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
T90LL456DNLED37W3713 lm3000K CRI>80diffuseON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90LL458DNLED52W5304 lm3000K CRI>80diffuseON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90LL460DNLED73W7426 lm3000K CRI>80diffuseON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90LL455DNLED32W3182 lm3000K CRI>80diffuseON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90LL452DNLED16W1591 lm3000K CRI>80diffuseDALI.L: 872mm, A: 85mm, H: 88mm
DD90LL454DNLED26W2654 lm3000K CRI>80diffuseDALI.L: 1440mm, A: 85mm, H: 88mm
T90LL457DNLED42W4243 lm3000K CRI>80diffuseON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90LL456DNLED37W3713 lm3000K CRI>80diffuseDALI.L: 2008mm, A: 85mm, H: 88mm
DD90LL458DNLED52W5304 lm3000K CRI>80diffuseDALI.L: 2860mm, A: 85mm, H: 88mm
DD90LL460DNLED73W7426 lm3000K CRI>80diffuseDALI.L: 3996mm, A: 85mm, H: 88mm
T90LL459DNLED63W6365 lm3000K CRI>80diffuseON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90LL451DNLED11W1061 lm3000K CRI>80diffuseON-OFF.L: 588mm, A: 85mm, H: 88mm
T90LL452DNLED16W1591 lm3000K CRI>80diffuseON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90LL451DNLED11W1061 lm3000K CRI>80diffuseDALI.L: 588mm, A: 85mm, H: 88mm
DD90LL453DNLED21W2122 lm3000K CRI>80diffuseDALI.L: 1156mm, A: 85mm, H: 88mm
DD90LL455DNLED32W3182 lm3000K CRI>80diffuseDALI.L: 1724mm, A: 85mm, H: 88mm
DD90LL457DNLED42W4243 lm3000K CRI>80diffuseDALI.L: 2292mm, A: 85mm, H: 88mm
DD90LL459DNLED63W6365 lm3000K CRI>80diffuseDALI.L: 3428mm, A: 85mm, H: 88mm
T90LL453DNLED21W2122 lm3000K CRI>80diffuseON-OFF.L: 1156mm, A: 85mm, H: 88mm
T90LL454DNLED26W2654 lm3000K CRI>80diffuseON-OFF.L: 1440mm, A: 85mm, H: 88mm
112
SL.EVO LED FRAME CONTINUOUS

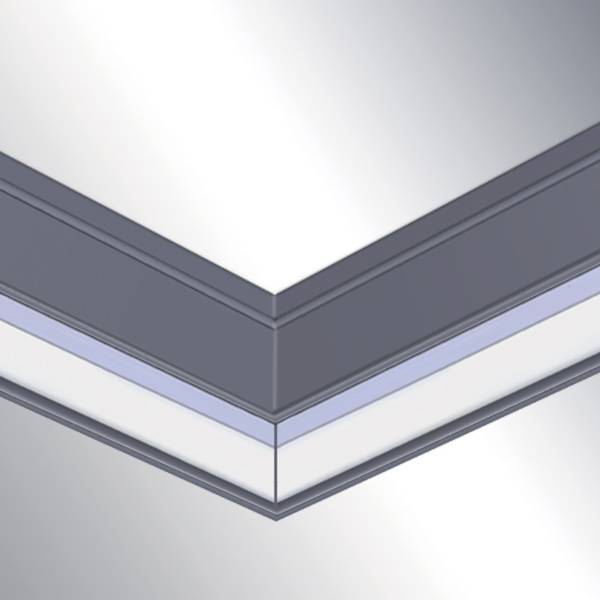

SL.EVO LED FRAME continuous - angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD900L262DNLED21W2122 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L264DNLED21W2122 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L261DNLED21W2122 lm3000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD900L263DNLED21W2122 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L261DNLED21W2122 lm3000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T900L262DNLED21W2122 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L263DNLED21W2122 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L264DNLED21W2122 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R diffuser angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD90HL212DNLED21W1600 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL214DNLED21W1600 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL211DNLED21W1600 lm4000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD90HL213DNLED21W1600 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL211DNLED21W1600 lm4000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T90HL212DNLED21W1600 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL213DNLED21W1600 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL214DNLED21W1600 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R diffuser angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD90HL262DNLED21W1442 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL264DNLED21W1442 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL261DNLED21W1442 lm3000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD90HL263DNLED21W1442 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL261DNLED21W1442 lm3000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T90HL262DNLED21W1442 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL263DNLED21W1442 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL264DNLED21W1442 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL206DNLED37W2801 lm4000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T90HL208DNLED52W4002 lm4000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T90HL210DNLED73W5602 lm4000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T90HL205DNLED32W2401 lm4000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD90HL202DNLED16W1200 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL204DNLED26W2001 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL207DNLED42W3201 lm4000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD90HL206DNLED37W2801 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL208DNLED52W4002 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL210DNLED73W5602 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL209DNLED63W4802 lm4000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T90HL201DNLED11W800 lm4000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T90HL202DNLED16W1200 lm4000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD90HL201DNLED11W800 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL203DNLED21W1601 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL205DNLED32W2401 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL207DNLED42W3201 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL209DNLED63W4802 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL203DNLED21W1601 lm4000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T90HL204DNLED26W2001 lm4000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL256DNLED37W2523 lm3000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T90HL258DNLED52W3604 lm3000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T90HL260DNLED73W5046 lm3000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T90HL255DNLED32W2162 lm3000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD90HL252DNLED16W1081 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL254DNLED26W1802 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL257DNLED42W2883 lm3000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD90HL256DNLED37W2523 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL258DNLED52W3604 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL260DNLED73W5046 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL259DNLED63W4325 lm3000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T90HL251DNLED11W721 lm3000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T90HL252DNLED16W1081 lm3000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD90HL251DNLED11W721 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL253DNLED21W1442 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL255DNLED32W2162 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL257DNLED42W2883 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL259DNLED63W4325 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL253DNLED21W1442 lm3000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T90HL254DNLED26W1802 lm3000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous - angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD900L212DNLED21W2356 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L214DNLED21W2356 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L211DNLED21W2356 lm4000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD900L213DNLED21W2356 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L211DNLED21W2356 lm4000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T900L212DNLED21W2356 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L213DNLED21W2356 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L214DNLED21W2356 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L206DNLED37W4122 lm4000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T900L208DNLED52W5889 lm4000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T900L210DNLED73W8245 lm4000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T900L205DNLED32W3533 lm4000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD900L202DNLED16W1767 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD900L204DNLED26W2945 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T900L207DNLED42W4711 lm4000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD900L206DNLED37W4122 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD900L208DNLED52W5889 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD900L210DNLED73W8245 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T900L209DNLED63W7067 lm4000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T900L201DNLED11W1178 lm4000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T900L202DNLED16W1767 lm4000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD900L201DNLED11W1178 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD900L203DNLED21W2356 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD900L205DNLED32W3533 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD900L207DNLED42W4711 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD900L209DNLED63W7067 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T900L203DNLED21W2356 lm4000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T900L204DNLED26W2945 lm4000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L256DNLED37W3713 lm3000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T900L258DNLED52W5304 lm3000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T900L260DNLED73W7426 lm3000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T900L255DNLED32W3182 lm3000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD900L252DNLED16W1591 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD900L254DNLED26W2652 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T900L257DNLED42W4243 lm3000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD900L256DNLED37W3713 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD900L258DNLED52W5304 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD900L260DNLED73W7426 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T900L259DNLED63W6365 lm3000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T900L251DNLED11W1061 lm3000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T900L252DNLED16W1591 lm3000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD900L251DNLED11W1061 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD900L253DNLED21W2122 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD900L255DNLED32W3182 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD900L257DNLED42W4243 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD900L259DNLED63W6365 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T900L253DNLED21W2122 lm3000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T900L254DNLED26W2652 lm3000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
112

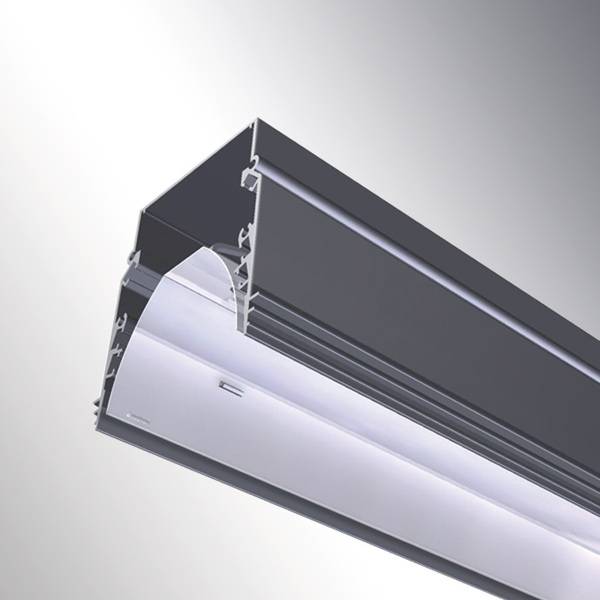

SL.EVO LED TRIMLESS CONTINUOUS
SL.EVO LED TRIMLESS continuous - TXT-R diffuser angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD90HL412DNLED21W1600 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL414DNLED21W1600 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL411DNLED21W1600 lm4000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD90HL413DNLED21W1600 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL411DNLED21W1600 lm4000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T90HL412DNLED21W1600 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL413DNLED21W1600 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL414DNLED21W1600 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R diffuser angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD90HL462DNLED21W1442 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL464DNLED21W1442 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL461DNLED21W1442 lm3000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD90HL463DNLED21W1442 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL461DNLED21W1442 lm3000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T90HL462DNLED21W1442 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL463DNLED21W1442 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL464DNLED21W1442 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R diffuser (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL406DNLED37W2801 lm4000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T90HL408DNLED52W4002 lm4000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T90HL410DNLED73W5602 lm4000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T90HL405DNLED32W2401 lm4000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD90HL402DNLED16W1200 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL404DNLED26W2001 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL407DNLED42W3201 lm4000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD90HL406DNLED37W2801 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL408DNLED52W4002 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL410DNLED73W5602 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL409DNLED63W4802 lm4000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T90HL401DNLED11W800 lm4000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T90HL402DNLED16W1200 lm4000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD90HL401DNLED11W800 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL403DNLED21W1601 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL405DNLED32W2401 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL407DNLED42W3201 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL409DNLED63W4802 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL403DNLED21W1601 lm4000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T90HL404DNLED26W2001 lm4000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R diffuser (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T90HL456DNLED37W2523 lm3000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T90HL458DNLED52W3604 lm3000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T90HL460DNLED73W5046 lm3000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T90HL455DNLED32W2162 lm3000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD90HL452DNLED16W1081 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL454DNLED26W1802 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL457DNLED42W2883 lm3000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD90HL456DNLED37W2523 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL458DNLED52W3604 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL460DNLED73W5046 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL459DNLED63W4325 lm3000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T90HL451DNLED11W721 lm3000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T90HL452DNLED16W1081 lm3000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD90HL451DNLED11W721 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL453DNLED21W1442 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL455DNLED32W2162 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL457DNLED42W2883 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL459DNLED63W4325 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL453DNLED21W1442 lm3000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T90HL454DNLED26W1802 lm3000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous - angular module (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD900L412DNLED21W2356 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L414DNLED21W2356 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L411DNLED21W2356 lm4000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD900L413DNLED21W2356 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L411DNLED21W2356 lm4000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T900L412DNLED21W2356 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L413DNLED21W2356 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L414DNLED21W2356 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - angular module (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
DD900L462DNLED21W2122 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L464DNLED21W2122 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L461DNLED21W2122 lm3000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD900L463DNLED21W2122 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L461DNLED21W2122 lm3000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T900L462DNLED21W2122 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L463DNLED21W2122 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L464DNLED21W2122 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous (4000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L406DNLED37W4122 lm4000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T900L408DNLED52W5889 lm4000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T900L410DNLED73W8245 lm4000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T900L405DNLED32W3533 lm4000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD900L402DNLED16W1767 lm4000K CRI>80DALI.L: 858mm, A: 85mm, H: 88mm
DD900L404DNLED26W2945 lm4000K CRI>80DALI.L: 1426mm, A: 85mm, H: 88mm
T900L407DNLED42W4711 lm4000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD900L406DNLED37W4122 lm4000K CRI>80DALI.L: 1994mm, A: 85mm, H: 88mm
DD900L408DNLED52W5889 lm4000K CRI>80DALI.L: 2846mm, A: 85mm, H: 88mm
DD900L410DNLED73W8245 lm4000K CRI>80DALI.L: 3982mm, A: 85mm, H: 88mm
T900L409DNLED63W7067 lm4000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T900L401DNLED11W1178 lm4000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T900L402DNLED16W1767 lm4000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD900L401DNLED11W1178 lm4000K CRI>80DALI.L: 574mm, A: 85mm, H: 88mm
DD900L403DNLED21W2356 lm4000K CRI>80DALI.L: 1142mm, A: 85mm, H: 88mm
DD900L405DNLED32W3533 lm4000K CRI>80DALI.L: 1710mm, A: 85mm, H: 88mm
DD900L407DNLED42W4711 lm4000K CRI>80DALI.L: 2278mm, A: 85mm, H: 88mm
DD900L409DNLED63W7067 lm4000K CRI>80DALI.L: 3414mm, A: 85mm, H: 88mm
T900L403DNLED21W2356 lm4000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T900L404DNLED26W2945 lm4000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous (3000K)
Item codeSource typeSystem powerOutput FluxTemperature ColourBallast typeDimensions
T900L456DNLED37W3713 lm3000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T900L458DNLED52W5304 lm3000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T900L460DNLED73W7426 lm3000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T900L455DNLED32W3182 lm3000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD900L452DNLED16W1591 lm3000K CRI>80DALI.L: 858mm, A: 85mm, H: 88mm
DD900L454DNLED26W2652 lm3000K CRI>80DALI.L: 1426mm, A: 85mm, H: 88mm
T900L457DNLED42W4243 lm3000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD900L456DNLED37W3713 lm3000K CRI>80DALI.L: 1994mm, A: 85mm, H: 88mm
DD900L458DNLED52W5304 lm3000K CRI>80DALI.L: 2846mm, A: 85mm, H: 88mm
DD900L460DNLED73W7426 lm3000K CRI>80DALI.L: 3982mm, A: 85mm, H: 88mm
T900L459DNLED63W6365 lm3000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T900L451DNLED11W1061 lm3000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T900L452DNLED16W1591 lm3000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD900L451DNLED11W1061 lm3000K CRI>80DALI.L: 574mm, A: 85mm, H: 88mm
DD900L453DNLED21W2122 lm3000K CRI>80DALI.L: 1142mm, A: 85mm, H: 88mm
DD900L455DNLED32W3182 lm3000K CRI>80DALI.L: 1710mm, A: 85mm, H: 88mm
DD900L457DNLED42W4243 lm3000K CRI>80DALI.L: 2278mm, A: 85mm, H: 88mm
DD900L459DNLED63W6365 lm3000K CRI>80DALI.L: 3414mm, A: 85mm, H: 88mm
T900L453DNLED21W2122 lm3000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T900L454DNLED26W2652 lm3000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
