D44K/T2-5VLWW-WB-DD

  • Download
  • Request Information

Product Info

Item code
D44K/T2-5VLWW-WB-DD
Installation type
ground recessed
Environments
urban landscape, façades and architectural works, wellness, hallway, conference hall, places of worship, residential lighting
Mounting type
with rough-in housing
Body
Corrosion resistant die-cast aluminium body. High impact resistant composite technopolymer housing box. AISI 316 stainless steel frame sandblasted.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Static load
3500Kg
Standard Colour
IS | stainless steel frame sandblasted

Dimensions

Weight (kg)
4
D: Total diameter device (mm)
215
Volume piece packed (m³)
0.018

Optical System

Optical System
Tempered safety glass - 10 mm thickness, mechanical and thermal shock resistant.
Beam
very wide
Emission
direct
Adjustable
Yes
Tilt
±15° VOLVENDO

Sources

MacAdam
Step 3
Output Flux
584 lm
Source type
LED
System power
13,5W
Temperature Colour
3000K CRI>80

Electrical

Ballast type
DALI.
Frequency
50-60Hz
Lifetime
50.000h L80B10 (Ta=25°C)
Line input
Pre-wired and tested with resin sealed watertight H07RN-F five poles cable.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

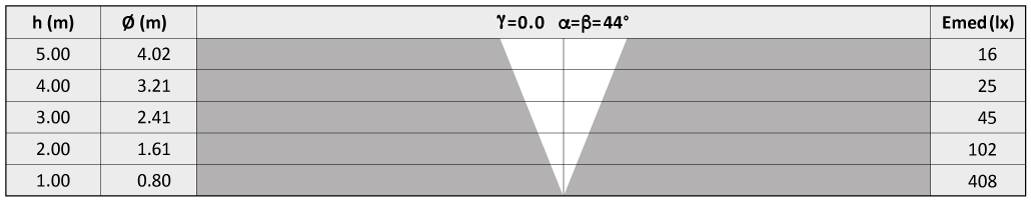

Photometrics

Optional Accessories

Electrical

ACS/CR7

IP68 connector plug and socket terminal for cable Ø7-12mm - 5x0,5-1,5mm².

ACS/FX05

3 ways IP68 wiring box for DALI looping connection.
