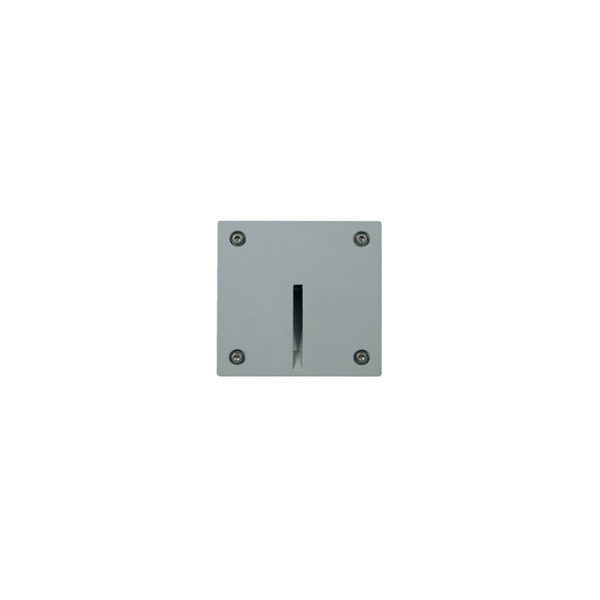

D51/01-LWNLT-MAL
Product Info
Item code
THOR D51 / D51/01-LWNLT-MAL
Category
Step light, Wall recessed, Step light, Wall recessed
Environments
urban landscape, façades and architectural works, wellness, hallway, places of worship
Mounting type
with rough-in housing
Body
Housing and trim in die-cast aluminum, resistant to corrosion.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
MAL | aluminium grey (metal)
Option colors
MGR | graphite satin finish (metal)

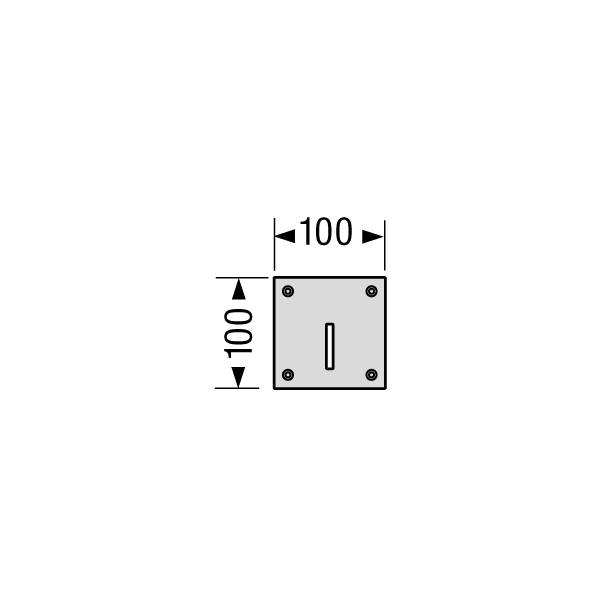

Dimensions
Total device width (mm)
100
Total device length (mm)
100
Weight (kg)
0.6
Volume piece packed (m³)
0.002
Optical System
Optical System
Safety tempered glass.
Beam
lighting blade
Emission
direct
Reflectors
Extra-pure aluminium reflector.
Adjustable
No
Photometrics
Sources
MacAdam
Step 3
Output Flux
11 lm
Source type
LED
Source power
3W
Temperature Colour
4000K CRI>80
Electrical
Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
50.000h L80B50 (Ta=25°C)
Line input
Line entry: prewired with (EN 60598-1) cable type H07RN-F with diameter between 7,5 and 12mm.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Rough-in housing
D51/01-CI
For models D51 thor/01. Rough-in housing high stress resistance composite technopolymer.
Pole

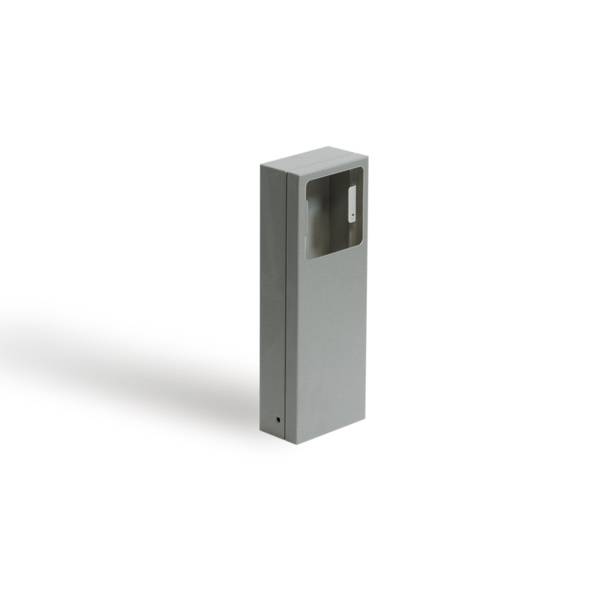

D51/01-CM-AL
For models D51 thor/01. Folded stainless steel floor installation braked. Fixing on concrete base or suitable paving. -AL ALUMINIUM
Mounting
D51/01-MS-AL
For models D51 thor/01. Wall bracked installation. -AL ALUMINIUM
