AXEL D88

  • Richiedi informazioni
Axel è una famiglia di downlight per incasso a soffito, in versione da interno o per ambienti umidi. La vasta gamma di misure, potenze e ottiche soddisfano, in modo professionale, ogni esigenza applicativa. Il faretto Axel è di semplice installazione e può essere montato su pannelli di spessore 5-20 mm, disponibile in versione fixed o adjustable, trim o trimless.

prodotti (7)

48
AXEL TRIM Ø55
AXEL TRIM Ø55 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FT55-3L927NB-LWLED6W300 lm 2700K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3L927MB-LWLED6W350 lm 2700K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3L927WB-LWLED6W400 lm 2700K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3L927DB-LWLED6W450 lm 2700K CRI>90diffusoD: 63mm, H: 92mm
D88/FT55-3L930NB-LWLED6W330 lm 3000K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3L930MB-LWLED6W380 lm 3000K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3L930WB-LWLED6W430 lm 3000K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3L930DB-LWLED6W480 lm 3000K CRI>90diffusoD: 63mm, H: 92mm
D88/FT55-3L940NB-LWLED6W350 lm 4000K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3L940MB-LWLED6W400 lm 4000K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3L940WB-LWLED6W450 lm 4000K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3L940DB-LWLED6W500 lm 4000K CRI>90diffusoD: 63mm, H: 92mm
D88/FT55-3H927NB-LWLED8W400 lm 2700K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3H927MB-LWLED8W460 lm 2700K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3H927WB-LWLED8W530 lm 2700K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3H927DB-LWLED8W600 lm 2700K CRI>90diffusoD: 63mm, H: 92mm
D88/FT55-3H930NB-LWLED8W440 lm 3000K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3H930MB-LWLED8W500 lm 3000K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3H930WB-LWLED8W570 lm 3000K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3H930DB-LWLED8W640 lm 3000K CRI>90diffusoD: 63mm, H: 92mm
D88/FT55-3H940NB-LWLED8W460 lm 4000K CRI>90strettoD: 63mm, H: 92mm
D88/FT55-3H940MB-LWLED8W530 lm 4000K CRI>90medioD: 63mm, H: 92mm
D88/FT55-3H940WB-LWLED8W600 lm 4000K CRI>90largoD: 63mm, H: 92mm
D88/FT55-3H940DB-LWLED8W660 lm 4000K CRI>90diffusoD: 63mm, H: 92mm
AXEL TRIM Ø55 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AT55-3L927NB-LWLED6W300 lm 2700K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3L927MB-LWLED6W350 lm 2700K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3L927WB-LWLED6W400 lm 2700K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3L927DB-LWLED6W450 lm 2700K CRI>90diffusoD: 63mm, H: 92mm
D88/AT55-3L930NB-LWLED6W330 lm 3000K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3L930MB-LWLED6W380 lm 3000K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3L930WB-LWLED6W430 lm 3000K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3L930DB-LWLED6W480 lm 3000K CRI>90diffusoD: 63mm, H: 92mm
D88/AT55-3L940NB-LWLED6W350 lm 4000K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3L940MB-LWLED6W400 lm 4000K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3L940WB-LWLED6W450 lm 4000K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3L940DB-LWLED6W500 lm 4000K CRI>90diffusoD: 63mm, H: 92mm
D88/AT55-3H927NB-LWLED8W400 lm 2700K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3H927MB-LWLED8W460 lm 2700K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3H927WB-LWLED8W530 lm 2700K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3H927DB-LWLED8W600 lm 2700K CRI>90diffusoD: 63mm, H: 92mm
D88/AT55-3H930NB-LWLED8W440 lm 3000K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3H930MB-LWLED8W500 lm 3000K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3H930WB-LWLED8W570 lm 3000K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3H930DB-LWLED8W640 lm 3000K CRI>90diffusoD: 63mm, H: 92mm
D88/AT55-3H940NB-LWLED8W460 lm 4000K CRI>90strettoD: 63mm, H: 92mm
D88/AT55-3H940MB-LWLED8W530 lm 4000K CRI>90medioD: 63mm, H: 92mm
D88/AT55-3H940WB-LWLED8W600 lm 4000K CRI>90largoD: 63mm, H: 92mm
D88/AT55-3H940DB-LWLED8W660 lm 4000K CRI>90diffusoD: 63mm, H: 92mm
48
AXEL TRIMLESS Ø60

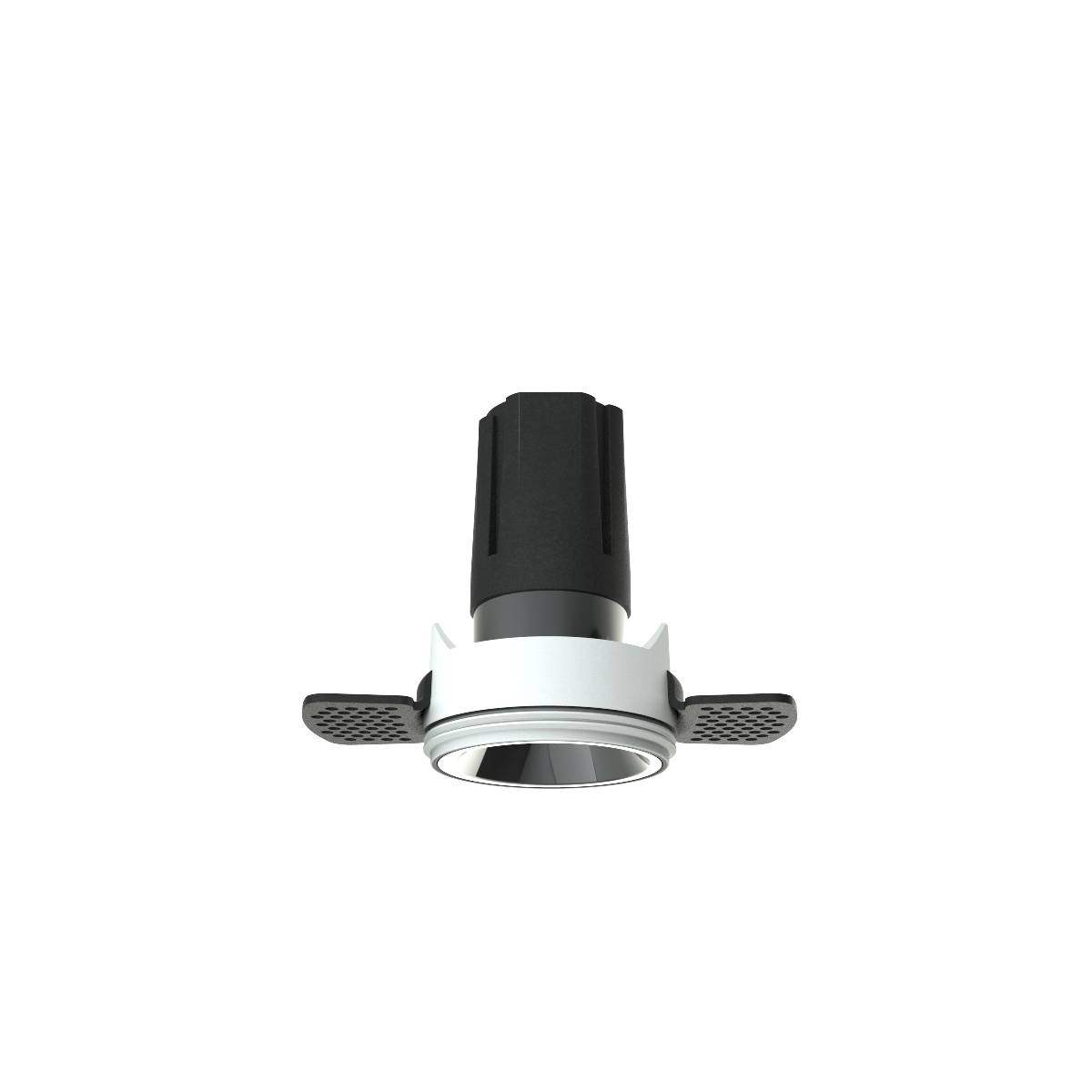

AXEL TRIMLESS Ø60 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FL60-3L927NB-LWLED6W300 lm 2700K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3L927MB-LWLED6W350 lm 2700K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3L927WB-LWLED6W400 lm 2700K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3L927DB-LWLED6W450 lm 2700K CRI>90diffusoD: 58.5mm, H: 92mm
D88/FL60-3L930NB-LWLED6W330 lm 3000K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3L930MB-LWLED6W380 lm 3000K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3L930WB-LWLED6W430 lm 3000K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3L930DB-LWLED6W480 lm 3000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/FL60-3L940NB-LWLED6W350 lm 4000K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3L940MB-LWLED6W400 lm 4000K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3L940WB-LWLED6W450 lm 4000K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3L940DB-LWLED6W500 lm 4000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/FL60-3H927NB-LWLED8W400 lm 2700K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3H927MB-LWLED8W460 lm 2700K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3H927WB-LWLED8W530 lm 2700K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3H927DB-LWLED8W600 lm 2700K CRI>90diffusoD: 58.5mm, H: 92mm
D88/FL60-3H930NB-LWLED8W440 lm 3000K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3H930MB-LWLED8W500 lm 3000K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3H930WB-LWLED8W570 lm 3000K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3H930DB-LWLED8W640 lm 3000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/FL60-3H940NB-LWLED8W460 lm 4000K CRI>90strettoD: 58.5mm, H: 92mm
D88/FL60-3H940MB-LWLED8W530 lm 4000K CRI>90medioD: 58.5mm, H: 92mm
D88/FL60-3H940WB-LWLED8W600 lm 4000K CRI>90largoD: 58.5mm, H: 92mm
D88/FL60-3H940DB-LWLED8W660 lm 4000K CRI>90diffusoD: 58.5mm, H: 92mm

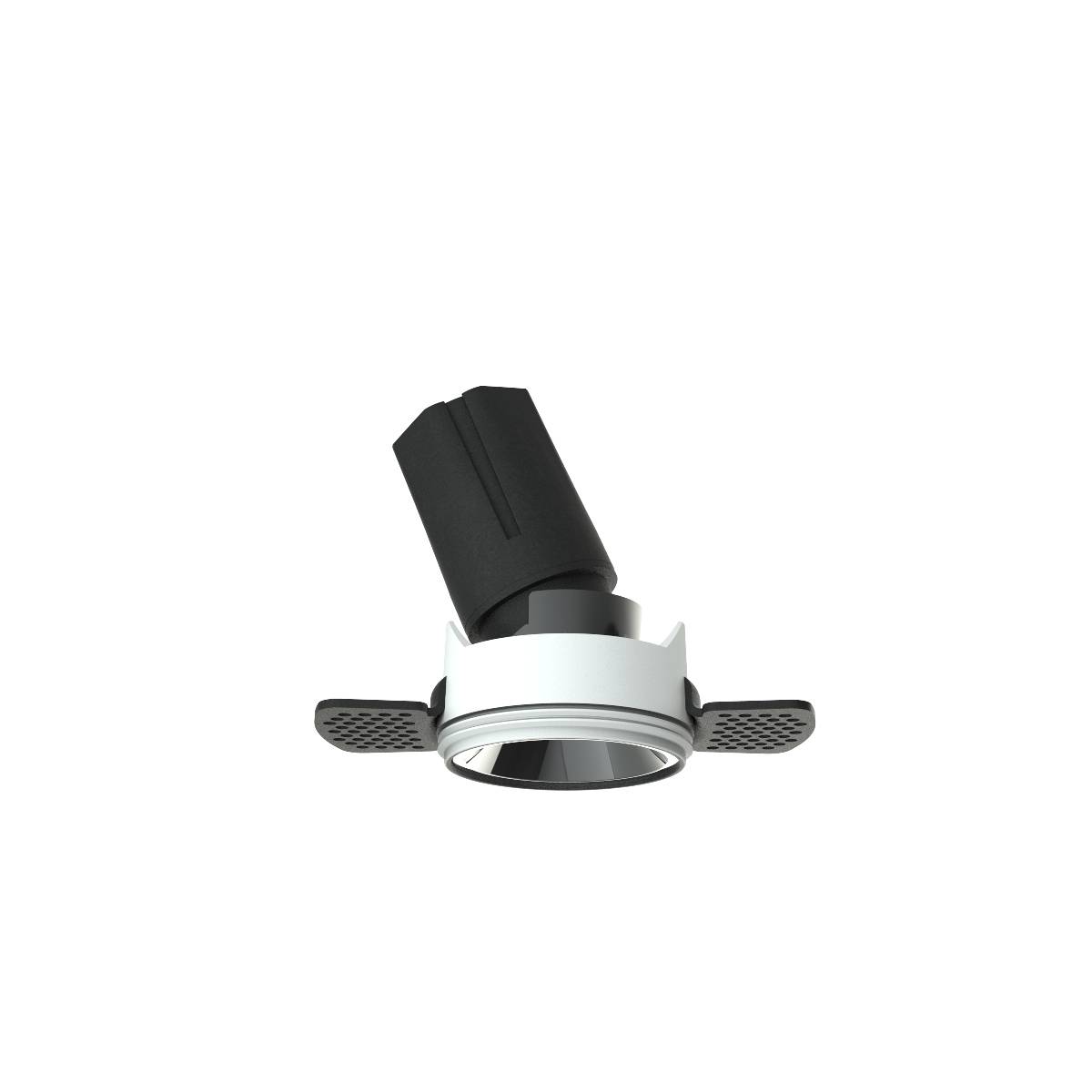

AXEL TRIMLESS Ø60 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AL60-3L927NB-LWLED6W300 lm 2700K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3L927MB-LWLED6W350 lm 2700K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3L927WB-LWLED6W400 lm 2700K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3L927DB-LWLED6W450 lm 2700K CRI>90diffusoD: 58.5mm, H: 92mm
D88/AL60-3L930NB-LWLED6W330 lm 3000K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3L930MB-LWLED6W380 lm 3000K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3L930WB-LWLED6W430 lm 3000K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3L930DB-LWLED6W480 lm 3000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/AL60-3L940NB-LWLED6W350 lm 4000K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3L940MB-LWLED6W400 lm 4000K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3L940WB-LWLED6W450 lm 4000K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3L940DB-LWLED6W500 lm 4000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/AL60-3H927NB-LWLED8W400 lm 2700K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3H927MB-LWLED8W460 lm 2700K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3H927WB-LWLED8W530 lm 2700K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3H927DB-LWLED8W600 lm 2700K CRI>90diffusoD: 58.5mm, H: 92mm
D88/AL60-3H930NB-LWLED8W440 lm 3000K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3H930MB-LWLED8W500 lm 3000K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3H930WB-LWLED8W570 lm 3000K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3H930DB-LWLED8W640 lm 3000K CRI>90diffusoD: 58.5mm, H: 92mm
D88/AL60-3H940NB-LWLED8W460 lm 4000K CRI>90strettoD: 58.5mm, H: 92mm
D88/AL60-3H940MB-LWLED8W530 lm 4000K CRI>90medioD: 58.5mm, H: 92mm
D88/AL60-3H940WB-LWLED8W600 lm 4000K CRI>90largoD: 58.5mm, H: 92mm
D88/AL60-3H940DB-LWLED8W660 lm 4000K CRI>90diffusoD: 58.5mm, H: 92mm
51
AXEL TRIM Ø80
AXEL TRIM Ø80 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FT80-3M927NB-LWLED12W975 lm 2700K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3M927MB-LWLED12W1035 lm 2700K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3M927WB-LWLED12W1035 lm 2700K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3M927DB-LWLED12W1035 lm 2700K CRI>90diffusoD: 90mm, H: 106mm
D88/FT80-3M927WW-LWLED12W640 lm 2700K CRI>90wall washerD: 90mm, H: 86mm
D88/FT80-3M930NB-LWLED12W1020 lm 3000K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3M930MB-LWLED12W1080 lm 3000K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3M930WB-LWLED12W1080 lm 3000K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3M930DB-LWLED12W1080 lm 3000K CRI>90diffusoD: 90mm, H: 106mm
D88/FT80-3M930WW-LWLED12W660 lm 3000K CRI>90wall washerD: 90mm, H: 86mm
D88/FT80-3M940NB-LWLED12W1020 lm 4000K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3M940MB-LWLED12W1080 lm 4000K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3M940WB-LWLED12W1080 lm 4000K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3M940DB-LWLED12W1080 lm 4000K CRI>90diffusoD: 90mm, H: 106mm
D88/FT80-3M940WW-LWLED12W680 lm 4000K CRI>90wall washerD: 90mm, H: 86mm
D88/FT80-3H927NB-LWLED15W1090 lm 2700K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3H927MB-LWLED15W1160 lm 2700K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3H927WB-LWLED15W1160 lm 2700K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3H927DB-LWLED15W1160 lm 2700K CRI>90diffusoD: 90mm, H: 106mm
D88/FT80-3H930NB-LWLED15W1140 lm 3000K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3H930MB-LWLED15W1215 lm 3000K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3H930WB-LWLED15W1215 lm 3000K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3H930DB-LWLED15W1215 lm 3000K CRI>90diffusoD: 90mm, H: 106mm
D88/FT80-3H940NB-LWLED15W1140 lm 4000K CRI>90strettoD: 90mm, H: 106mm
D88/FT80-3H940MB-LWLED15W1215 lm 4000K CRI>90medioD: 90mm, H: 106mm
D88/FT80-3H940WB-LWLED15W1215 lm 4000K CRI>90largoD: 90mm, H: 106mm
D88/FT80-3H940DB-LWLED15W1215 lm 4000K CRI>90diffusoD: 90mm, H: 106mm

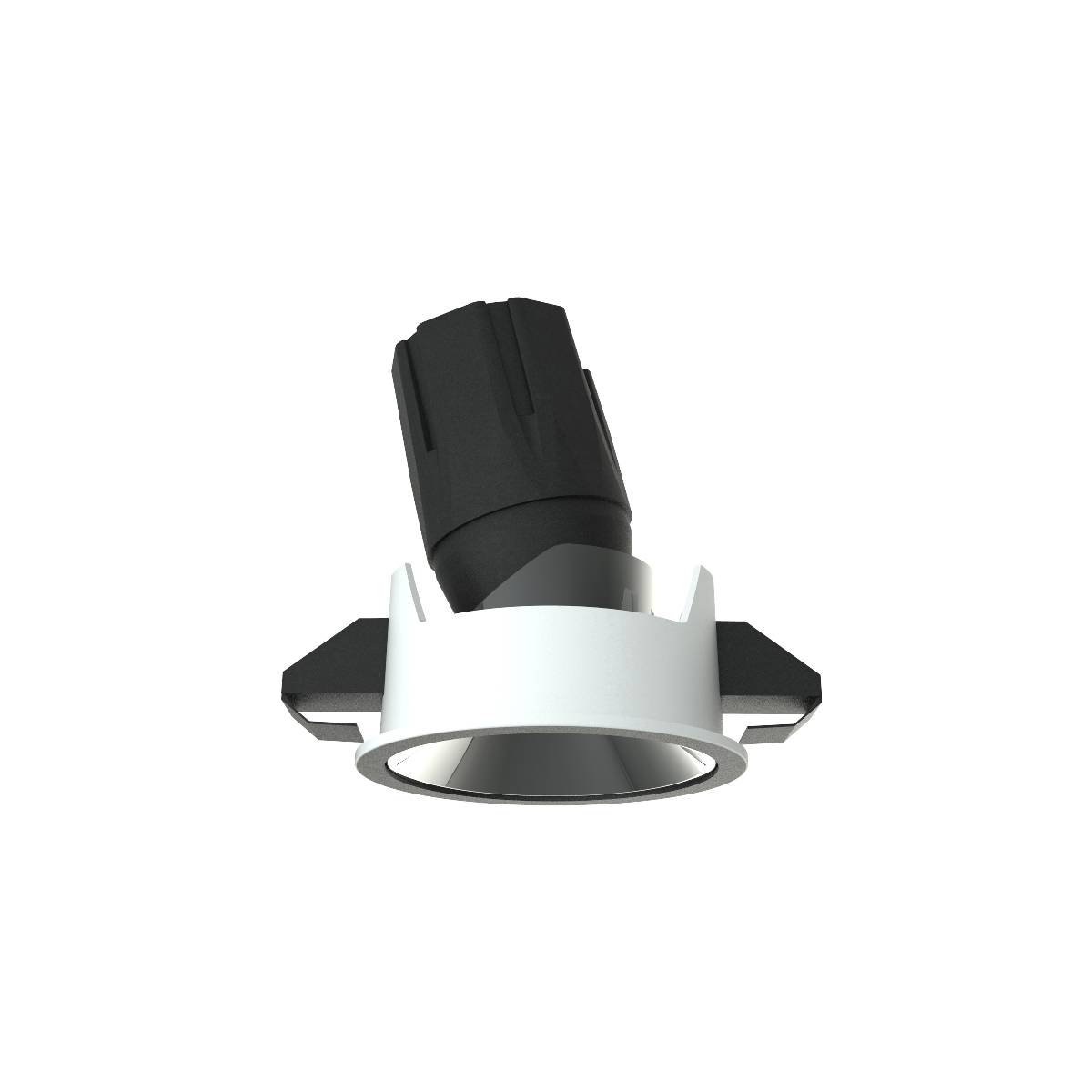

AXEL TRIM Ø80 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AT80-3M927NB-LWLED12W975 lm 2700K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3M927MB-LWLED12W1035 lm 2700K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3M927WB-LWLED12W1035 lm 2700K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3M927DB-LWLED12W1035 lm 2700K CRI>90diffusoD: 90mm, H: 111mm
D88/AT80-3M930NB-LWLED12W1020 lm 3000K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3M930MB-LWLED12W1080 lm 3000K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3M930WB-LWLED12W1080 lm 3000K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3M930DB-LWLED12W1080 lm 3000K CRI>90diffusoD: 90mm, H: 111mm
D88/AT80-3M940NB-LWLED12W1020 lm 4000K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3M940MB-LWLED12W1080 lm 4000K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3M940WB-LWLED12W1080 lm 4000K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3M940DB-LWLED12W1080 lm 4000K CRI>90diffusoD: 90mm, H: 111mm
D88/AT80-3H927NB-LWLED15W1090 lm 2700K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3H927MB-LWLED15W1160 lm 2700K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3H927WB-LWLED15W1160 lm 2700K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3H927DB-LWLED15W1160 lm 2700K CRI>90diffusoD: 90mm, H: 111mm
D88/AT80-3H930NB-LWLED15W1140 lm 3000K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3H930MB-LWLED15W1215 lm 3000K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3H930WB-LWLED15W1215 lm 3000K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3H930DB-LWLED15W1215 lm 3000K CRI>90diffusoD: 90mm, H: 111mm
D88/AT80-3H940NB-LWLED15W1140 lm 4000K CRI>90strettoD: 90mm, H: 111mm
D88/AT80-3H940MB-LWLED15W1215 lm 4000K CRI>90medioD: 90mm, H: 111mm
D88/AT80-3H940WB-LWLED15W1215 lm 4000K CRI>90largoD: 90mm, H: 111mm
D88/AT80-3H940DB-LWLED15W1215 lm 4000K CRI>90diffusoD: 90mm, H: 111mm
51

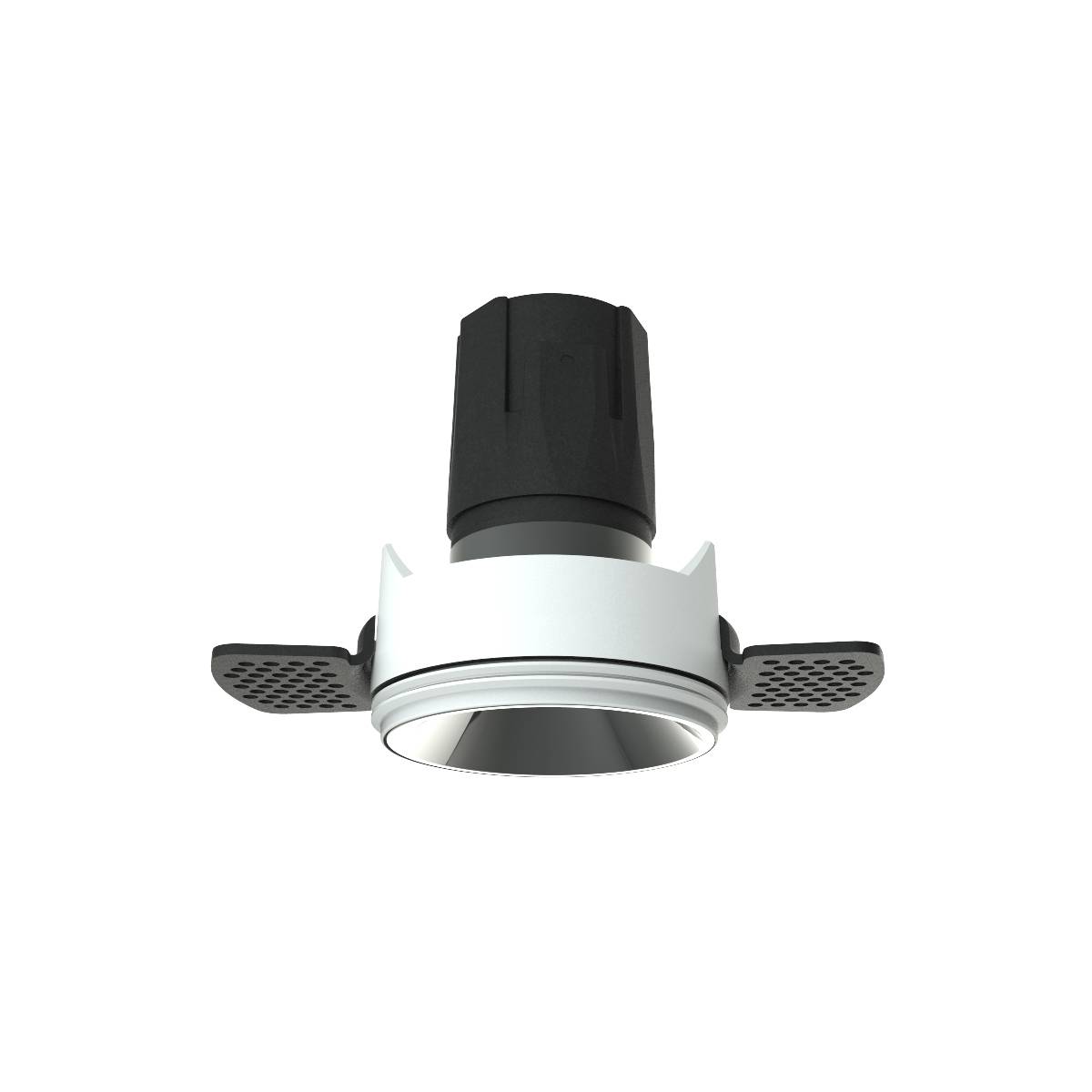

AXEL TRIMLESS Ø85
AXEL TRIMLESS Ø85 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FL85-3M927NB-LWLED12W975 lm 2700K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3M927MB-LWLED12W1035 lm 2700K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3M927WB-LWLED12W1035 lm 2700K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3M927DB-LWLED12W1035 lm 2700K CRI>90diffusoD: 85mm, H: 106mm
D88/FL85-3M927WW-LWLED12W640 lm 2700K CRI>90wall washerD: 85mm, H: 86mm
D88/FL85-3M930NB-LWLED12W1020 lm 3000K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3M930MB-LWLED12W1080 lm 3000K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3M930WB-LWLED12W1080 lm 3000K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3M930DB-LWLED12W1080 lm 3000K CRI>90diffusoD: 85mm, H: 106mm
D88/FL85-3M930WW-LWLED12W660 lm 3000K CRI>90wall washerD: 85mm, H: 86mm
D88/FL85-3M940NB-LWLED12W1020 lm 4000K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3M940MB-LWLED12W1080 lm 4000K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3M940WB-LWLED12W1080 lm 4000K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3M940DB-LWLED12W1080 lm 4000K CRI>90diffusoD: 85mm, H: 106mm
D88/FL85-3M940WW-LWLED12W680 lm 4000K CRI>90wall washerD: 85mm, H: 86mm
D88/FL85-3H927NB-LWLED15W1090 lm 2700K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3H927MB-LWLED15W1160 lm 2700K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3H927WB-LWLED15W1160 lm 2700K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3H927DB-LWLED15W1160 lm 2700K CRI>90diffusoD: 85mm, H: 106mm
D88/FL85-3H930NB-LWLED15W1140 lm 3000K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3H930MB-LWLED15W1215 lm 3000K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3H930WB-LWLED15W1215 lm 3000K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3H930DB-LWLED15W1215 lm 3000K CRI>90diffusoD: 85mm, H: 106mm
D88/FL85-3H940NB-LWLED15W1140 lm 4000K CRI>90strettoD: 85mm, H: 106mm
D88/FL85-3H940MB-LWLED15W1215 lm 4000K CRI>90medioD: 85mm, H: 106mm
D88/FL85-3H940WB-LWLED15W1215 lm 4000K CRI>90largoD: 85mm, H: 106mm
D88/FL85-3H940DB-LWLED15W1215 lm 4000K CRI>90diffusoD: 85mm, H: 106mm
AXEL TRIMLESS Ø85 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AL85-3M927NB-LWLED12W975 lm 2700K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3M927MB-LWLED12W1035 lm 2700K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3M927WB-LWLED12W1035 lm 2700K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3M927DB-LWLED12W1035 lm 2700K CRI>90diffusoD: 85mm, H: 111mm
D88/AL85-3M930NB-LWLED12W1020 lm 3000K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3M930MB-LWLED12W1080 lm 3000K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3M930WB-LWLED12W1080 lm 3000K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3M930DB-LWLED12W1080 lm 3000K CRI>90diffusoD: 85mm, H: 111mm
D88/AL85-3M940NB-LWLED12W1020 lm 4000K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3M940MB-LWLED12W1080 lm 4000K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3M940WB-LWLED12W1080 lm 4000K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3M940DB-LWLED12W1080 lm 4000K CRI>90diffusoD: 85mm, H: 111mm
D88/AL85-3H927NB-LWLED15W1090 lm 2700K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3H927MB-LWLED15W1160 lm 2700K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3H927WB-LWLED15W1160 lm 2700K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3H927DB-LWLED15W1160 lm 2700K CRI>90diffusoD: 85mm, H: 111mm
D88/AL85-3H930NB-LWLED15W1140 lm 3000K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3H930MB-LWLED15W1215 lm 3000K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3H930WB-LWLED15W1215 lm 3000K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3H930DB-LWLED15W1215 lm 3000K CRI>90diffusoD: 85mm, H: 111mm
D88/AL85-3H940NB-LWLED15W1140 lm 4000K CRI>90strettoD: 85mm, H: 111mm
D88/AL85-3H940MB-LWLED15W1215 lm 4000K CRI>90medioD: 85mm, H: 111mm
D88/AL85-3H940WB-LWLED15W1215 lm 4000K CRI>90largoD: 85mm, H: 111mm
D88/AL85-3H940DB-LWLED15W1215 lm 4000K CRI>90diffusoD: 85mm, H: 111mm
48
AXEL TRIM Ø105

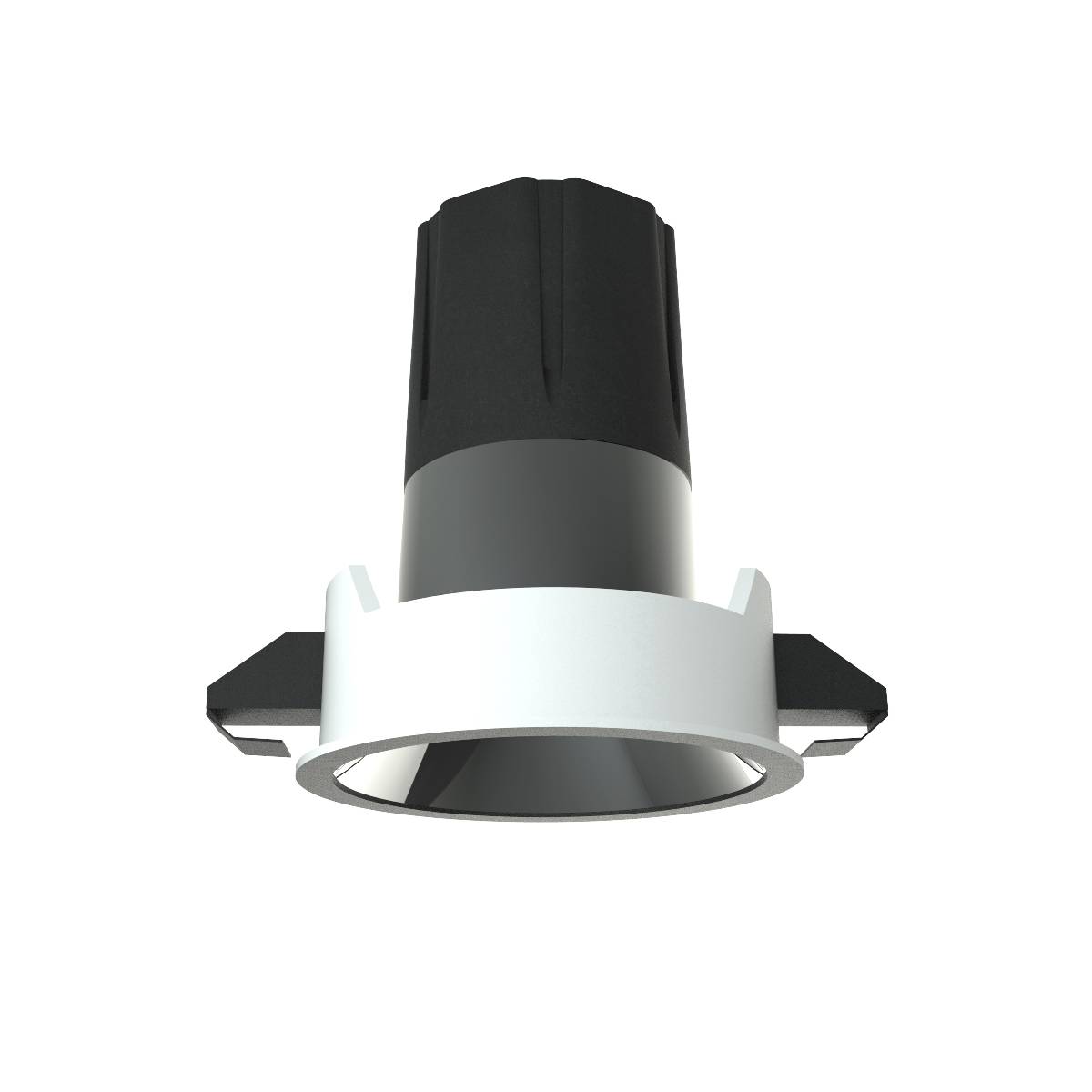

AXEL TRIM Ø105 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FT105-3M927NB-LWLED20W1650 lm 2700K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3M927MB-LWLED20W1850 lm 2700K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3M927WB-LWLED20W1850 lm 2700K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3M927DB-LWLED20W1850 lm 2700K CRI>90diffusoD: 115mm, H: 143mm
D88/FT105-3M930NB-LWLED20W1700 lm 3000K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3M930MB-LWLED20W1900 lm 3000K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3M930WB-LWLED20W1900 lm 3000K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3M930DB-LWLED20W1900 lm 3000K CRI>90diffusoD: 115mm, H: 143mm
D88/FT105-3M940NB-LWLED20W1700 lm 4000K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3M940MB-LWLED20W1900 lm 4000K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3M940WB-LWLED20W1900 lm 4000K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3M940DB-LWLED20W1900 lm 4000K CRI>90diffusoD: 115mm, H: 143mm
D88/FT105-3H927NB-LWLED25W1900 lm 2700K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3H927MB-LWLED25W2100 lm 2700K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3H927WB-LWLED25W2100 lm 2700K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3H927DB-LWLED25W2100 lm 2700K CRI>90diffusoD: 115mm, H: 143mm
D88/FT105-3H930NB-LWLED25W2000 lm 3000K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3H930MB-LWLED25W2200 lm 3000K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3H930WB-LWLED25W2200 lm 3000K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3H930DB-LWLED25W2200 lm 3000K CRI>90diffusoD: 115mm, H: 143mm
D88/FT105-3H940NB-LWLED25W2000 lm 4000K CRI>90strettoD: 115mm, H: 143mm
D88/FT105-3H940MB-LWLED25W2200 lm 4000K CRI>90medioD: 115mm, H: 143mm
D88/FT105-3H940WB-LWLED25W2200 lm 4000K CRI>90largoD: 115mm, H: 143mm
D88/FT105-3H940DB-LWLED25W2200 lm 4000K CRI>90diffusoD: 115mm, H: 143mm
AXEL TRIM Ø105 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AT105-3M927NB-LWLED20W1650 lm 2700K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3M927MB-LWLED20W1850 lm 2700K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3M927WB-LWLED20W1850 lm 2700K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3M927DB-LWLED20W1850 lm 2700K CRI>90diffusoD: 115mm, H: 140mm
D88/AT105-3M930NB-LWLED20W1700 lm 3000K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3M930MB-LWLED20W1900 lm 3000K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3M930WB-LWLED20W1900 lm 3000K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3M930DB-LWLED20W1900 lm 3000K CRI>90diffusoD: 115mm, H: 140mm
D88/AT105-3M940NB-LWLED20W1700 lm 4000K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3M940MB-LWLED20W1900 lm 4000K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3M940WB-LWLED20W1900 lm 4000K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3M940DB-LWLED20W1900 lm 4000K CRI>90diffusoD: 115mm, H: 140mm
D88/AT105-3H927NB-LWLED25W1900 lm 2700K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3H927MB-LWLED25W2100 lm 2700K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3H927WB-LWLED25W2100 lm 2700K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3H927DB-LWLED25W2100 lm 2700K CRI>90diffusoD: 115mm, H: 140mm
D88/AT105-3H930NB-LWLED25W2000 lm 3000K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3H930MB-LWLED25W2200 lm 3000K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3H930WB-LWLED25W2200 lm 3000K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3H930DB-LWLED25W2200 lm 3000K CRI>90diffusoD: 115mm, H: 140mm
D88/AT105-3H940NB-LWLED25W2000 lm 4000K CRI>90strettoD: 115mm, H: 140mm
D88/AT105-3H940MB-LWLED25W2200 lm 4000K CRI>90medioD: 115mm, H: 140mm
D88/AT105-3H940WB-LWLED25W2200 lm 4000K CRI>90largoD: 115mm, H: 140mm
D88/AT105-3H940DB-LWLED25W2200 lm 4000K CRI>90diffusoD: 115mm, H: 140mm
48
AXEL TRIMLESS Ø110

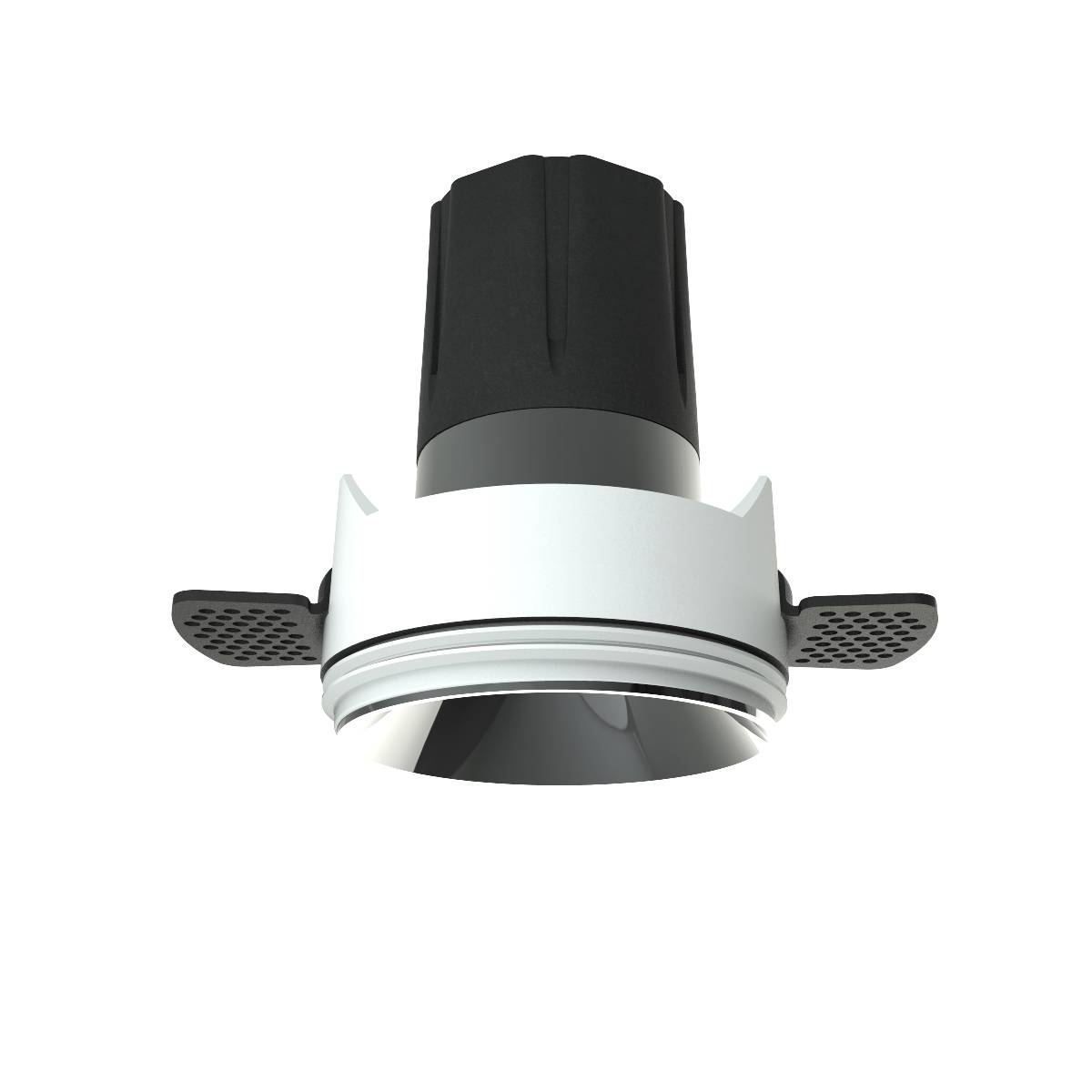

AXEL TRIMLESS Ø110 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FL105-3M927NB-LWLED20W1650 lm 2700K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3M927MB-LWLED20W1850 lm 2700K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3M927WB-LWLED20W1850 lm 2700K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3M927DB-LWLED20W1850 lm 2700K CRI>90diffusoD: 110mm, H: 143mm
D88/FL105-3M930NB-LWLED20W1700 lm 3000K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3M930MB-LWLED20W1900 lm 3000K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3M930WB-LWLED20W1900 lm 3000K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3M930DB-LWLED20W1900 lm 3000K CRI>90diffusoD: 110mm, H: 143mm
D88/FL105-3M940NB-LWLED20W1700 lm 4000K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3M940MB-LWLED20W1900 lm 4000K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3M940WB-LWLED20W1900 lm 4000K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3M940DB-LWLED20W1900 lm 4000K CRI>90diffusoD: 110mm, H: 143mm
D88/FL105-3H927NB-LWLED25W1900 lm 2700K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3H927MB-LWLED25W2100 lm 2700K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3H927WB-LWLED25W2100 lm 2700K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3H927DB-LWLED25W2100 lm 2700K CRI>90diffusoD: 110mm, H: 143mm
D88/FL105-3H930NB-LWLED25W2000 lm 3000K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3H930MB-LWLED25W2200 lm 3000K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3H930WB-LWLED25W2200 lm 3000K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3H930DB-LWLED25W2200 lm 3000K CRI>90diffusoD: 110mm, H: 143mm
D88/FL105-3H940NB-LWLED25W2000 lm 4000K CRI>90strettoD: 110mm, H: 143mm
D88/FL105-3H940MB-LWLED25W2200 lm 4000K CRI>90medioD: 110mm, H: 143mm
D88/FL105-3H940WB-LWLED25W2200 lm 4000K CRI>90largoD: 110mm, H: 143mm
D88/FL105-3H940DB-LWLED25W2200 lm 4000K CRI>90diffusoD: 110mm, H: 143mm

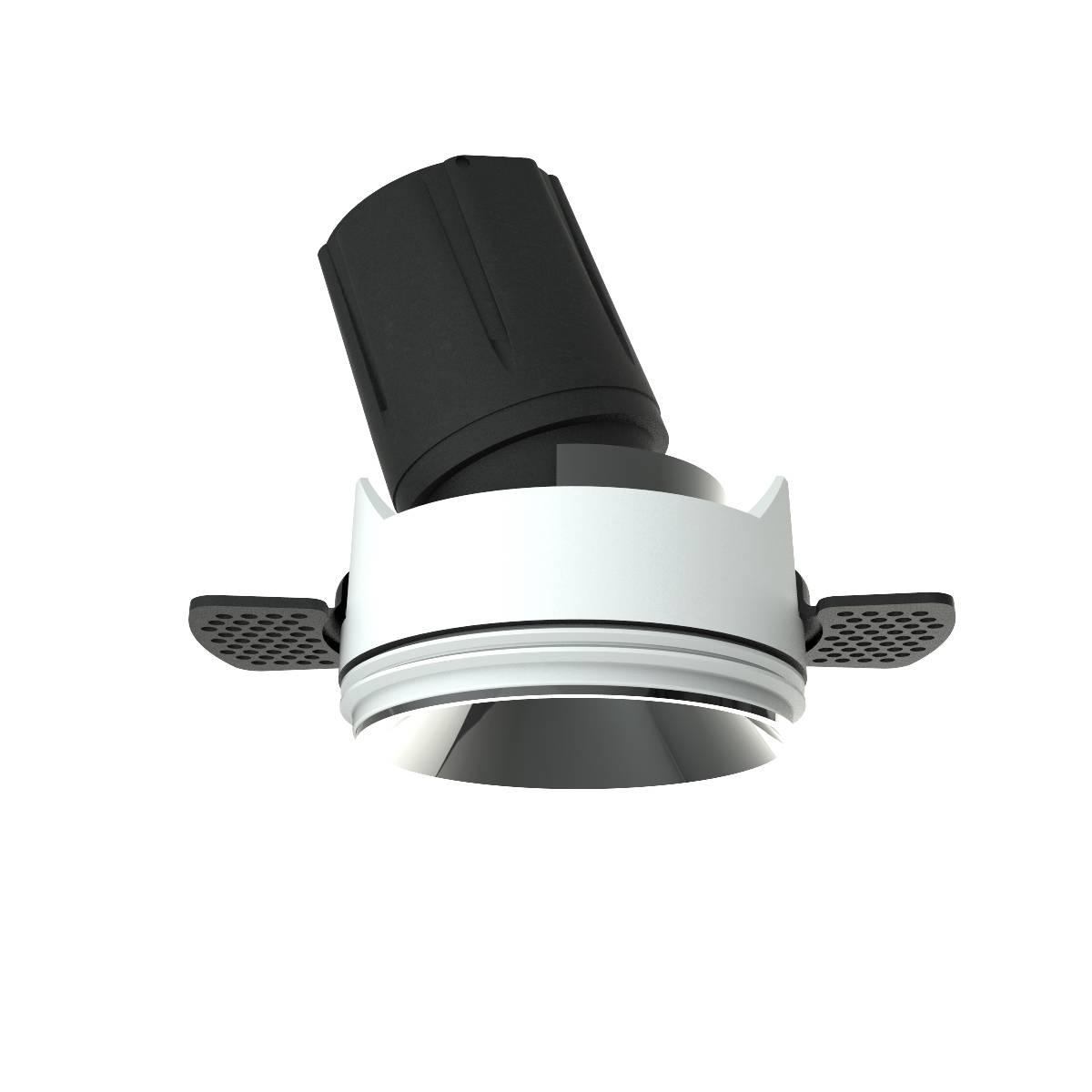

AXEL TRIMLESS Ø110 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AL105-3M927NB-LWLED20W1650 lm 2700K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3M927MB-LWLED20W1850 lm 2700K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3M927WB-LWLED20W1850 lm 2700K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3M927DB-LWLED20W1850 lm 2700K CRI>90diffusoD: 110mm, H: 140mm
D88/AL105-3M930NB-LWLED20W1700 lm 3000K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3M930MB-LWLED20W1900 lm 3000K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3M930WB-LWLED20W1900 lm 3000K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3M930DB-LWLED20W1900 lm 3000K CRI>90diffusoD: 110mm, H: 140mm
D88/AL105-3M940NB-LWLED20W1700 lm 4000K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3M940MB-LWLED20W1900 lm 4000K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3M940WB-LWLED20W1900 lm 4000K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3M940DB-LWLED20W1900 lm 4000K CRI>90diffusoD: 110mm, H: 140mm
D88/AL105-3H927NB-LWLED25W1900 lm 2700K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3H927MB-LWLED25W2100 lm 2700K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3H927WB-LWLED25W2100 lm 2700K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3H927DB-LWLED25W2100 lm 2700K CRI>90diffusoD: 110mm, H: 140mm
D88/AL105-3H930NB-LWLED25W2000 lm 3000K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3H930MB-LWLED25W2200 lm 3000K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3H930WB-LWLED25W2200 lm 3000K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3H930DB-LWLED25W2200 lm 3000K CRI>90diffusoD: 110mm, H: 140mm
D88/AL105-3H940NB-LWLED25W2000 lm 4000K CRI>90strettoD: 110mm, H: 140mm
D88/AL105-3H940MB-LWLED25W2200 lm 4000K CRI>90medioD: 110mm, H: 140mm
D88/AL105-3H940WB-LWLED25W2200 lm 4000K CRI>90largoD: 110mm, H: 140mm
D88/AL105-3H940DB-LWLED25W2200 lm 4000K CRI>90diffusoD: 110mm, H: 140mm
48
AXEL TRIM Ø130
AXEL TRIM Ø130 FIXED
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/FT130-3M927NB-LWLED30W2600 lm 2700K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3M927MB-LWLED30W2800 lm 2700K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3M927WB-LWLED30W2800 lm 2700K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3M927DB-LWLED30W2800 lm 2700K CRI>90diffusoD: 140mm, H: 142mm
D88/FT130-3M930NB-LWLED30W2700 lm 3000K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3M930MB-LWLED30W2900 lm 3000K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3M930WB-LWLED30W2900 lm 3000K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3M930DB-LWLED30W2900 lm 3000K CRI>90diffusoD: 140mm, H: 142mm
D88/FT130-3M940NB-LWLED30W2700 lm 4000K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3M940MB-LWLED30W2900 lm 4000K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3M940WB-LWLED30W2900 lm 4000K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3M940DB-LWLED30W2900 lm 4000K CRI>90diffusoD: 140mm, H: 142mm
D88/FT130-3H927NB-LWLED35W3000 lm 2700K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3H927MB-LWLED35W3200 lm 2700K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3H927WB-LWLED35W3200 lm 2700K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3H927DB-LWLED35W3200 lm 2700K CRI>90diffusoD: 140mm, H: 142mm
D88/FT130-3H930NB-LWLED35W3100 lm 3000K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3H930MB-LWLED35W3300 lm 3000K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3H930WB-LWLED35W3300 lm 3000K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3H930DB-LWLED35W3300 lm 3000K CRI>90diffusoD: 140mm, H: 142mm
D88/FT130-3H940NB-LWLED35W3100 lm 4000K CRI>90strettoD: 140mm, H: 142mm
D88/FT130-3H940MB-LWLED35W3300 lm 4000K CRI>90medioD: 140mm, H: 142mm
D88/FT130-3H940WB-LWLED35W3300 lm 4000K CRI>90largoD: 140mm, H: 142mm
D88/FT130-3H940DB-LWLED35W3300 lm 4000K CRI>90diffusoD: 140mm, H: 142mm
AXEL TRIM Ø130 ADJUSTABLE
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioDimensioni
D88/AT130-3M927NB-LWLED30W2600 lm 2700K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3M927MB-LWLED30W2800 lm 2700K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3M927WB-LWLED30W2800 lm 2700K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3M927DB-LWLED30W2800 lm 2700K CRI>90diffusoD: 140mm, H: 141mm
D88/AT130-3M930NB-LWLED30W2700 lm 3000K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3M930MB-LWLED30W2900 lm 3000K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3M930WB-LWLED30W2900 lm 3000K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3M930DB-LWLED30W2900 lm 3000K CRI>90diffusoD: 140mm, H: 141mm
D88/AT130-3M940NB-LWLED30W2700 lm 4000K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3M940MB-LWLED30W2900 lm 4000K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3M940WB-LWLED30W2900 lm 4000K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3M940DB-LWLED30W2900 lm 4000K CRI>90diffusoD: 140mm, H: 141mm
D88/AT130-3H927NB-LWLED35W3000 lm 2700K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3H927MB-LWLED35W3200 lm 2700K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3H927WB-LWLED35W3200 lm 2700K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3H927DB-LWLED35W3200 lm 2700K CRI>90diffusoD: 140mm, H: 141mm
D88/AT130-3H930NB-LWLED35W3100 lm 3000K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3H930MB-LWLED35W3300 lm 3000K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3H930WB-LWLED35W3300 lm 3000K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3H930DB-LWLED35W3300 lm 3000K CRI>90diffusoD: 140mm, H: 141mm
D88/AT130-3H940NB-LWLED35W3100 lm 4000K CRI>90strettoD: 140mm, H: 141mm
D88/AT130-3H940MB-LWLED35W3300 lm 4000K CRI>90medioD: 140mm, H: 141mm
D88/AT130-3H940WB-LWLED35W3300 lm 4000K CRI>90largoD: 140mm, H: 141mm
D88/AT130-3H940DB-LWLED35W3300 lm 4000K CRI>90diffusoD: 140mm, H: 141mm
