SL.EVO RECESSED

  • Richiedi informazioni
SL.EVO è il filo che raccoglie i volumi in un intreccio simbolico, dove il percorso diviene una ragnatela di luce e il visitatore un esploratore dello spazio. Il design minimale garantisce un effetto tutta luce e un notevole comfort visivo con riduzione dei livelli di luminanza agli angoli di emissione superiori e rendimenti oltre il 73%. Le molteplici tipologie di installazione soddisfano le richieste dei progettisti più esigenti e promuovono SL.EVO a valida soluzione capace di illuminare gli spazi più articolati.

prodotti (4)

120

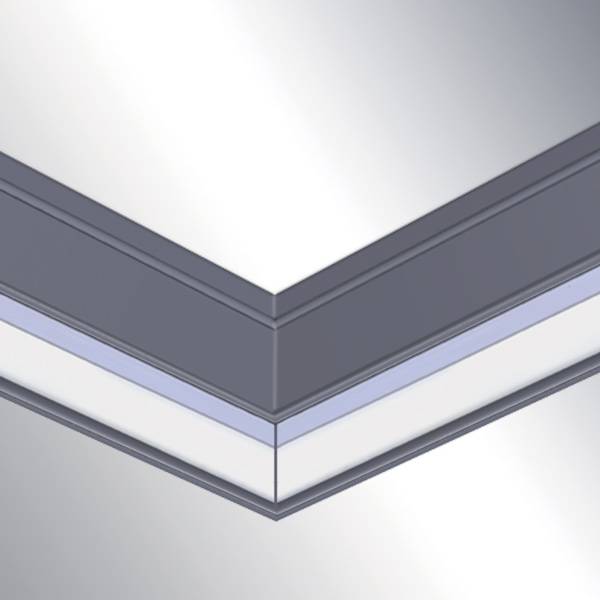

SL.EVO LED FRAME SINGOLO

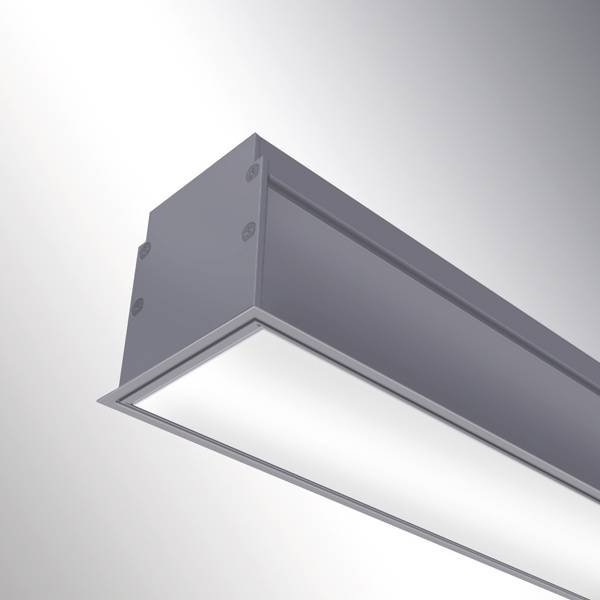

SL.EVO LED FRAME single - PMMA satinato (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90LL256DNLED37W3713 lm3000K CRI>80diffusoON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90LL258DNLED52W5304 lm3000K CRI>80diffusoON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90LL260DNLED73W7426 lm3000K CRI>80diffusoON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90LL255DNLED32W3182 lm3000K CRI>80diffusoON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90LL252DNLED16W1591 lm3000K CRI>80diffusoDALI.L: 874mm, A: 88mm, H: 88mm
DD90LL254DNLED26W2654 lm3000K CRI>80diffusoDALI.L: 1442mm, A: 88mm, H: 88mm
T90LL257DNLED42W4243 lm3000K CRI>80diffusoON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90LL256DNLED37W3713 lm3000K CRI>80diffusoDALI.L: 2010mm, A: 88mm, H: 88mm
DD90LL258DNLED52W5304 lm3000K CRI>80diffusoDALI.L: 2862mm, A: 88mm, H: 88mm
DD90LL260DNLED73W7426 lm3000K CRI>80diffusoDALI.L: 3998mm, A: 88mm, H: 88mm
T90LL259DNLED63W6365 lm3000K CRI>80diffusoON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90LL251DNLED11W1061 lm3000K CRI>80diffusoON-OFF.L: 590mm, A: 88mm, H: 88mm
T90LL252DNLED16W1591 lm3000K CRI>80diffusoON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90LL251DNLED11W1061 lm3000K CRI>80diffusoDALI.L: 590mm, A: 88mm, H: 88mm
DD90LL253DNLED21W2122 lm3000K CRI>80diffusoDALI.L: 1158mm, A: 88mm, H: 88mm
DD90LL255DNLED32W3182 lm3000K CRI>80diffusoDALI.L: 1726mm, A: 88mm, H: 88mm
DD90LL257DNLED42W4243 lm3000K CRI>80diffusoDALI.L: 2294mm, A: 88mm, H: 88mm
DD90LL259DNLED63W6365 lm3000K CRI>80diffusoDALI.L: 3430mm, A: 88mm, H: 88mm
T90LL253DNLED21W2122 lm3000K CRI>80diffusoON-OFF.L: 1158mm, A: 88mm, H: 88mm
T90LL254DNLED26W2654 lm3000K CRI>80diffusoON-OFF.L: 1442mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT-R (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90WL204DNLED26W2001 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90WL206DNLED37W2802 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90WL208DNLED52W4002 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90WL210DNLED73W5603 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90WL205DNLED32W2401 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90WL202DNLED16W1201 lm4000K CRI>80diffuso UGR<19DALI.L: 874mm, A: 88mm, H: 88mm
DD90WL204DNLED26W2001 lm4000K CRI>80diffuso UGR<19DALI.L: 1442mm, A: 88mm, H: 88mm
T90WL207DNLED42W3202 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90WL206DNLED37W2802 lm4000K CRI>80diffuso UGR<19DALI.L: 2010mm, A: 88mm, H: 88mm
DD90WL208DNLED52W4002 lm4000K CRI>80diffuso UGR<19DALI.L: 2862mm, A: 88mm, H: 88mm
DD90WL210DNLED73W5603 lm4000K CRI>80diffuso UGR<19DALI.L: 3998mm, A: 88mm, H: 88mm
T90WL209DNLED63W4802 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90WL201DNLED11W801 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 590mm, A: 88mm, H: 88mm
T90WL202DNLED16W1201 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90WL201DNLED11W801 lm4000K CRI>80diffuso UGR<19DALI.L: 590mm, A: 88mm, H: 88mm
DD90WL203DNLED21W1601 lm4000K CRI>80diffuso UGR<19DALI.L: 1158mm, A: 88mm, H: 88mm
DD90WL205DNLED32W2401 lm4000K CRI>80diffuso UGR<19DALI.L: 1726mm, A: 88mm, H: 88mm
DD90WL207DNLED42W3202 lm4000K CRI>80diffuso UGR<19DALI.L: 2294mm, A: 88mm, H: 88mm
DD90WL209DNLED63W4802 lm4000K CRI>80diffuso UGR<19DALI.L: 3430mm, A: 88mm, H: 88mm
T90WL203DNLED21W1601 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT-R (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90WL254DNLED26W1802 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90WL256DNLED37W2523 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90WL258DNLED52W3604 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90WL260DNLED73W5046 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90WL255DNLED32W2163 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90WL252DNLED16W1082 lm3000K CRI>80diffuso UGR<19DALI.L: 874mm, A: 88mm, H: 88mm
DD90WL254DNLED26W1802 lm3000K CRI>80diffuso UGR<19DALI.L: 1442mm, A: 88mm, H: 88mm
T90WL257DNLED42W2884 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90WL256DNLED37W2523 lm3000K CRI>80diffuso UGR<19DALI.L: 2010mm, A: 88mm, H: 88mm
DD90WL258DNLED52W3604 lm3000K CRI>80diffuso UGR<19DALI.L: 2862mm, A: 88mm, H: 88mm
DD90WL260DNLED73W5046 lm3000K CRI>80diffuso UGR<19DALI.L: 3998mm, A: 88mm, H: 88mm
T90WL259DNLED63W4325 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90WL251DNLED11W721 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 590mm, A: 88mm, H: 88mm
T90WL252DNLED16W1082 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90WL251DNLED11W721 lm3000K CRI>80diffuso UGR<19DALI.L: 590mm, A: 88mm, H: 88mm
DD90WL253DNLED21W1442 lm3000K CRI>80diffuso UGR<19DALI.L: 1158mm, A: 88mm, H: 88mm
DD90WL255DNLED32W2163 lm3000K CRI>80diffuso UGR<19DALI.L: 1726mm, A: 88mm, H: 88mm
DD90WL257DNLED42W2884 lm3000K CRI>80diffuso UGR<19DALI.L: 2294mm, A: 88mm, H: 88mm
DD90WL259DNLED63W4325 lm3000K CRI>80diffuso UGR<19DALI.L: 3430mm, A: 88mm, H: 88mm
T90WL253DNLED21W1442 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1158mm, A: 88mm, H: 88mm

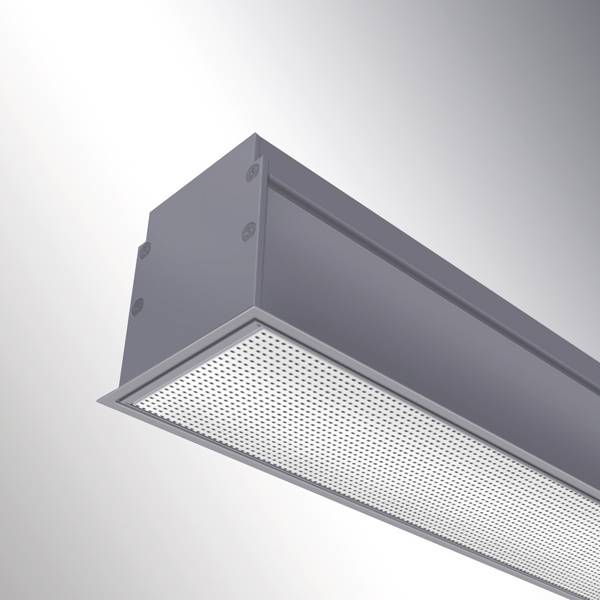

SL.EVO LED FRAME single - TXT (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90XL204DNLED26W3020 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90XL206DNLED37W4228 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90XL208DNLED52W6040 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90XL210DNLED73W8456 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90XL205DNLED32W3624 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90XL202DNLED16W1812 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 874mm, A: 88mm, H: 88mm
DD90XL204DNLED26W3020 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1442mm, A: 88mm, H: 88mm
T90XL207DNLED42W4832 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90XL206DNLED37W4228 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2010mm, A: 88mm, H: 88mm
DD90XL208DNLED52W6040 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2862mm, A: 88mm, H: 88mm
DD90XL210DNLED73W8456 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 3998mm, A: 88mm, H: 88mm
T90XL209DNLED63W7248 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90XL201DNLED11W1208 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 590mm, A: 88mm, H: 88mm
T90XL202DNLED16W1812 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90XL201DNLED11W1208 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 590mm, A: 88mm, H: 88mm
DD90XL203DNLED21W2416 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1158mm, A: 88mm, H: 88mm
DD90XL205DNLED32W3624 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1726mm, A: 88mm, H: 88mm
DD90XL207DNLED42W4832 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2294mm, A: 88mm, H: 88mm
DD90XL209DNLED63W7248 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 3430mm, A: 88mm, H: 88mm
T90XL203DNLED21W2416 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - TXT (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90XL254DNLED26W2720 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1442mm, A: 88mm, H: 88mm
T90XL256DNLED37W3808 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90XL258DNLED52W5440 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90XL260DNLED73W7616 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90XL255DNLED32W3264 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90XL252DNLED16W1632 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 874mm, A: 88mm, H: 88mm
DD90XL254DNLED26W2720 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1442mm, A: 88mm, H: 88mm
T90XL257DNLED42W4352 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90XL256DNLED37W3808 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2010mm, A: 88mm, H: 88mm
DD90XL258DNLED52W5440 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2862mm, A: 88mm, H: 88mm
DD90XL260DNLED73W7616 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 3998mm, A: 88mm, H: 88mm
T90XL259DNLED63W6528 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90XL251DNLED11W1088 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 590mm, A: 88mm, H: 88mm
T90XL252DNLED16W1632 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90XL251DNLED11W1088 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 590mm, A: 88mm, H: 88mm
DD90XL253DNLED21W2176 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1158mm, A: 88mm, H: 88mm
DD90XL255DNLED32W3264 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1726mm, A: 88mm, H: 88mm
DD90XL257DNLED42W4352 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2294mm, A: 88mm, H: 88mm
DD90XL259DNLED63W6528 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 3430mm, A: 88mm, H: 88mm
T90XL253DNLED21W2176 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1158mm, A: 88mm, H: 88mm
SL.EVO LED FRAME single - PMMA satinato (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90LL206DNLED37W4122 lm4000K CRI>80diffusoON-OFF.L: 2010mm, A: 88mm, H: 88mm
T90LL208DNLED52W5889 lm4000K CRI>80diffusoON-OFF.L: 2862mm, A: 88mm, H: 88mm
T90LL210DNLED73W8245 lm4000K CRI>80diffusoON-OFF.L: 3998mm, A: 88mm, H: 88mm
T90LL205DNLED32W3533 lm4000K CRI>80diffusoON-OFF.L: 1726mm, A: 88mm, H: 88mm
DD90LL202DNLED16W1767 lm4000K CRI>80diffusoDALI.L: 874mm, A: 88mm, H: 88mm
DD90LL204DNLED26W2945 lm4000K CRI>80diffusoDALI.L: 1442mm, A: 88mm, H: 88mm
T90LL207DNLED42W4711 lm4000K CRI>80diffusoON-OFF.L: 2294mm, A: 88mm, H: 88mm
DD90LL206DNLED37W4122 lm4000K CRI>80diffusoDALI.L: 2010mm, A: 88mm, H: 88mm
DD90LL208DNLED52W5889 lm4000K CRI>80diffusoDALI.L: 2862mm, A: 88mm, H: 88mm
DD90LL210DNLED73W8245 lm4000K CRI>80diffusoDALI.L: 3998mm, A: 88mm, H: 88mm
T90LL209DNLED63W7067 lm4000K CRI>80diffusoON-OFF.L: 3430mm, A: 88mm, H: 88mm
T90LL201DNLED11W1178 lm4000K CRI>80diffusoON-OFF.L: 590mm, A: 88mm, H: 88mm
T90LL202DNLED16W1767 lm4000K CRI>80diffusoON-OFF.L: 874mm, A: 88mm, H: 88mm
DD90LL201DNLED11W1178 lm4000K CRI>80diffusoDALI.L: 590mm, A: 88mm, H: 88mm
DD90LL203DNLED21W2356 lm4000K CRI>80diffusoDALI.L: 1158mm, A: 88mm, H: 88mm
DD90LL205DNLED32W3533 lm4000K CRI>80diffusoDALI.L: 1726mm, A: 88mm, H: 88mm
DD90LL207DNLED42W4711 lm4000K CRI>80diffusoDALI.L: 2294mm, A: 88mm, H: 88mm
DD90LL209DNLED63W7067 lm4000K CRI>80diffusoDALI.L: 3430mm, A: 88mm, H: 88mm
T90LL203DNLED21W2356 lm4000K CRI>80diffusoON-OFF.L: 1158mm, A: 88mm, H: 88mm
T90LL204DNLED26W2945 lm4000K CRI>80diffusoON-OFF.L: 1442mm, A: 88mm, H: 88mm
120

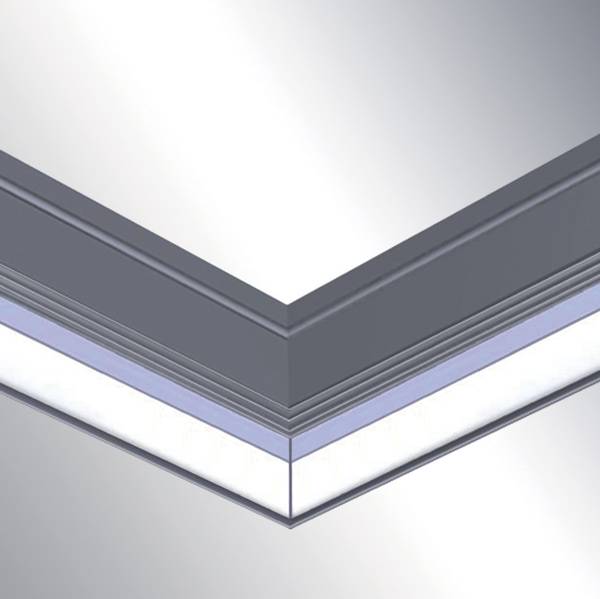

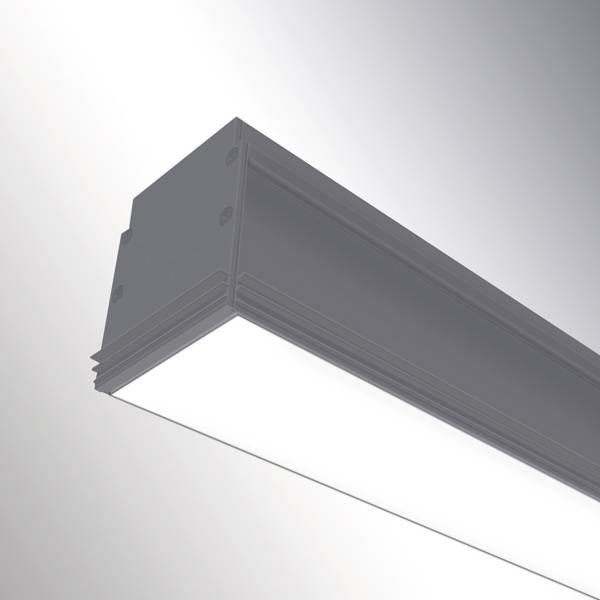

SL.EVO LED TRIMLESS SINGOLO

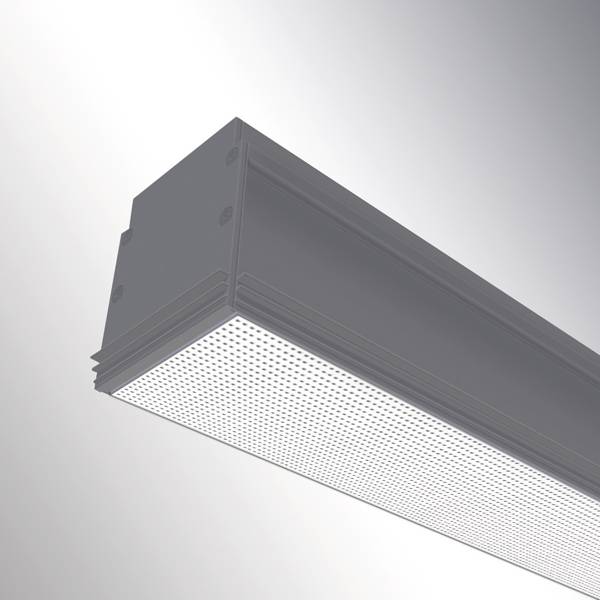

SL.EVO LED TRIMLESS single - TXT-R (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90WL404DNLED26W2001 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90WL406DNLED37W2802 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90WL408DNLED52W4002 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90WL410DNLED73W5603 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90WL405DNLED32W2401 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90WL402DNLED16W1201 lm4000K CRI>80diffuso UGR<19DALI.L: 872mm, A: 85mm, H: 88mm
DD90WL404DNLED26W2001 lm4000K CRI>80diffuso UGR<19DALI.L: 1440mm, A: 85mm, H: 88mm
T90WL407DNLED42W3202 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90WL406DNLED37W2802 lm4000K CRI>80diffuso UGR<19DALI.L: 2008mm, A: 85mm, H: 88mm
DD90WL408DNLED52W4002 lm4000K CRI>80diffuso UGR<19DALI.L: 2860mm, A: 85mm, H: 88mm
DD90WL410DNLED73W5603 lm4000K CRI>80diffuso UGR<19DALI.L: 3996mm, A: 85mm, H: 88mm
T90WL409DNLED63W4802 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90WL401DNLED11W801 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 588mm, A: 85mm, H: 88mm
T90WL402DNLED16W1201 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90WL401DNLED11W801 lm4000K CRI>80diffuso UGR<19DALI.L: 588mm, A: 85mm, H: 88mm
DD90WL403DNLED21W1601 lm4000K CRI>80diffuso UGR<19DALI.L: 1156mm, A: 85mm, H: 88mm
DD90WL405DNLED32W2401 lm4000K CRI>80diffuso UGR<19DALI.L: 1724mm, A: 85mm, H: 88mm
DD90WL407DNLED42W3202 lm4000K CRI>80diffuso UGR<19DALI.L: 2292mm, A: 85mm, H: 88mm
DD90WL409DNLED63W4802 lm4000K CRI>80diffuso UGR<19DALI.L: 3428mm, A: 85mm, H: 88mm
T90WL403DNLED21W1601 lm4000K CRI>80diffuso UGR<19ON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - TXT-R (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90WL454DNLED26W1802 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90WL456DNLED37W2523 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90WL458DNLED52W3604 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90WL460DNLED73W5046 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90WL455DNLED32W2163 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90WL452DNLED16W1082 lm3000K CRI>80diffuso UGR<19DALI.L: 872mm, A: 85mm, H: 88mm
DD90WL454DNLED26W1802 lm3000K CRI>80diffuso UGR<19DALI.L: 1440mm, A: 85mm, H: 88mm
T90WL457DNLED42W2884 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90WL456DNLED37W2523 lm3000K CRI>80diffuso UGR<19DALI.L: 2008mm, A: 85mm, H: 88mm
DD90WL458DNLED52W3604 lm3000K CRI>80diffuso UGR<19DALI.L: 2860mm, A: 85mm, H: 88mm
DD90WL460DNLED73W5046 lm3000K CRI>80diffuso UGR<19DALI.L: 3996mm, A: 85mm, H: 88mm
T90WL459DNLED63W4325 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90WL451DNLED11W721 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 588mm, A: 85mm, H: 88mm
T90WL452DNLED16W1082 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90WL451DNLED11W721 lm3000K CRI>80diffuso UGR<19DALI.L: 588mm, A: 85mm, H: 88mm
DD90WL453DNLED21W1442 lm3000K CRI>80diffuso UGR<19DALI.L: 1156mm, A: 85mm, H: 88mm
DD90WL455DNLED32W2163 lm3000K CRI>80diffuso UGR<19DALI.L: 1724mm, A: 85mm, H: 88mm
DD90WL457DNLED42W2884 lm3000K CRI>80diffuso UGR<19DALI.L: 2292mm, A: 85mm, H: 88mm
DD90WL459DNLED63W4325 lm3000K CRI>80diffuso UGR<19DALI.L: 3428mm, A: 85mm, H: 88mm
T90WL453DNLED21W1442 lm3000K CRI>80diffuso UGR<19ON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - TXT (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90XL404DNLED26W3020 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90XL406DNLED37W4228 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90XL408DNLED52W6040 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90XL410DNLED73W8456 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90XL405DNLED32W3624 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90XL402DNLED16W1812 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 872mm, A: 85mm, H: 88mm
DD90XL404DNLED26W3020 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1440mm, A: 85mm, H: 88mm
T90XL407DNLED42W4832 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90XL406DNLED37W4228 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2008mm, A: 85mm, H: 88mm
DD90XL408DNLED52W6040 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2860mm, A: 85mm, H: 88mm
DD90XL410DNLED73W8456 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 3996mm, A: 85mm, H: 88mm
T90XL409DNLED63W7248 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90XL401DNLED11W1208 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 588mm, A: 85mm, H: 88mm
T90XL402DNLED16W1812 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90XL401DNLED11W1208 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 588mm, A: 85mm, H: 88mm
DD90XL403DNLED21W2416 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1156mm, A: 85mm, H: 88mm
DD90XL405DNLED32W3624 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 1724mm, A: 85mm, H: 88mm
DD90XL407DNLED42W4832 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 2292mm, A: 85mm, H: 88mm
DD90XL409DNLED63W7248 lm4000K CRI>80diffuso anti-abbagliamentoDALI.L: 3428mm, A: 85mm, H: 88mm
T90XL403DNLED21W2416 lm4000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - TXT (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90XL454DNLED26W2720 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1440mm, A: 85mm, H: 88mm
T90XL456DNLED37W3808 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90XL458DNLED52W5440 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90XL460DNLED73W7616 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90XL455DNLED32W3264 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90XL452DNLED16W1632 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 872mm, A: 85mm, H: 88mm
DD90XL454DNLED26W2720 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1440mm, A: 85mm, H: 88mm
T90XL457DNLED42W4352 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90XL456DNLED37W3808 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2008mm, A: 85mm, H: 88mm
DD90XL458DNLED52W5440 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2860mm, A: 85mm, H: 88mm
DD90XL460DNLED73W7616 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 3996mm, A: 85mm, H: 88mm
T90XL459DNLED63W6528 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90XL451DNLED11W1088 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 588mm, A: 85mm, H: 88mm
T90XL452DNLED16W1632 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90XL451DNLED11W1088 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 588mm, A: 85mm, H: 88mm
DD90XL453DNLED21W2176 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1156mm, A: 85mm, H: 88mm
DD90XL455DNLED32W3264 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 1724mm, A: 85mm, H: 88mm
DD90XL457DNLED42W4352 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 2292mm, A: 85mm, H: 88mm
DD90XL459DNLED63W6528 lm3000K CRI>80diffuso anti-abbagliamentoDALI.L: 3428mm, A: 85mm, H: 88mm
T90XL453DNLED21W2176 lm3000K CRI>80diffuso anti-abbagliamentoON-OFF.L: 1156mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - PMMA satinato (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90LL406DNLED37W4122 lm4000K CRI>80diffusoON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90LL408DNLED52W5889 lm4000K CRI>80diffusoON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90LL410DNLED73W8245 lm4000K CRI>80diffusoON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90LL405DNLED32W3533 lm4000K CRI>80diffusoON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90LL402DNLED16W1767 lm4000K CRI>80diffusoDALI.L: 872mm, A: 85mm, H: 88mm
DD90LL404DNLED26W2945 lm4000K CRI>80diffusoDALI.L: 1440mm, A: 85mm, H: 88mm
T90LL407DNLED42W4711 lm4000K CRI>80diffusoON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90LL406DNLED37W4122 lm4000K CRI>80diffusoDALI.L: 2008mm, A: 85mm, H: 88mm
DD90LL408DNLED52W5889 lm4000K CRI>80diffusoDALI.L: 2860mm, A: 85mm, H: 88mm
DD90LL410DNLED73W8245 lm4000K CRI>80diffusoDALI.L: 3996mm, A: 85mm, H: 88mm
T90LL409DNLED63W7067 lm4000K CRI>80diffusoON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90LL401DNLED11W1178 lm4000K CRI>80diffusoON-OFF.L: 588mm, A: 85mm, H: 88mm
T90LL402DNLED16W1767 lm4000K CRI>80diffusoON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90LL401DNLED11W1178 lm4000K CRI>80diffusoDALI.L: 588mm, A: 85mm, H: 88mm
DD90LL403DNLED21W2356 lm4000K CRI>80diffusoDALI.L: 1156mm, A: 85mm, H: 88mm
DD90LL405DNLED32W3533 lm4000K CRI>80diffusoDALI.L: 1724mm, A: 85mm, H: 88mm
DD90LL407DNLED42W4711 lm4000K CRI>80diffusoDALI.L: 2292mm, A: 85mm, H: 88mm
DD90LL409DNLED63W7067 lm4000K CRI>80diffusoDALI.L: 3428mm, A: 85mm, H: 88mm
T90LL403DNLED21W2356 lm4000K CRI>80diffusoON-OFF.L: 1156mm, A: 85mm, H: 88mm
T90LL404DNLED26W2945 lm4000K CRI>80diffusoON-OFF.L: 1440mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS single - PMMA satinato (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreFascioTipo gruppo alimentazioneDimensioni
T90LL456DNLED37W3713 lm3000K CRI>80diffusoON-OFF.L: 2008mm, A: 85mm, H: 88mm
T90LL458DNLED52W5304 lm3000K CRI>80diffusoON-OFF.L: 2860mm, A: 85mm, H: 88mm
T90LL460DNLED73W7426 lm3000K CRI>80diffusoON-OFF.L: 3996mm, A: 85mm, H: 88mm
T90LL455DNLED32W3182 lm3000K CRI>80diffusoON-OFF.L: 1724mm, A: 85mm, H: 88mm
DD90LL452DNLED16W1591 lm3000K CRI>80diffusoDALI.L: 872mm, A: 85mm, H: 88mm
DD90LL454DNLED26W2654 lm3000K CRI>80diffusoDALI.L: 1440mm, A: 85mm, H: 88mm
T90LL457DNLED42W4243 lm3000K CRI>80diffusoON-OFF.L: 2292mm, A: 85mm, H: 88mm
DD90LL456DNLED37W3713 lm3000K CRI>80diffusoDALI.L: 2008mm, A: 85mm, H: 88mm
DD90LL458DNLED52W5304 lm3000K CRI>80diffusoDALI.L: 2860mm, A: 85mm, H: 88mm
DD90LL460DNLED73W7426 lm3000K CRI>80diffusoDALI.L: 3996mm, A: 85mm, H: 88mm
T90LL459DNLED63W6365 lm3000K CRI>80diffusoON-OFF.L: 3428mm, A: 85mm, H: 88mm
T90LL451DNLED11W1061 lm3000K CRI>80diffusoON-OFF.L: 588mm, A: 85mm, H: 88mm
T90LL452DNLED16W1591 lm3000K CRI>80diffusoON-OFF.L: 872mm, A: 85mm, H: 88mm
DD90LL451DNLED11W1061 lm3000K CRI>80diffusoDALI.L: 588mm, A: 85mm, H: 88mm
DD90LL453DNLED21W2122 lm3000K CRI>80diffusoDALI.L: 1156mm, A: 85mm, H: 88mm
DD90LL455DNLED32W3182 lm3000K CRI>80diffusoDALI.L: 1724mm, A: 85mm, H: 88mm
DD90LL457DNLED42W4243 lm3000K CRI>80diffusoDALI.L: 2292mm, A: 85mm, H: 88mm
DD90LL459DNLED63W6365 lm3000K CRI>80diffusoDALI.L: 3428mm, A: 85mm, H: 88mm
T90LL453DNLED21W2122 lm3000K CRI>80diffusoON-OFF.L: 1156mm, A: 85mm, H: 88mm
T90LL454DNLED26W2654 lm3000K CRI>80diffusoON-OFF.L: 1440mm, A: 85mm, H: 88mm
112

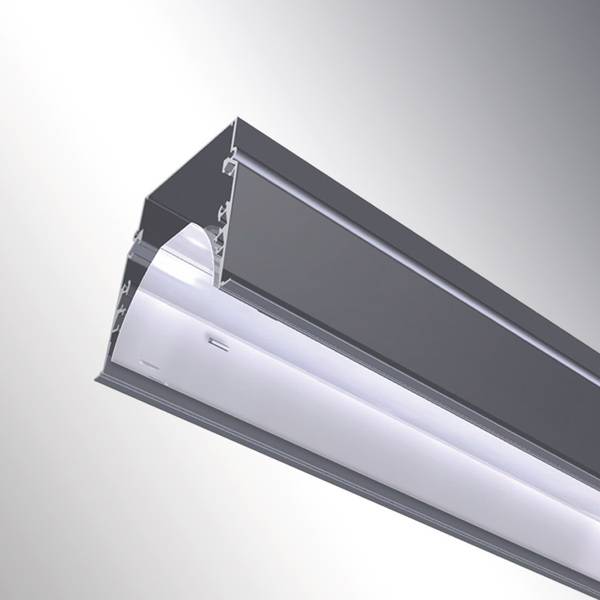

SL.EVO LED FRAME CONTINUO
SL.EVO LED FRAME continuous - modulo angolare (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD900L262DNLED21W2122 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L264DNLED21W2122 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L261DNLED21W2122 lm3000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD900L263DNLED21W2122 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L261DNLED21W2122 lm3000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T900L262DNLED21W2122 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L263DNLED21W2122 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L264DNLED21W2122 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R modulo angolare (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD90HL212DNLED21W1600 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL214DNLED21W1600 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL211DNLED21W1600 lm4000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD90HL213DNLED21W1600 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL211DNLED21W1600 lm4000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T90HL212DNLED21W1600 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL213DNLED21W1600 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL214DNLED21W1600 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R modulo angolare (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD90HL262DNLED21W1442 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL264DNLED21W1442 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL261DNLED21W1442 lm3000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD90HL263DNLED21W1442 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL261DNLED21W1442 lm3000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T90HL262DNLED21W1442 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL263DNLED21W1442 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL264DNLED21W1442 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T90HL206DNLED37W2801 lm4000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T90HL208DNLED52W4002 lm4000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T90HL210DNLED73W5602 lm4000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T90HL205DNLED32W2401 lm4000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD90HL202DNLED16W1200 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL204DNLED26W2001 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL207DNLED42W3201 lm4000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD90HL206DNLED37W2801 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL208DNLED52W4002 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL210DNLED73W5602 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL209DNLED63W4802 lm4000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T90HL201DNLED11W800 lm4000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T90HL202DNLED16W1200 lm4000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD90HL201DNLED11W800 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL203DNLED21W1601 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL205DNLED32W2401 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL207DNLED42W3201 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL209DNLED63W4802 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL203DNLED21W1601 lm4000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T90HL204DNLED26W2001 lm4000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous - TXT-R (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T90HL256DNLED37W2523 lm3000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T90HL258DNLED52W3604 lm3000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T90HL260DNLED73W5046 lm3000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T90HL255DNLED32W2162 lm3000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD90HL252DNLED16W1081 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL254DNLED26W1802 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL257DNLED42W2883 lm3000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD90HL256DNLED37W2523 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL258DNLED52W3604 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL260DNLED73W5046 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL259DNLED63W4325 lm3000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T90HL251DNLED11W721 lm3000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T90HL252DNLED16W1081 lm3000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD90HL251DNLED11W721 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL253DNLED21W1442 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL255DNLED32W2162 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL257DNLED42W2883 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL259DNLED63W4325 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL253DNLED21W1442 lm3000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T90HL254DNLED26W1802 lm3000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous - modulo angolare (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD900L212DNLED21W2356 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L214DNLED21W2356 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L211DNLED21W2356 lm4000K CRI>80DALI.L: 618mm, A: 618mm, H: 88mm
DD900L213DNLED21W2356 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L211DNLED21W2356 lm4000K CRI>80ON-OFF.L: 618mm, A: 618mm, H: 88mm
T900L212DNLED21W2356 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L213DNLED21W2356 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L214DNLED21W2356 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED FRAME continuous (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T900L206DNLED37W4122 lm4000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T900L208DNLED52W5889 lm4000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T900L210DNLED73W8245 lm4000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T900L205DNLED32W3533 lm4000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD900L202DNLED16W1767 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD900L204DNLED26W2945 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T900L207DNLED42W4711 lm4000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD900L206DNLED37W4122 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD900L208DNLED52W5889 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD900L210DNLED73W8245 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T900L209DNLED63W7067 lm4000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T900L201DNLED11W1178 lm4000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T900L202DNLED16W1767 lm4000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD900L201DNLED11W1178 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD900L203DNLED21W2356 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD900L205DNLED32W3533 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD900L207DNLED42W4711 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD900L209DNLED63W7067 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T900L203DNLED21W2356 lm4000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T900L204DNLED26W2945 lm4000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
SL.EVO LED FRAME continuous (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T900L256DNLED37W3713 lm3000K CRI>80ON-OFF.L: 1994mm, A: 88mm, H: 88mm
T900L258DNLED52W5304 lm3000K CRI>80ON-OFF.L: 2846mm, A: 88mm, H: 88mm
T900L260DNLED73W7426 lm3000K CRI>80ON-OFF.L: 3982mm, A: 88mm, H: 88mm
T900L255DNLED32W3182 lm3000K CRI>80ON-OFF.L: 1710mm, A: 88mm, H: 88mm
DD900L252DNLED16W1591 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD900L254DNLED26W2652 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T900L257DNLED42W4243 lm3000K CRI>80ON-OFF.L: 2278mm, A: 88mm, H: 88mm
DD900L256DNLED37W3713 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD900L258DNLED52W5304 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD900L260DNLED73W7426 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T900L259DNLED63W6365 lm3000K CRI>80ON-OFF.L: 3414mm, A: 88mm, H: 88mm
T900L251DNLED11W1061 lm3000K CRI>80ON-OFF.L: 574mm, A: 88mm, H: 88mm
T900L252DNLED16W1591 lm3000K CRI>80ON-OFF.L: 858mm, A: 88mm, H: 88mm
DD900L251DNLED11W1061 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD900L253DNLED21W2122 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD900L255DNLED32W3182 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD900L257DNLED42W4243 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD900L259DNLED63W6365 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T900L253DNLED21W2122 lm3000K CRI>80ON-OFF.L: 1142mm, A: 88mm, H: 88mm
T900L254DNLED26W2652 lm3000K CRI>80ON-OFF.L: 1426mm, A: 88mm, H: 88mm
112
SL.EVO LED TRIMLESS CONTINUO
SL.EVO LED TRIMLESS continuous - TXT-R modulo angolare (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD90HL412DNLED21W1600 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL414DNLED21W1600 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL411DNLED21W1600 lm4000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD90HL413DNLED21W1600 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL411DNLED21W1600 lm4000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T90HL412DNLED21W1600 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL413DNLED21W1600 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL414DNLED21W1600 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R modulo angolare (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD90HL462DNLED21W1442 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD90HL464DNLED21W1442 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD90HL461DNLED21W1442 lm3000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD90HL463DNLED21W1442 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T90HL461DNLED21W1442 lm3000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T90HL462DNLED21W1442 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T90HL463DNLED21W1442 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T90HL464DNLED21W1442 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T90HL406DNLED37W2801 lm4000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T90HL408DNLED52W4002 lm4000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T90HL410DNLED73W5602 lm4000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T90HL405DNLED32W2401 lm4000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD90HL402DNLED16W1200 lm4000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL404DNLED26W2001 lm4000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL407DNLED42W3201 lm4000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD90HL406DNLED37W2801 lm4000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL408DNLED52W4002 lm4000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL410DNLED73W5602 lm4000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL409DNLED63W4802 lm4000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T90HL401DNLED11W800 lm4000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T90HL402DNLED16W1200 lm4000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD90HL401DNLED11W800 lm4000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL403DNLED21W1601 lm4000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL405DNLED32W2401 lm4000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL407DNLED42W3201 lm4000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL409DNLED63W4802 lm4000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL403DNLED21W1601 lm4000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T90HL404DNLED26W2001 lm4000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous - TXT-R (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T90HL456DNLED37W2523 lm3000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T90HL458DNLED52W3604 lm3000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T90HL460DNLED73W5046 lm3000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T90HL455DNLED32W2162 lm3000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD90HL452DNLED16W1081 lm3000K CRI>80DALI.L: 858mm, A: 88mm, H: 88mm
DD90HL454DNLED26W1802 lm3000K CRI>80DALI.L: 1426mm, A: 88mm, H: 88mm
T90HL457DNLED42W2883 lm3000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD90HL456DNLED37W2523 lm3000K CRI>80DALI.L: 1994mm, A: 88mm, H: 88mm
DD90HL458DNLED52W3604 lm3000K CRI>80DALI.L: 2846mm, A: 88mm, H: 88mm
DD90HL460DNLED73W5046 lm3000K CRI>80DALI.L: 3982mm, A: 88mm, H: 88mm
T90HL459DNLED63W4325 lm3000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T90HL451DNLED11W721 lm3000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T90HL452DNLED16W1081 lm3000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD90HL451DNLED11W721 lm3000K CRI>80DALI.L: 574mm, A: 88mm, H: 88mm
DD90HL453DNLED21W1442 lm3000K CRI>80DALI.L: 1142mm, A: 88mm, H: 88mm
DD90HL455DNLED32W2162 lm3000K CRI>80DALI.L: 1710mm, A: 88mm, H: 88mm
DD90HL457DNLED42W2883 lm3000K CRI>80DALI.L: 2278mm, A: 88mm, H: 88mm
DD90HL459DNLED63W4325 lm3000K CRI>80DALI.L: 3414mm, A: 88mm, H: 88mm
T90HL453DNLED21W1442 lm3000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T90HL454DNLED26W1802 lm3000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous - modulo angolare (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD900L412DNLED21W2356 lm4000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L414DNLED21W2356 lm4000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L411DNLED21W2356 lm4000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD900L413DNLED21W2356 lm4000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L411DNLED21W2356 lm4000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T900L412DNLED21W2356 lm4000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L413DNLED21W2356 lm4000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L414DNLED21W2356 lm4000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous - modulo angolare (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
DD900L462DNLED21W2122 lm3000K CRI>80DALI.L: 658mm, A: 658mm, H: 88mm
DD900L464DNLED21W2122 lm3000K CRI>80DALI.L: 665mm, A: 665mm, H: 88mm
DD900L461DNLED21W2122 lm3000K CRI>80DALI.L: 616mm, A: 616mm, H: 88mm
DD900L463DNLED21W2122 lm3000K CRI>80DALI.L: 661mm, A: 661mm, H: 88mm
T900L461DNLED21W2122 lm3000K CRI>80ON-OFF.L: 616mm, A: 616mm, H: 88mm
T900L462DNLED21W2122 lm3000K CRI>80ON-OFF.L: 658mm, A: 658mm, H: 88mm
T900L463DNLED21W2122 lm3000K CRI>80ON-OFF.L: 661mm, A: 661mm, H: 88mm
T900L464DNLED21W2122 lm3000K CRI>80ON-OFF.L: 665mm, A: 665mm, H: 88mm
SL.EVO LED TRIMLESS continuous (4000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T900L406DNLED37W4122 lm4000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T900L408DNLED52W5889 lm4000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T900L410DNLED73W8245 lm4000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T900L405DNLED32W3533 lm4000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD900L402DNLED16W1767 lm4000K CRI>80DALI.L: 858mm, A: 85mm, H: 88mm
DD900L404DNLED26W2945 lm4000K CRI>80DALI.L: 1426mm, A: 85mm, H: 88mm
T900L407DNLED42W4711 lm4000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD900L406DNLED37W4122 lm4000K CRI>80DALI.L: 1994mm, A: 85mm, H: 88mm
DD900L408DNLED52W5889 lm4000K CRI>80DALI.L: 2846mm, A: 85mm, H: 88mm
DD900L410DNLED73W8245 lm4000K CRI>80DALI.L: 3982mm, A: 85mm, H: 88mm
T900L409DNLED63W7067 lm4000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T900L401DNLED11W1178 lm4000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T900L402DNLED16W1767 lm4000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD900L401DNLED11W1178 lm4000K CRI>80DALI.L: 574mm, A: 85mm, H: 88mm
DD900L403DNLED21W2356 lm4000K CRI>80DALI.L: 1142mm, A: 85mm, H: 88mm
DD900L405DNLED32W3533 lm4000K CRI>80DALI.L: 1710mm, A: 85mm, H: 88mm
DD900L407DNLED42W4711 lm4000K CRI>80DALI.L: 2278mm, A: 85mm, H: 88mm
DD900L409DNLED63W7067 lm4000K CRI>80DALI.L: 3414mm, A: 85mm, H: 88mm
T900L403DNLED21W2356 lm4000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T900L404DNLED26W2945 lm4000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
SL.EVO LED TRIMLESS continuous (3000K)
Codice di ordinazioneTipologia sorgentiPotenza sistemaFlusso UscenteTemperatura ColoreTipo gruppo alimentazioneDimensioni
T900L456DNLED37W3713 lm3000K CRI>80ON-OFF.L: 1994mm, A: 85mm, H: 88mm
T900L458DNLED52W5304 lm3000K CRI>80ON-OFF.L: 2846mm, A: 85mm, H: 88mm
T900L460DNLED73W7426 lm3000K CRI>80ON-OFF.L: 3982mm, A: 85mm, H: 88mm
T900L455DNLED32W3182 lm3000K CRI>80ON-OFF.L: 1710mm, A: 85mm, H: 88mm
DD900L452DNLED16W1591 lm3000K CRI>80DALI.L: 858mm, A: 85mm, H: 88mm
DD900L454DNLED26W2652 lm3000K CRI>80DALI.L: 1426mm, A: 85mm, H: 88mm
T900L457DNLED42W4243 lm3000K CRI>80ON-OFF.L: 2278mm, A: 85mm, H: 88mm
DD900L456DNLED37W3713 lm3000K CRI>80DALI.L: 1994mm, A: 85mm, H: 88mm
DD900L458DNLED52W5304 lm3000K CRI>80DALI.L: 2846mm, A: 85mm, H: 88mm
DD900L460DNLED73W7426 lm3000K CRI>80DALI.L: 3982mm, A: 85mm, H: 88mm
T900L459DNLED63W6365 lm3000K CRI>80ON-OFF.L: 3414mm, A: 85mm, H: 88mm
T900L451DNLED11W1061 lm3000K CRI>80ON-OFF.L: 574mm, A: 85mm, H: 88mm
T900L452DNLED16W1591 lm3000K CRI>80ON-OFF.L: 858mm, A: 85mm, H: 88mm
DD900L451DNLED11W1061 lm3000K CRI>80DALI.L: 574mm, A: 85mm, H: 88mm
DD900L453DNLED21W2122 lm3000K CRI>80DALI.L: 1142mm, A: 85mm, H: 88mm
DD900L455DNLED32W3182 lm3000K CRI>80DALI.L: 1710mm, A: 85mm, H: 88mm
DD900L457DNLED42W4243 lm3000K CRI>80DALI.L: 2278mm, A: 85mm, H: 88mm
DD900L459DNLED63W6365 lm3000K CRI>80DALI.L: 3414mm, A: 85mm, H: 88mm
T900L453DNLED21W2122 lm3000K CRI>80ON-OFF.L: 1142mm, A: 85mm, H: 88mm
T900L454DNLED26W2652 lm3000K CRI>80ON-OFF.L: 1426mm, A: 85mm, H: 88mm
