D70/P-DD3NB84-GR

  • Download
  • Request Information

Product Info

Item code
BOXER D70 / D70/P-DD3NB84-GR
Category
Projectors
Environments
urban landscape, street lighting, façades and architectural works, industrial areas, places of worship
Mounting type
surface
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
GR | graphite satin finish
Option colors
AL | aluminium grey

Dimensions

Total device height (mm)
150
Total device width (mm)
150
Total device length (mm)
443
Weight (kg)
6

Optical System

Diffuser
Tempered glass shields.
Optical System
Optical system with PMMA lenses.
Beam
narrow
Emission
direct
Adjustable
Yes
Horizontal rotation
±45°
Vertical tilt
+90°/-60°

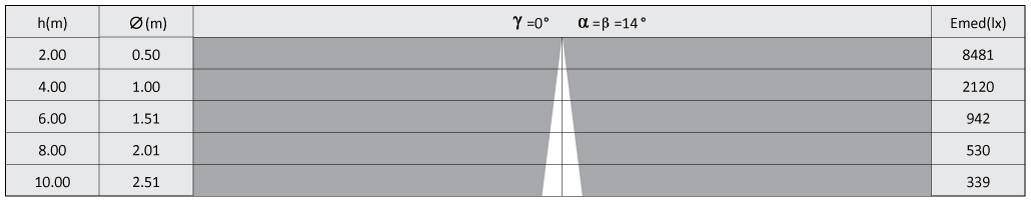

Photometrics

Total return LOR (%)100%

Sources

MacAdam
Step 2
Output Flux
4640 lm
Source type
LED COB
System power
62W
Temperature Colour
4000K CRI>80

Electrical

Ballast type
DALI.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cables with IP67 fast connectors.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Electrical

ACS/CR8

Fast connectors IP68 kit: male/female 2 poles, male/female 3 poles for dimmable devices with 2 separate cables.

ACS/FX04

3 ways IP68 wiring box for line-feed looping connection.

ACS/FX05

3 ways IP68 wiring box for DALI looping connection.

Mounting

ACS/LASER

Laser pointer.

Optical

D70/3-AF-GR

Adjustable flaps louver for BOXER 2 and 3 LED -GR GRAPHITE.

D70/3-HL

Honeycomb anti-glare louver for BOXER 2 and 3 LED.

D70/3-LD-GR

Diffused beam lens for BOXER 2 and 3 LED -GR GRAPHITE.

D70/3-VS-GR

Visor for BOXER 2 and 3 LED -GR GRAPHITE.
