BOXER D70Design by Habits

  • Request Information
HIGH FLUX MODULAR FLOODLIGHTS Castaldi Lighting celebrates his 80 years old experience in outdoor lighting with a new family of high flux floodlights. All the versions are based on compact modular boxes that allow to have a wide range of flux from 4000 lmto 15000 lm, for surface or pole mounting, and customizable for any special application. The most important innovation of Boxer is in the lighting technology: white and RGBW version, 6 optics and the new ZOS - Zoom On Site optical system to change the beam aperture during the installation without opening the product. Boxer is not just a projector, but a flexible solution for architectural and technical lighting in outdoor.

products (9)

16

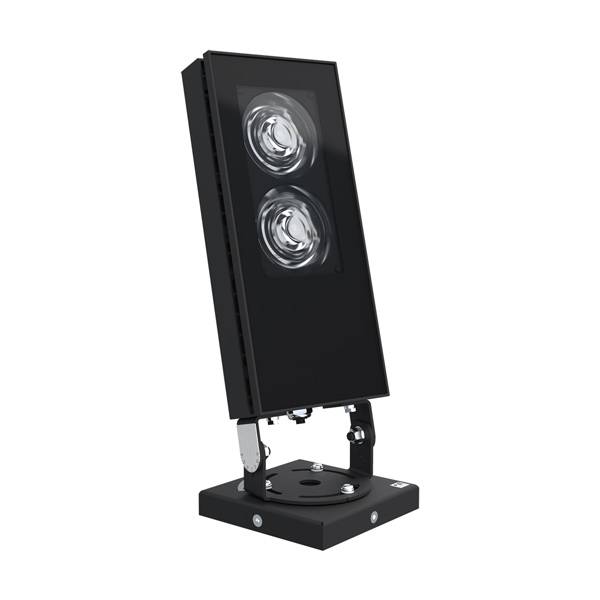

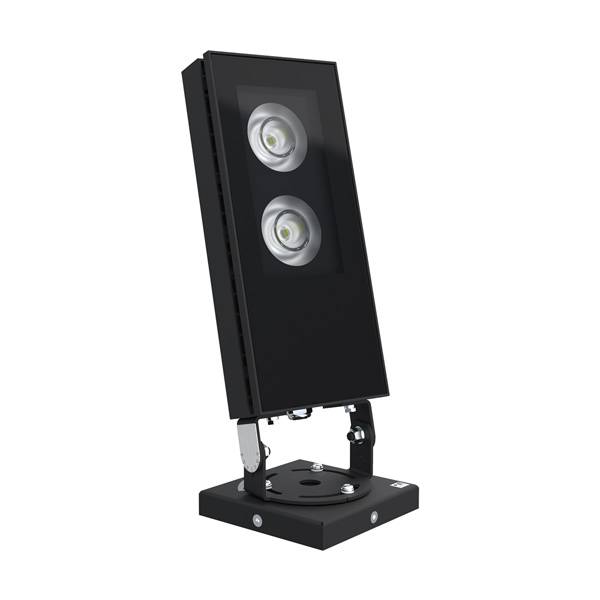

D70 BOXER PROJECTOR 2 LED
BOXER PROJECTOR 2 LED NB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD2NB83-GRLED COB40W3015 lm3000K CRI>80narrowDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2NB84-GRLED COB40W3093 lm4000K CRI>80narrowON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2NB83-GRLED COB40W3015 lm3000K CRI>80narrowON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD2NB84-GRLED COB40W3093 lm4000K CRI>80narrowDALI.L: 443mm, A: 150mm, H: 150mm

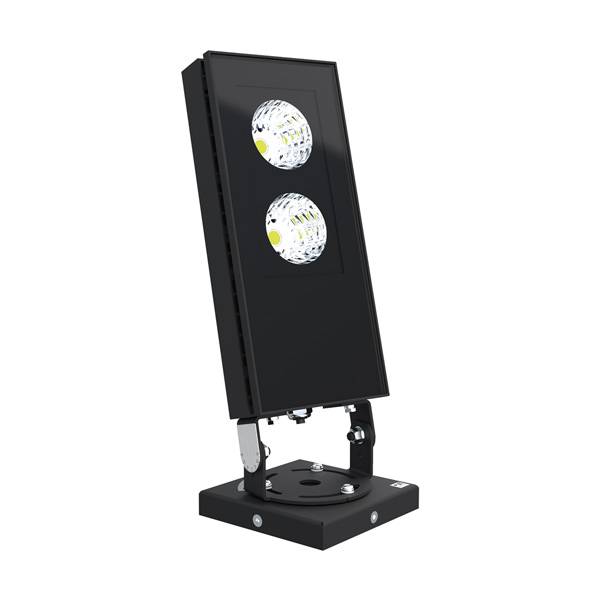

BOXER PROJECTOR 2 LED SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD2SB83-GRLED COB40W3896 lm3000K CRI>80mediumDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2SB84-GRLED COB40W3997 lm4000K CRI>80mediumON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2SB83-GRLED COB40W3896 lm3000K CRI>80mediumON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD2SB84-GRLED COB40W3997 lm4000K CRI>80mediumDALI.L: 443mm, A: 150mm, H: 150mm
BOXER PROJECTOR 2 LED MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD2MB83-GRLED COB40W4539 lm3000K CRI>80diffuseDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2MB84-GRLED COB40W4657 lm4000K CRI>80diffuseON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2MB83-GRLED COB40W4539 lm3000K CRI>80diffuseON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD2MB84-GRLED COB40W4657 lm4000K CRI>80diffuseDALI.L: 443mm, A: 150mm, H: 150mm

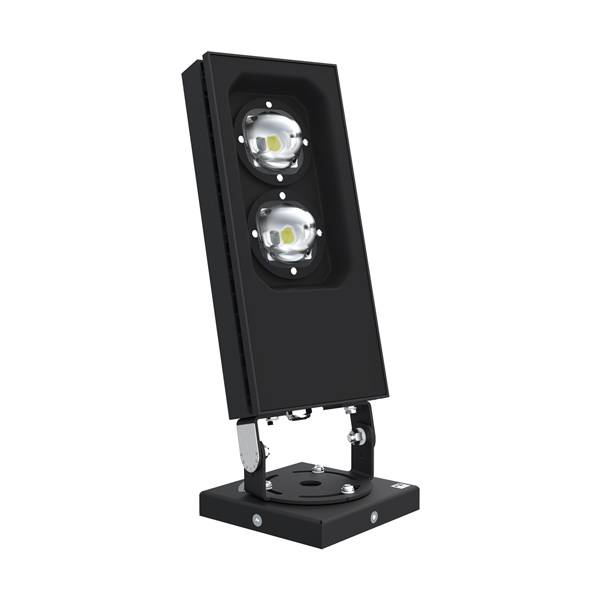

BOXER PROJECTOR 2 LED AS
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD2AS83-GRLED COB40W4906 lm3000K CRI>80asymmetricalDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2AS84-GRLED COB40W5033 lm4000K CRI>80asymmetricalON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL2AS83-GRLED COB40W4906 lm3000K CRI>80asymmetricalON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD2AS84-GRLED COB40W5033 lm4000K CRI>80asymmetricalDALI.L: 443mm, A: 150mm, H: 150mm
16

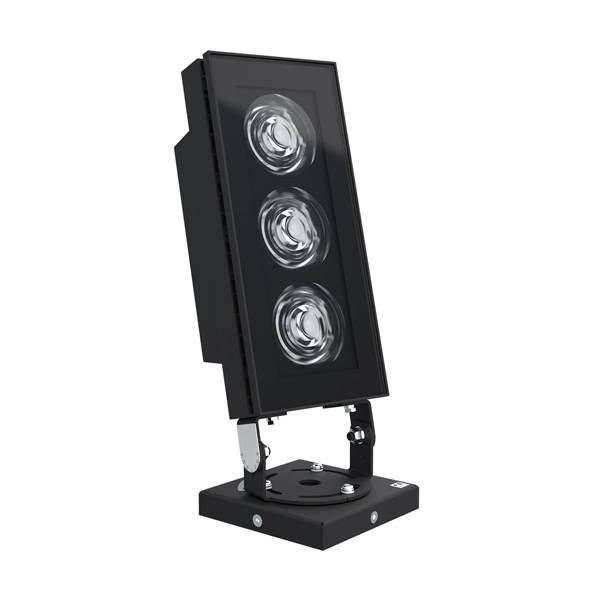

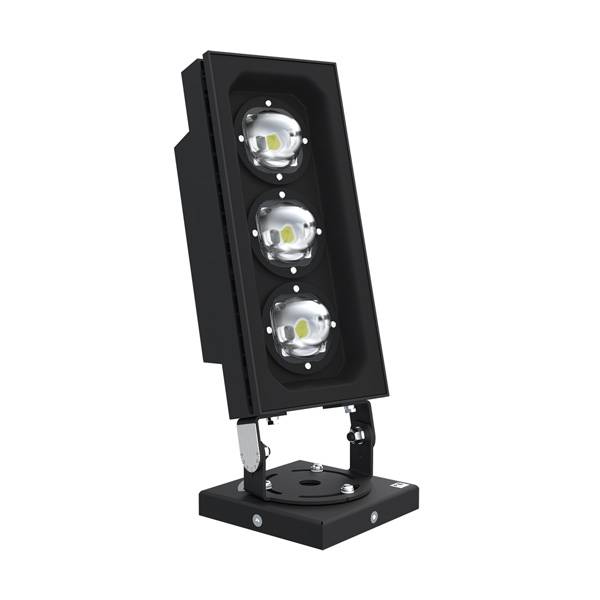

D70 BOXER PROJECTOR 3 LED
BOXER PROJECTOR 3 LED AS
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3AS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3AS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3AS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD3AS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalDALI.L: 443mm, A: 150mm, H: 150mm
BOXER PROJECTOR 3 LED NB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3NB83-GRLED COB62W4523 lm3000K CRI>80narrowDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3NB84-GRLED COB62W4640 lm4000K CRI>80narrowON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3NB83-GRLED COB62W4523 lm3000K CRI>80narrowON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD3NB84-GRLED COB62W4640 lm4000K CRI>80narrowDALI.L: 443mm, A: 150mm, H: 150mm

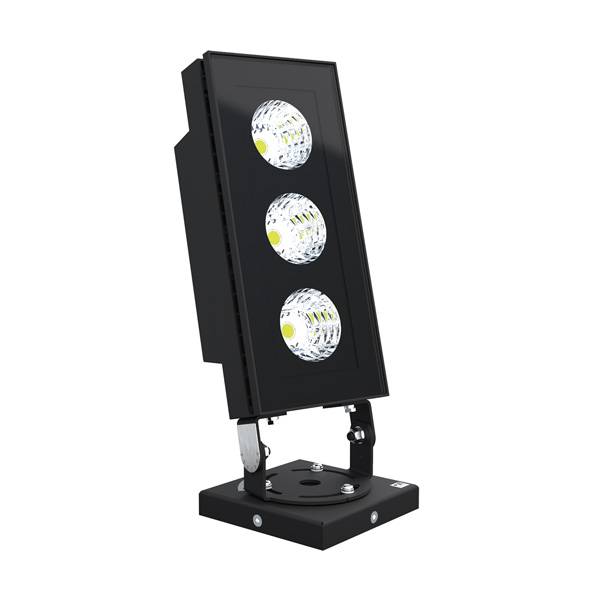

BOXER PROJECTOR 3 LED SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3SB83-GRLED COB62W5844 lm3000K CRI>80mediumDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3SB84-GRLED COB62W5996 lm4000K CRI>80mediumON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3SB83-GRLED COB62W5844 lm3000K CRI>80mediumON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD3SB84-GRLED COB62W5996 lm4000K CRI>80mediumDALI.L: 443mm, A: 150mm, H: 150mm
BOXER PROJECTOR 3 LED MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3MB83-GRLED COB62W6809 lm3000K CRI>80diffuseDALI.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3MB84-GRLED COB62W6985 lm4000K CRI>80diffuseON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-EL3MB83-GRLED COB62W6809 lm3000K CRI>80diffuseON-OFF.L: 443mm, A: 150mm, H: 150mm
D70/P-DD3MB84-GRLED COB62W6985 lm4000K CRI>80diffuseDALI.L: 443mm, A: 150mm, H: 150mm
2

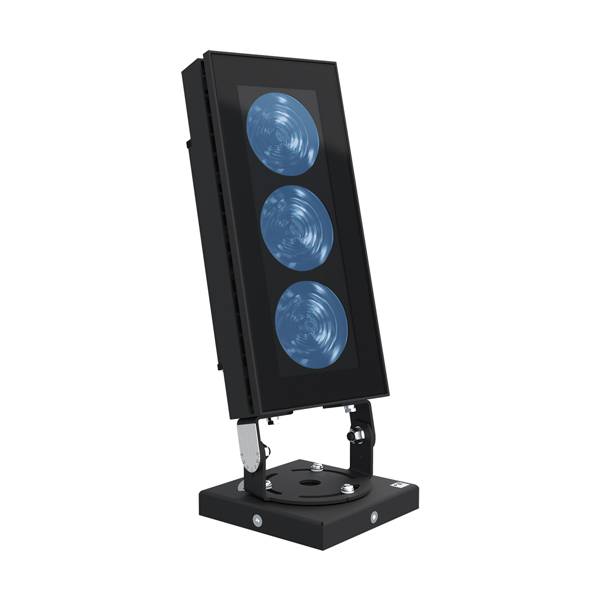

D70 BOXER PROJECTOR 3 LED RGBW
BOXER PROJECTOR 3 LED RGBW SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX3SBRGBW-GRLED RGBW49W1845 lm RGBWRGBWmediumDMX 16bit.L: 443mm, A: 150mm, H: 160mm
BOXER PROJECTOR 3 LED RGBW MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX3MBRGBW-GRLED RGBW49W1845 lm RGBWRGBWdiffuseDMX 16bit.L: 443mm, A: 150mm, H: 160mm
16

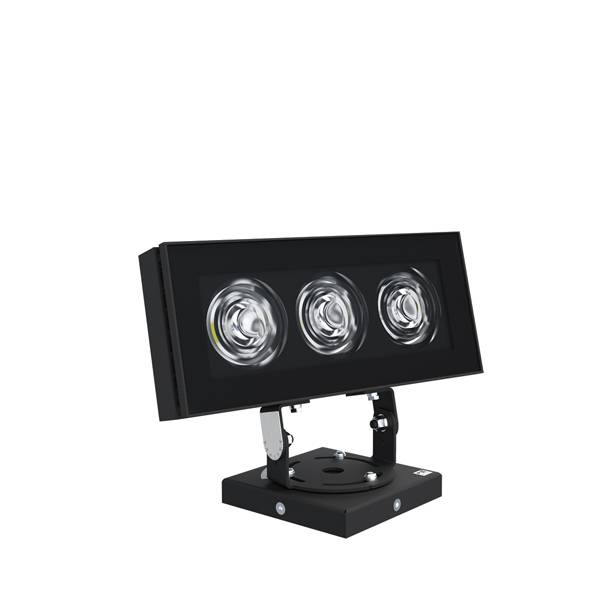

D70 BOXER HORIZONTAL PROJECTOR 3 LED
BOXER HORIZONTAL PROJECTOR 3 LED NB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3HNB83-GRLED COB62W4523 lm3000K CRI>80narrowDALI.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HNB84-GRLED COB62W4640 lm4000K CRI>80narrowON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HNB83-GRLED COB62W4523 lm3000K CRI>80narrowON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-DD3HNB84-GRLED COB62W4640 lm4000K CRI>80narrowDALI.L: 160mm, A: 340mm, H: 249mm

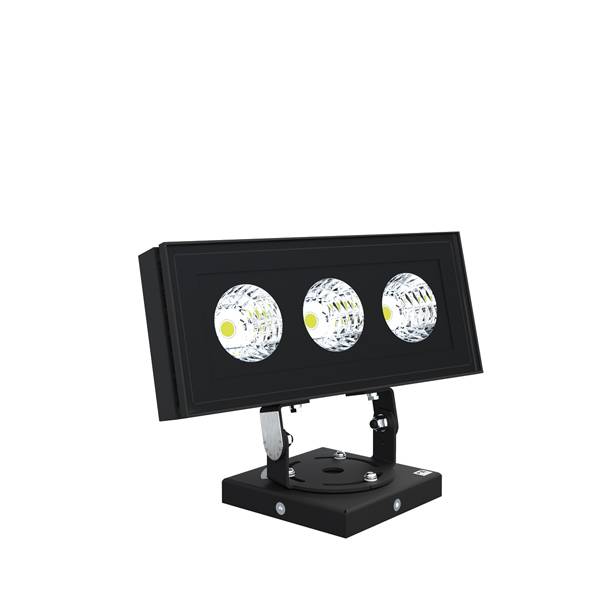

BOXER HORIZONTAL PROJECTOR 3 LED SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3HSB83-GRLED COB62W5844 lm3000K CRI>80mediumDALI.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HSB84-GRLED COB62W5996 lm4000K CRI>80mediumON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HSB83-GRLED COB62W5844 lm3000K CRI>80mediumON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-DD3HSB84-GRLED COB62W5996 lm4000K CRI>80mediumDALI.L: 160mm, A: 340mm, H: 249mm
BOXER HORIZONTAL PROJECTOR 3 LED MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3HMB83-GRLED COB62W6809 lm3000K CRI>80diffuseDALI.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HMB84-GRLED COB62W6985 lm4000K CRI>80diffuseON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HMB83-GRLED COB62W6809 lm3000K CRI>80diffuseON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-DD3HMB84-GRLED COB62W6985 lm4000K CRI>80diffuseDALI.L: 160mm, A: 340mm, H: 249mm

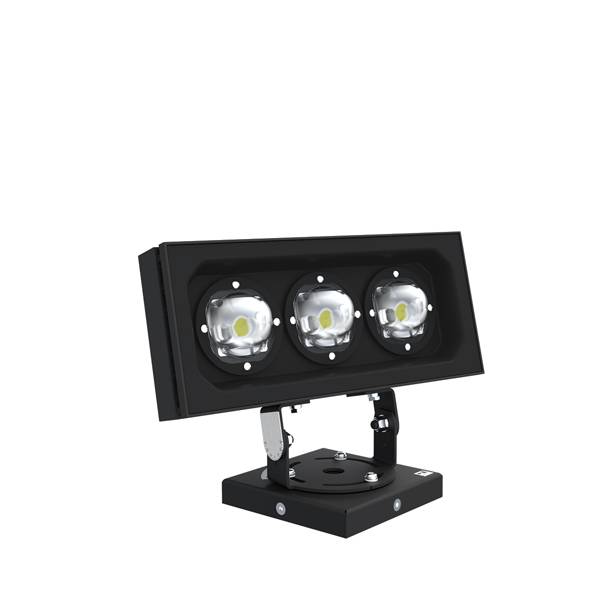

BOXER HORIZONTAL PROJECTOR 3 LED AS
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD3HAS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalDALI.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HAS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-EL3HAS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalON-OFF.L: 160mm, A: 340mm, H: 249mm
D70/P-DD3HAS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalDALI.L: 160mm, A: 340mm, H: 249mm
2

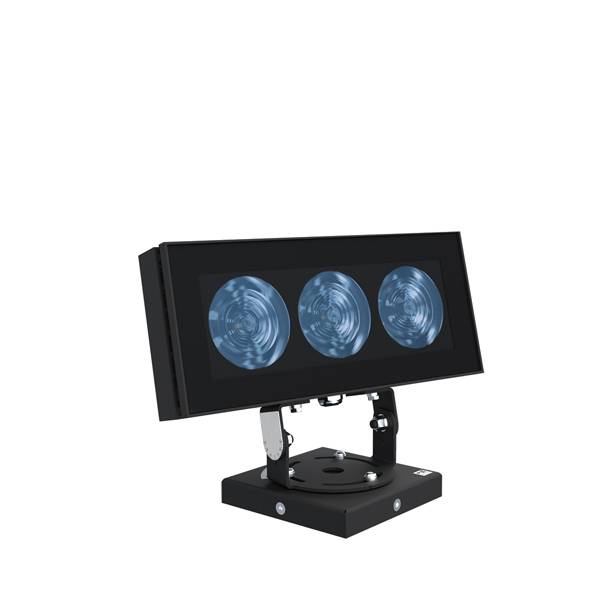

D70 BOXER HORIZONTAL PROJECTOR 3 LED RGBW
BOXER HORIZONTAL PROJECTOR 3 LED RGBW MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX3HMBRGBW-GRLED RGBW49W1845 lm RGBWRGBWdiffuseDMX 16bit.L: 160mm, A: 340mm, H: 249mm
BOXER HORIZONTAL PROJECTOR 3 LED RGBW SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX3HSBRGBW-GRLED RGBW49W1845 lm RGBWRGBWmediumDMX 16bit.L: 160mm, A: 340mm, H: 249mm
16

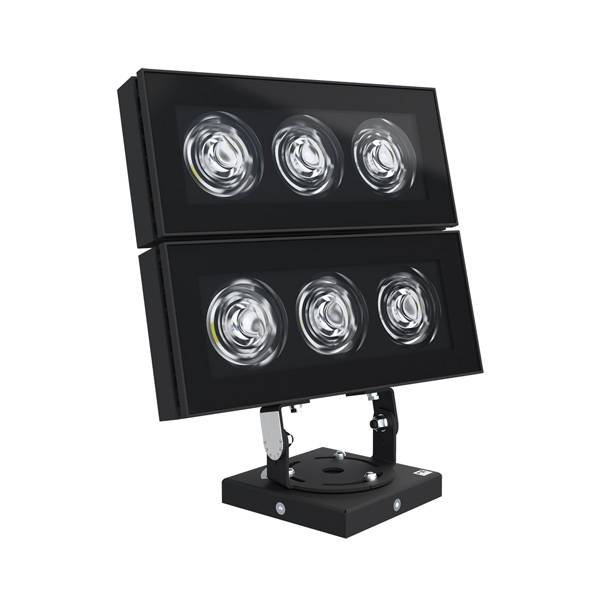

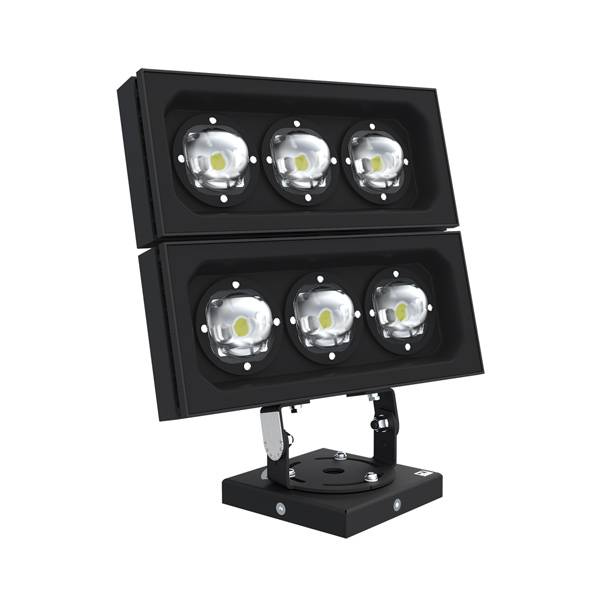

D70 BOXER HORIZONTAL PROJECTOR 6 LED

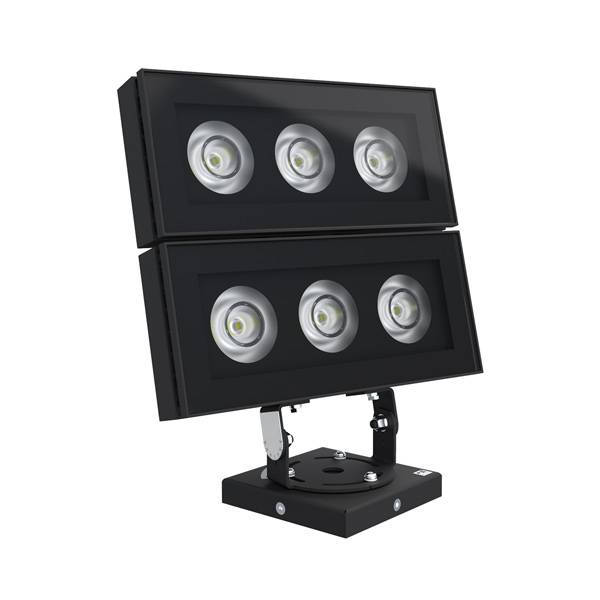

BOXER HORIZONTAL PROJECTOR 6 LED NB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD6HNB83-GRLED COB124W9045 lm3000K CRI>80narrowDALI.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HNB84-GRLED COB124W9280 lm4000K CRI>80narrowON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HNB83-GRLED COB124W9045 lm3000K CRI>80narrowON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-DD6HNB84-GRLED COB124W9280 lm4000K CRI>80narrowDALI.L: 408mm, A: 340mm, H: 150mm

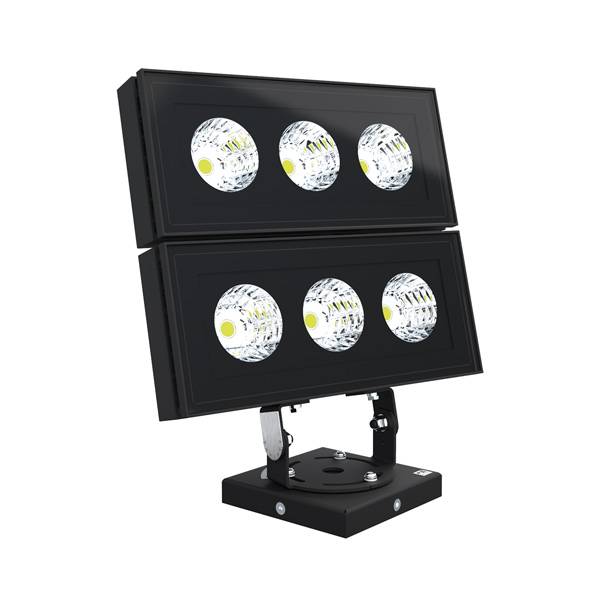

BOXER HORIZONTAL PROJECTOR 6 LED SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD6HSB83-GRLED COB124W11688 lm3000K CRI>80mediumDALI.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HSB84-GRLED COB124W11992 lm4000K CRI>80mediumON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HSB83-GRLED COB124W11688 lm3000K CRI>80mediumON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-DD6HSB84-GRLED COB124W11992 lm4000K CRI>80mediumDALI.L: 408mm, A: 340mm, H: 150mm
BOXER HORIZONTAL PROJECTOR 6 LED MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD6HMB83-GRLED COB124W13617 lm3000K CRI>80diffuseDALI.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HMB84-GRLED COB124W13971 lm4000K CRI>80diffuseON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HMB83-GRLED COB124W13617 lm3000K CRI>80diffuseON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-DD6HMB84-GRLED COB124W13971 lm4000K CRI>80diffuseDALI.L: 408mm, A: 340mm, H: 150mm
BOXER HORIZONTAL PROJECTOR 6 LED AS
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DD6HAS83-GRLED COB124W14718 lm3000K CRI>80asymmetricalDALI.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HAS84-GRLED COB124W15100 lm4000K CRI>80asymmetricalON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-EL6HAS83-GRLED COB124W14718 lm3000K CRI>80asymmetricalON-OFF.L: 408mm, A: 340mm, H: 150mm
D70/P-DD6HAS84-GRLED COB124W15100 lm4000K CRI>80asymmetricalDALI.L: 408mm, A: 340mm, H: 150mm
2

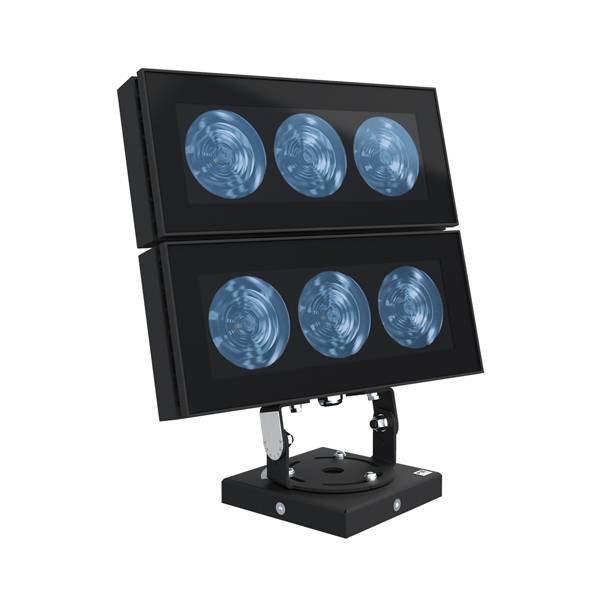

D70 BOXER HORIZONTAL PROJECTOR 6 LED RGBW
BOXER HORIZONTAL PROJECTOR 6 LED RGBW SB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX6HSBRGBW-GRLED RGBW95W3690 lm RGBWRGBWmediumDMX 16bit.L: 408mm, A: 340mm, H: 160mm
BOXER HORIZONTAL PROJECTOR 6 LED RGBW MB
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/P-DX6HMBRGBW-GRLED RGBW95W3690 lm RGBWRGBWdiffuseDMX 16bit.L: 408mm, A: 340mm, H: 160mm
8

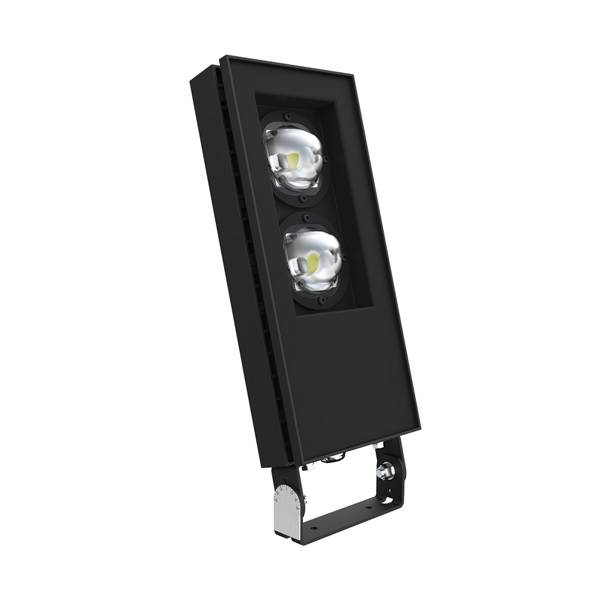

D70 BOXER STREET 2 LED
BOXER STREET 2 LED AS CLASS I
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-EL2AS84-GRLED COB40W5033 lm4000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
D70/S-EL2AS83-GRLED COB40W4906 lm3000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
BOXER STREET 2 LED AS CLASS II
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-2EL2AS84-GRLED COB40W5033 lm4000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
D70/S-2EL2AS83-GRLED COB40W4906 lm3000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
BOXER STREET 2 LED RA CLASS I
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-EL2RA84-GRLED COB40W5033 lm4000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
D70/S-EL2RA83-GRLED COB40W4906 lm3000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
BOXER STREET 2 LED RA CLASS II
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-2EL2RA84-GRLED COB40W5033 lm4000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
D70/S-2EL2RA83-GRLED COB40W4906 lm3000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 60mm
8

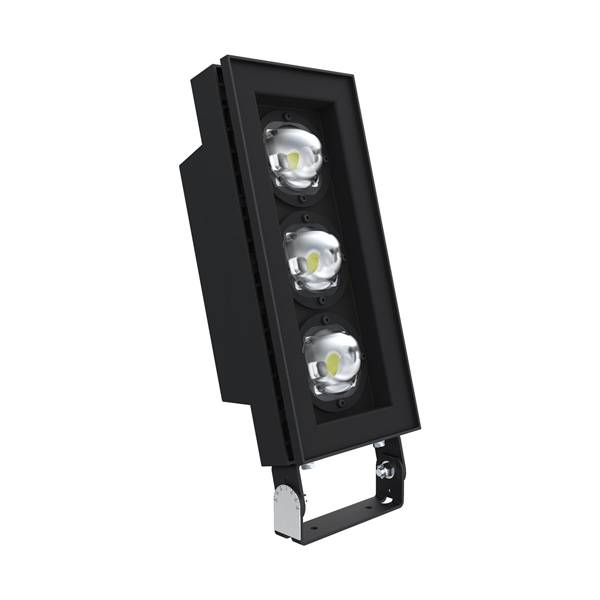

D70 BOXER STREET 3 LED
BOXER STREET 3 LED AS CLASS I
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-EL3AS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
D70/S-EL3AS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
BOXER STREET 3 LED AS CLASS II
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-2EL3AS84-GRLED COB62W7550 lm4000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
D70/S-2EL3AS83-GRLED COB62W7359 lm3000K CRI>80asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
BOXER STREET 3 LED RA CLASS I
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-EL3RA84-GRLED COB62W7550 lm4000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
D70/S-EL3RA83-GRLED COB62W7359 lm3000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
BOXER STREET 3 LED RA CLASS II
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
D70/S-2EL3RA84-GRLED COB62W7550 lm4000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
D70/S-2EL3RA83-GRLED COB62W7359 lm3000K CRI>80road asymmetricalON-OFF.L: 407mm, A: 150mm, H: 110mm
