D70/P-DD6HMB84-GR
Product Info
Item code
BOXER D70 / D70/P-DD6HMB84-GR
Category
Projectors
Environments
urban landscape, street lighting, façades and architectural works, industrial areas, places of worship
Mounting type
surface
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
GR | graphite satin finish
Option colors
AL | aluminium grey
Dimensions
Total device height (mm)
150
Total device width (mm)
340
Total device length (mm)
408
Weight (kg)
10.5
Optical System
Diffuser
Tempered glass shields.
Optical System
PC with aluminium coating reflector.
Beam
diffuse
Emission
direct
Adjustable
Yes
Horizontal rotation
±45°
Vertical tilt
+90°/-60°

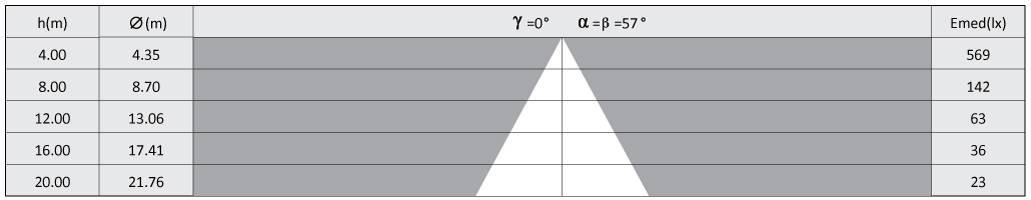

Photometrics
Total return LOR (%)100%
Sources
MacAdam
Step 2
Output Flux
13971 lm
Source type
LED COB
System power
124W
Temperature Colour
4000K CRI>80
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cables with IP67 fast connectors.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No
Optional Accessories
Electrical
ACS/CR8
Fast connectors IP68 kit: male/female 2 poles, male/female 3 poles for dimmable devices with 2 separate cables.
ACS/FX04
3 ways IP68 wiring box for line-feed looping connection.
ACS/FX05
3 ways IP68 wiring box for DALI looping connection.
Mounting
ACS/LASER
Laser pointer.
Optical
D70/3-HL
Honeycomb anti-glare louver for BOXER 2 and 3 LED.
D70/3-LD-GR
Diffused beam lens for BOXER 2 and 3 LED -GR GRAPHITE.
D70/6H-VS-GR
Visor for BOXER HORIZONTAL 6 LED -GR GRAPHITE.
D70/6H-AF-GR
Adjustable flaps louver for BOXER HORIZONTAL 6 LED -GR GRAPHITE.
