D70/P-EL6HSB83-GR

  • Download
  • Request Information

Product Info

Item code
BOXER D70 / D70/P-EL6HSB83-GR
Category
Projectors
Environments
urban landscape, street lighting, façades and architectural works, industrial areas, places of worship
Mounting type
surface
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
GR | graphite satin finish
Option colors
AL | aluminium grey

Dimensions

Total device height (mm)
150
Total device width (mm)
340
Total device length (mm)
408
Weight (kg)
10.5

Optical System

Diffuser
Tempered glass shields.
Optical System
PC with aluminium coating reflector.
Beam
medium
Emission
direct
Adjustable
Yes
Horizontal rotation
±45°
Vertical tilt
+90°/-60°

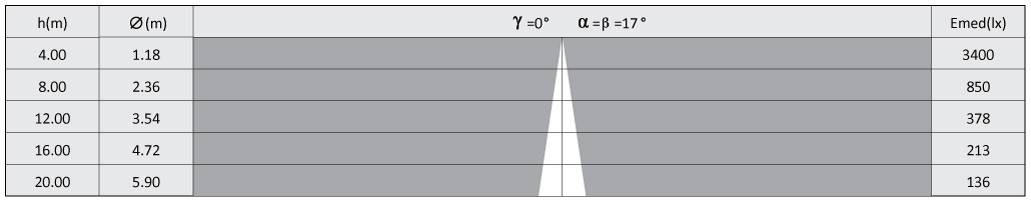

Photometrics

Total return LOR (%)100%

Sources

MacAdam
Step 2
Output Flux
11688 lm
Source type
LED COB
System power
124W
Temperature Colour
3000K CRI>80

Electrical

Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cable with IP67 fast connector.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Electrical

ACS/CR1

Fast IP68 connector 1bar (10m-1h) for cable Ø7-12mm - 3x1.5mm.

ACS/FX04

3 ways IP68 wiring box for line-feed looping connection.

Mounting

ACS/LASER

Laser pointer.

Optical

D70/3-HL

Honeycomb anti-glare louver for BOXER 2 and 3 LED.

D70/3-LD-GR

Diffused beam lens for BOXER 2 and 3 LED -GR GRAPHITE.

D70/6H-VS-GR

Visor for BOXER HORIZONTAL 6 LED -GR GRAPHITE.

D70/6H-AF-GR

Adjustable flaps louver for BOXER HORIZONTAL 6 LED -GR GRAPHITE.
