D70/S-2EL2RA84-GR

  • Download
  • Request Information

Product Info

Item code
BOXER D70 / D70/S-2EL2RA84-GR
Category
Pole mounted, Street light
Environments
urban landscape, street lighting
Mounting type
pole
Body
Corrosion resistant die-cast aluminium body.
Painting
Polyester powder coating, with a pluri-processed against corrosion (passed the exposure of over 1500 hours in a saline mist environment).
Screws
AISI 304 stainless steel screws.
Seals
Silicone Rubber.
Standard Colour
GR | graphite satin finish
Option colors
AL | aluminium grey

Dimensions

Total device height (mm)
60
Total device width (mm)
150
Total device length (mm)
407
Weight (kg)
5

Optical System

Optical System
Silicon high efficiency lenses.
Beam
road asymmetrical
Emission
direct
Adjustable
Yes
Vertical tilt
+90°/-60°

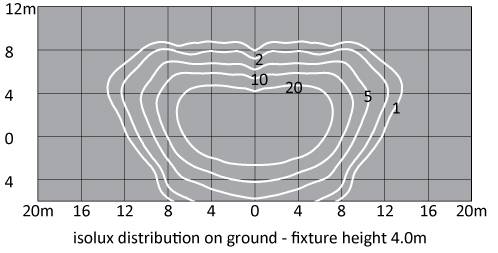

Photometrics

Total return LOR (%)100%

Sources

MacAdam
Step 2
Output Flux
5033 lm
Source type
LED COB
System power
40W
Temperature Colour
4000K CRI>80

Electrical

Ballast type
ON-OFF.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Line input
Complete with pre-wired and tested watertight H07RN-F cable with IP67 fast connector.
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
No
Emergency 3E
No

Optional Accessories

Pole

8PCA4060A531V-GR

Conical straight pole Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA6060C831V-GR

Conical straight pole Ø60mm, height above ground level 6m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PCA8060E831V-GR

Conical straight pole Ø60mm, height above ground level 8m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA50608931V-GR

Tapered straight pole Ø60mm, height above ground level 5m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PRA7060C731V-GR

Tapered straight pole Ø60mm, height above ground level 7m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

8PTA40608931V-GR

Cylindrical straight pole with tang Ø60mm, height above ground level 4m. Complete with shunt terminal block, inspection door and top cap. Hot zinc coated and painted. -GR GRAPHITE.

D43/P300-AL

Extruded anodyzed aluminum pole Ø60mm, height above ground level 3m -AL ALUMINIUM.

Optical

D70/3-AF-GR

Adjustable flaps louver for BOXER 2 and 3 LED -GR GRAPHITE.

D70/3-VS-GR

Visor for BOXER 2 and 3 LED -GR GRAPHITE.

Mounting

D70/S-GA-GR

Pole connection. Suitable for one or two fixtures Boxer D70 on conical or cylindrical poles with diameters from 60 to 76mm. Powder painting after passivation -GR GRAPHITE. AISI 304 stainless steel hardware.
