REY

  • Request Information

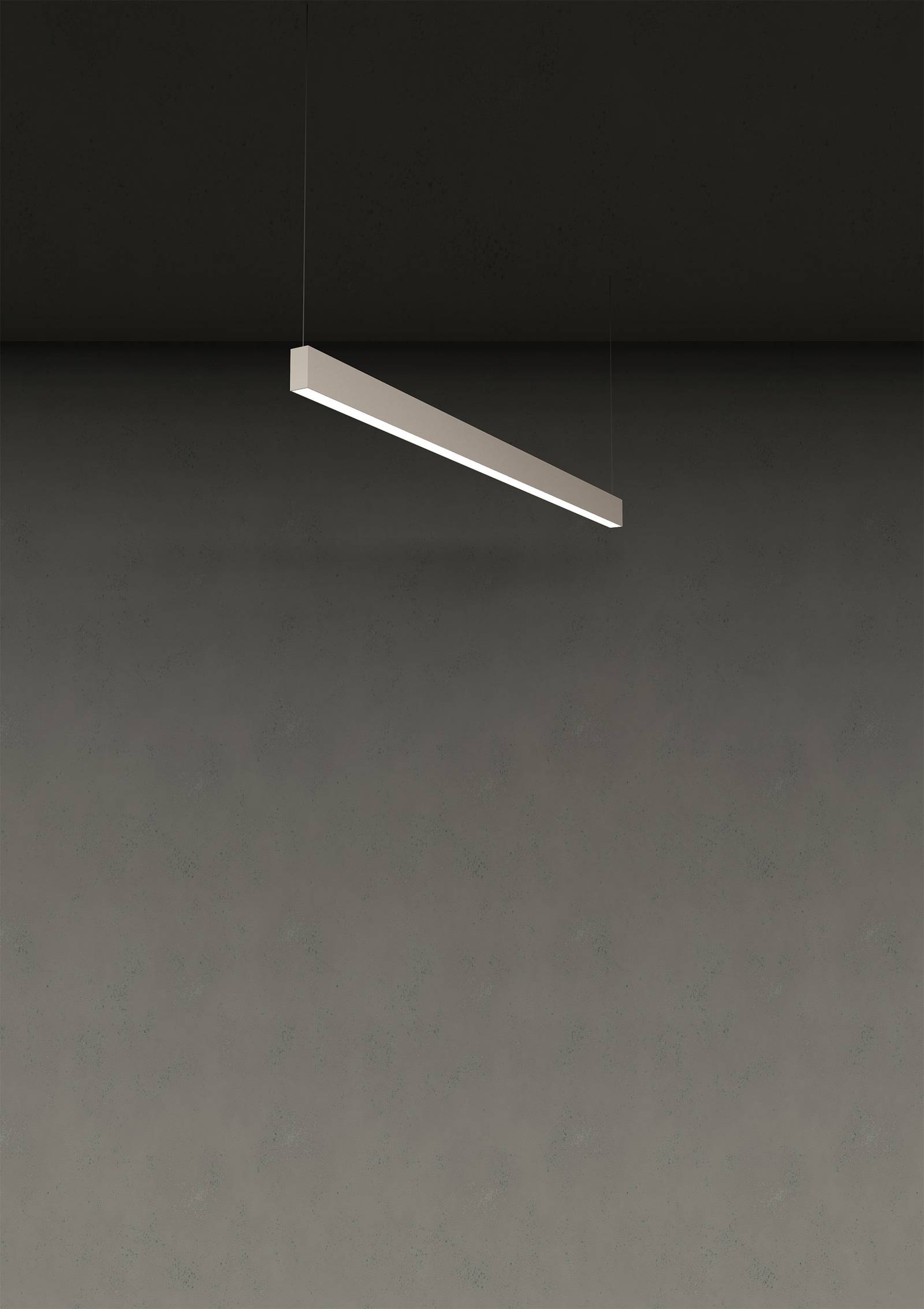

REY is a compact Linear system for office lighting. It is equipped with a new glare control technology developed by Castaldi: the new Full Dark optics UGR compliant from all directions. The range of optics has also been completed with single and double wall washer lenses, opal diffuser and indirect emission to cover all the lighting requirements in linear applications. REY can be installed to the ceiling, on walls or suspended, in single or multiple configuration.

products (6)

24

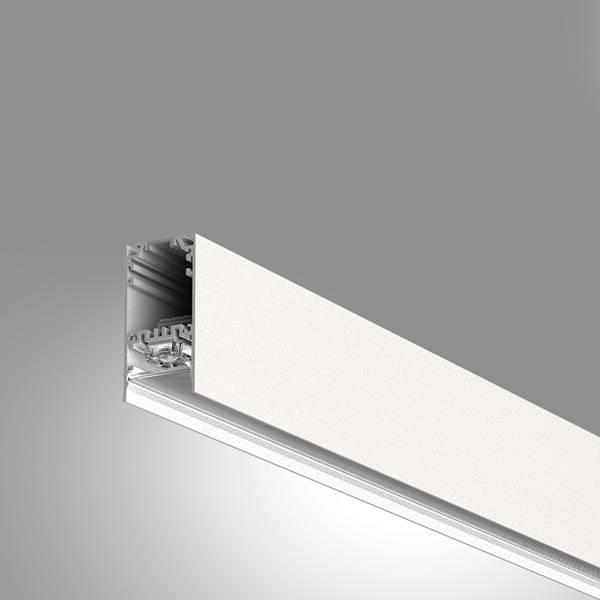

REY DIRECT DARK
REY DIRECT 20W/m DARK
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4212-141EL84DK-DNLED28W3247 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-056DD83DK-DNLED11W1239 lm3000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4212-226DD83DK-DNLED45W4957 lm3000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4212-141DD84DK-DNLED28W3247 lm4000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4212-056EL84DK-DNLED11W1299 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226EL84DK-DNLED45W5196 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
4212-141DD83DK-DNLED28W3098 lm3000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4212-056DD84DK-DNLED11W1299 lm4000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4212-056EL83DK-DNLED11W1239 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226DD84DK-DNLED45W5196 lm4000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4212-141EL83DK-DNLED28W3098 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-226EL83DK-DNLED45W4957 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT 30W/m DARK
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4214-141EL84DK-DNLED42W4871 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-056DD83DK-DNLED17W1859 lm3000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4214-226DD83DK-DNLED67W7436 lm3000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4214-141DD84DK-DNLED42W4871 lm4000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4214-056EL84DK-DNLED17W1948 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226EL84DK-DNLED67W7794 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
4214-141DD83DK-DNLED42W4647 lm3000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4214-056DD84DK-DNLED17W1948 lm4000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4214-056EL83DK-DNLED17W1859 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226DD84DK-DNLED67W7794 lm4000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4214-141EL83DK-DNLED42W4647 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-226EL83DK-DNLED67W7436 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
24

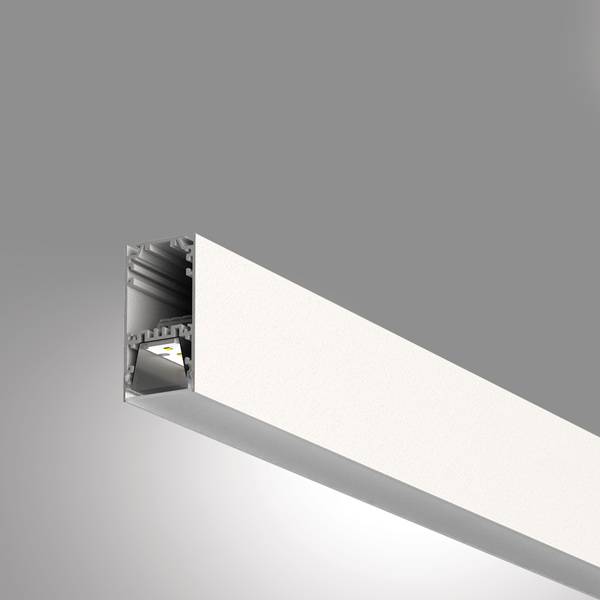

REY DIRECT OPAL
REY DIRECT 20W/m OPAL
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4212-141EL84OP-DNLED28W3081 lm4000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-056DD83OP-DNLED11W1176 lm3000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4212-226DD83OP-DNLED45W4704 lm3000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141DD84OP-DNLED28W3081 lm4000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056EL84OP-DNLED11W1233 lm4000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226EL84OP-DNLED45W4930 lm4000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
4212-141DD83OP-DNLED28W2940 lm3000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056DD84OP-DNLED11W1233 lm4000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4212-056EL83OP-DNLED11W1176 lm3000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226DD84OP-DNLED45W4930 lm4000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141EL83OP-DNLED28W2940 lm3000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-226EL83OP-DNLED45W4704 lm3000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT 40W/m OPAL
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4214-141EL84OP-DNLED56W6163 lm4000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-056DD83OP-DNLED22W2352 lm3000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4214-226DD83OP-DNLED90W9408 lm3000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141DD84OP-DNLED56W6163 lm4000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056EL84OP-DNLED22W2465 lm4000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226EL84OP-DNLED90W9861 lm4000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
4214-141DD83OP-DNLED56W5880 lm3000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056DD84OP-DNLED22W2465 lm4000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4214-056EL83OP-DNLED22W2352 lm3000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226DD84OP-DNLED90W9861 lm4000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141EL83OP-DNLED56W5880 lm3000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-226EL83OP-DNLED90W9408 lm3000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
24
REY DIRECT WALL WASHER
REY DIRECT 20W/m WALL WASHER
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4212-141EL84WS-DNLED28W3998 lm4000K CRI>80wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-056DD83WS-DNLED11W1526 lm3000K CRI>80wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4212-226DD83WS-DNLED45W6103 lm3000K CRI>80wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141DD84WS-DNLED28W3998 lm4000K CRI>80wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056EL84WS-DNLED11W1599 lm4000K CRI>80wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226EL84WS-DNLED45W6396 lm4000K CRI>80wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
4212-141DD83WS-DNLED28W3814 lm3000K CRI>80wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056DD84WS-DNLED11W1599 lm4000K CRI>80wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4212-056EL83WS-DNLED11W1526 lm3000K CRI>80wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226DD84WS-DNLED45W6396 lm4000K CRI>80wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141EL83WS-DNLED28W3814 lm3000K CRI>80wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-226EL83WS-DNLED45W6103 lm3000K CRI>80wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT 40W/m WALL WASHER
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4214-141EL84WS-DNLED56W7996 lm4000K CRI>80wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-056DD83WS-DNLED22W3051 lm3000K CRI>80wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4214-226DD83WS-DNLED90W12206 lm3000K CRI>80wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141DD84WS-DNLED56W7996 lm4000K CRI>80wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056EL84WS-DNLED22W3198 lm4000K CRI>80wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226EL84WS-DNLED90W12793 lm4000K CRI>80wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
4214-141DD83WS-DNLED56W7628 lm3000K CRI>80wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056DD84WS-DNLED22W3198 lm4000K CRI>80wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4214-056EL83WS-DNLED22W3051 lm3000K CRI>80wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226DD84WS-DNLED90W12793 lm4000K CRI>80wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141EL83WS-DNLED56W7628 lm3000K CRI>80wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-226EL83WS-DNLED90W12206 lm3000K CRI>80wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
24

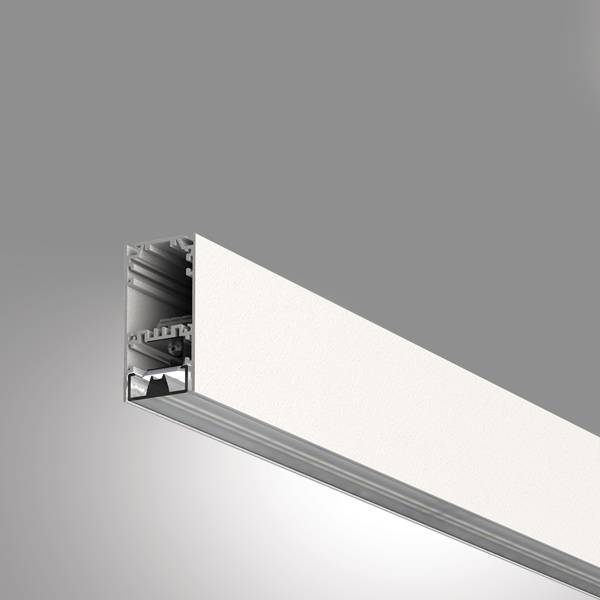

REY DIRECT DOUBLE WALL WASHER
REY DIRECT 20W/m DOUBLE WALL WASHER
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4212-141EL842WS-DNLED28W4128 lm4000K CRI>80double wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-056DD832WS-DNLED11W1575 lm3000K CRI>80double wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4212-226DD832WS-DNLED45W6302 lm3000K CRI>80double wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141DD842WS-DNLED28W4128 lm4000K CRI>80double wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056EL842WS-DNLED11W1651 lm4000K CRI>80double wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226EL842WS-DNLED45W6605 lm4000K CRI>80double wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
4212-141DD832WS-DNLED28W3939 lm3000K CRI>80double wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4212-056DD842WS-DNLED11W1651 lm4000K CRI>80double wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4212-056EL832WS-DNLED11W1575 lm3000K CRI>80double wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4212-226DD842WS-DNLED45W6605 lm4000K CRI>80double wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4212-141EL832WS-DNLED28W3939 lm3000K CRI>80double wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4212-226EL832WS-DNLED45W6302 lm3000K CRI>80double wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT 40W/m DOUBLE WALL WASHER
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4214-141EL842WS-DNLED56W8256 lm4000K CRI>80double wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-056DD832WS-DNLED22W3151 lm3000K CRI>80double wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4214-226DD832WS-DNLED90W12604 lm3000K CRI>80double wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141DD842WS-DNLED56W8256 lm4000K CRI>80double wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056EL842WS-DNLED22W3303 lm4000K CRI>80double wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226EL842WS-DNLED90W13210 lm4000K CRI>80double wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
4214-141DD832WS-DNLED56W7877 lm3000K CRI>80double wall washerDALI.L: 1415mm, A: 38mm, H: 75mm
4214-056DD842WS-DNLED22W3303 lm4000K CRI>80double wall washerDALI.L: 566mm, A: 38mm, H: 75mm
4214-056EL832WS-DNLED22W3151 lm3000K CRI>80double wall washerON-OFF.L: 566mm, A: 38mm, H: 75mm
4214-226DD842WS-DNLED90W13210 lm4000K CRI>80double wall washerDALI.L: 2264mm, A: 38mm, H: 75mm
4214-141EL832WS-DNLED56W7877 lm3000K CRI>80double wall washerON-OFF.L: 1415mm, A: 38mm, H: 75mm
4214-226EL832WS-DNLED90W12604 lm3000K CRI>80double wall washerON-OFF.L: 2264mm, A: 38mm, H: 75mm
24

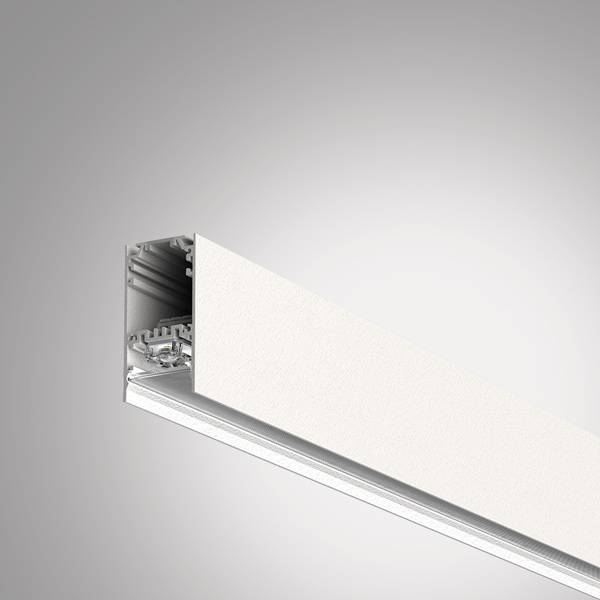

REY DIRECT/INDIRECT DARK
REY DIRECT/INDIRECT 30W/m DARK
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4213-141EL84DK-DNLED42W4759 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4213-056DD83DK-DNLED17W1788 lm3000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4213-226DD83DK-DNLED67W7152 lm3000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4213-141DD84DK-DNLED42W4759 lm4000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4213-056EL84DK-DNLED17W1904 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4213-226EL84DK-DNLED67W7615 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
4213-141DD83DK-DNLED42W4470 lm3000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4213-056DD84DK-DNLED17W1904 lm4000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4213-056EL83DK-DNLED17W1788 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4213-226DD84DK-DNLED67W7615 lm4000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4213-141EL83DK-DNLED42W4470 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4213-226EL83DK-DNLED67W7152 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT/INDIRECT 40W/m DARK
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4215-141EL84DK-DNLED56W6383 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4215-056DD83DK-DNLED22W2408 lm3000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4215-226DD83DK-DNLED90W9631 lm3000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4215-141DD84DK-DNLED56W6383 lm4000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4215-056EL84DK-DNLED22W2553 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4215-226EL84DK-DNLED90W10213 lm4000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
4215-141DD83DK-DNLED56W6019 lm3000K CRI>80diffuse UGR<19DALI.L: 1415mm, A: 38mm, H: 75mm
4215-056DD84DK-DNLED22W2553 lm4000K CRI>80diffuse UGR<19DALI.L: 566mm, A: 38mm, H: 75mm
4215-056EL83DK-DNLED22W2408 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 566mm, A: 38mm, H: 75mm
4215-226DD84DK-DNLED90W10213 lm4000K CRI>80diffuse UGR<19DALI.L: 2264mm, A: 38mm, H: 75mm
4215-141EL83DK-DNLED56W6019 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 1415mm, A: 38mm, H: 75mm
4215-226EL83DK-DNLED90W9631 lm3000K CRI>80diffuse UGR<19ON-OFF.L: 2264mm, A: 38mm, H: 75mm
24

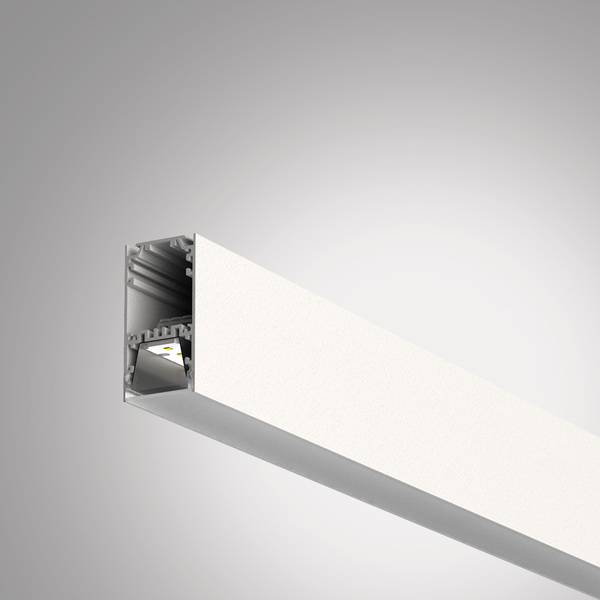

REY DIRECT/INDIRECT OPAL
REY DIRECT/INDIRECT 30W/m OPAL
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4213-141EL84OP-DNLED42W4593 lm4000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4213-056DD83OP-DNLED17W1725 lm3000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4213-226DD83OP-DNLED67W6899 lm3000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4213-141DD84OP-DNLED42W4593 lm4000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4213-056EL84OP-DNLED17W1837 lm4000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4213-226EL84OP-DNLED67W7350 lm4000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
4213-141DD83OP-DNLED42W4312 lm3000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4213-056DD84OP-DNLED17W1837 lm4000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4213-056EL83OP-DNLED17W1725 lm3000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4213-226DD84OP-DNLED67W7350 lm4000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4213-141EL83OP-DNLED42W4312 lm3000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4213-226EL83OP-DNLED67W6899 lm3000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
REY DIRECT/INDIRECT 50W/m OPAL
Item codeSource typeSystem powerOutput FluxTemperature ColourBeamBallast typeDimensions
4215-141EL84OP-DNLED70W7675 lm4000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4215-056DD83OP-DNLED28W2901 lm3000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4215-226DD83OP-DNLED112W11603 lm3000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4215-141DD84OP-DNLED70W7675 lm4000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4215-056EL84OP-DNLED28W3070 lm4000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4215-226EL84OP-DNLED112W12280 lm4000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
4215-141DD83OP-DNLED70W7252 lm3000K CRI>80diffuseDALI.L: 1415mm, A: 38mm, H: 75mm
4215-056DD84OP-DNLED28W3070 lm4000K CRI>80diffuseDALI.L: 566mm, A: 38mm, H: 75mm
4215-056EL83OP-DNLED28W2901 lm3000K CRI>80diffuseON-OFF.L: 566mm, A: 38mm, H: 75mm
4215-226DD84OP-DNLED112W12280 lm4000K CRI>80diffuseDALI.L: 2264mm, A: 38mm, H: 75mm
4215-141EL83OP-DNLED70W7252 lm3000K CRI>80diffuseON-OFF.L: 1415mm, A: 38mm, H: 75mm
4215-226EL83OP-DNLED112W11603 lm3000K CRI>80diffuseON-OFF.L: 2264mm, A: 38mm, H: 75mm
