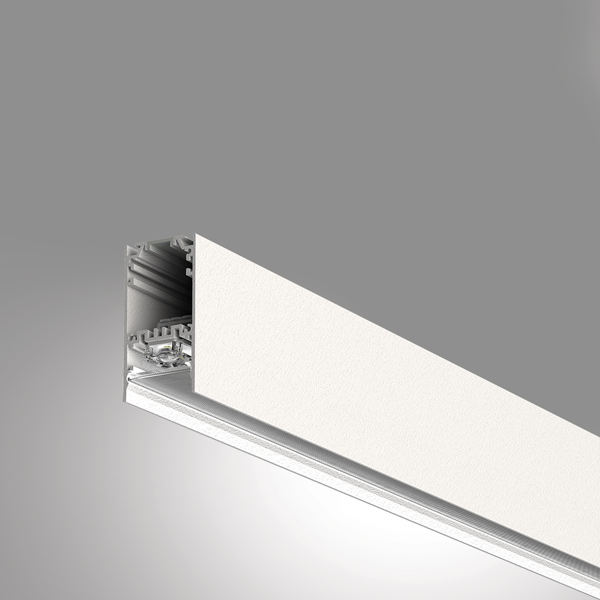

4214-056DD83DK-DN
Product Info
Item code
REY / 4214-056DD83DK-DN
Category
Linear effects, Ceiling, Suspension, Linear effects, Ceiling, Suspension
Environments
hallway, conference hall, art and culture, office, leisure areas, retail areas, study areas, health care
Mounting type
ceiling surface
Body
Housing made of extruded aluminium powder-coated.
Painting
Powder painting after passivation.
Wiring
Electrical harness wired for 220-240V-AC 50-60Hz power supply. DALI dimmable electronic ballast. Internal through wiring, maximum load 1100W.
Standard Colour
DN | embossed white
Dimensions
Total device height (mm)
75
Total device width (mm)
38
Total device length (mm)
566
Weight (kg)
1.2
Optical System
Optical System
Dark beam to all directions, double step optical system with 360° glare control, composed by linear individual lenses for light shaping and prismatic screen creating a uniform emitting surface.
Beam
diffuse UGR<19
Emission
direct
Adjustable
No
Photometrics
Return DOWN LOR (%)100%
Total return LOR (%)100%
UGR cross19
UGR longitudinal19
Sources
MacAdam
Step 2
Output Flux
1859 lm
Source type
LED
System power
17W
Temperature Colour
3000K CRI>80
Electrical
Ballast type
DALI.
Frequency
50-60Hz
Lifetime
60.000h L90B10 (Ta=25°C)
Mounting ballast type
Integral
Voltage
220-240V
Separate ignition
No
Emergency 1E
Yes
Emergency 3E
No
Optional Accessories
Mounting
4200-CB
Ceiling mounting kit (pair of brackets; one bracket every 1.5 mt.).
4200-DDCR2-DN
Electrified ceiling rose with a 5x1mm² clear power cable L=2000mm -DN WHITE.
4200-EC-DN
End caps (2 pcs. with hardware). -DN WHITE
4200-JK
Joints and alignment kit for continuous row. DN white
4200-SK2
Suspension kit including a L=2000mm steel cable, spring adjuster and ceiling rose with nickel ogive.
4200-WB-DN
Wall mounting brackets (2 pcs.).
4200-S-004
90° extrusion connection kit
